M8H-3 / M8HC-3
Double-Balanced Mixer
Rev. V3
Features
LO 2 TO 6 GHz
RF 3.7 TO 4.2 GHz
IF DC TO 2 GHz
LO DRIVE: +7 dBm (NOMINAL)
HIGH ISOLATION: 40 dB (TYP.)
Product Image
Description
The M8H-3 is a double balanced mixer, designed for use in
military, commercial and test equipment applications. The design
utilizes Schottky ring quad diodes and broadband soft dielectric
and ferrite baluns to attain excellent performance. This mixer can
also be used as a phase detector and/or bi-phase modulator since
the IF port is DC coupled to the diodes. The use of high
temperature solder and welded assembly processes used
internally makes it ideal for use in manual, semi-automated
assembly. Environmental screening available to MIL-STD-883,
MIL-STD-202, or MIL-DTL-28837, consult factory.
Ordering Information
Part Number
M8H-3
M8HC-3

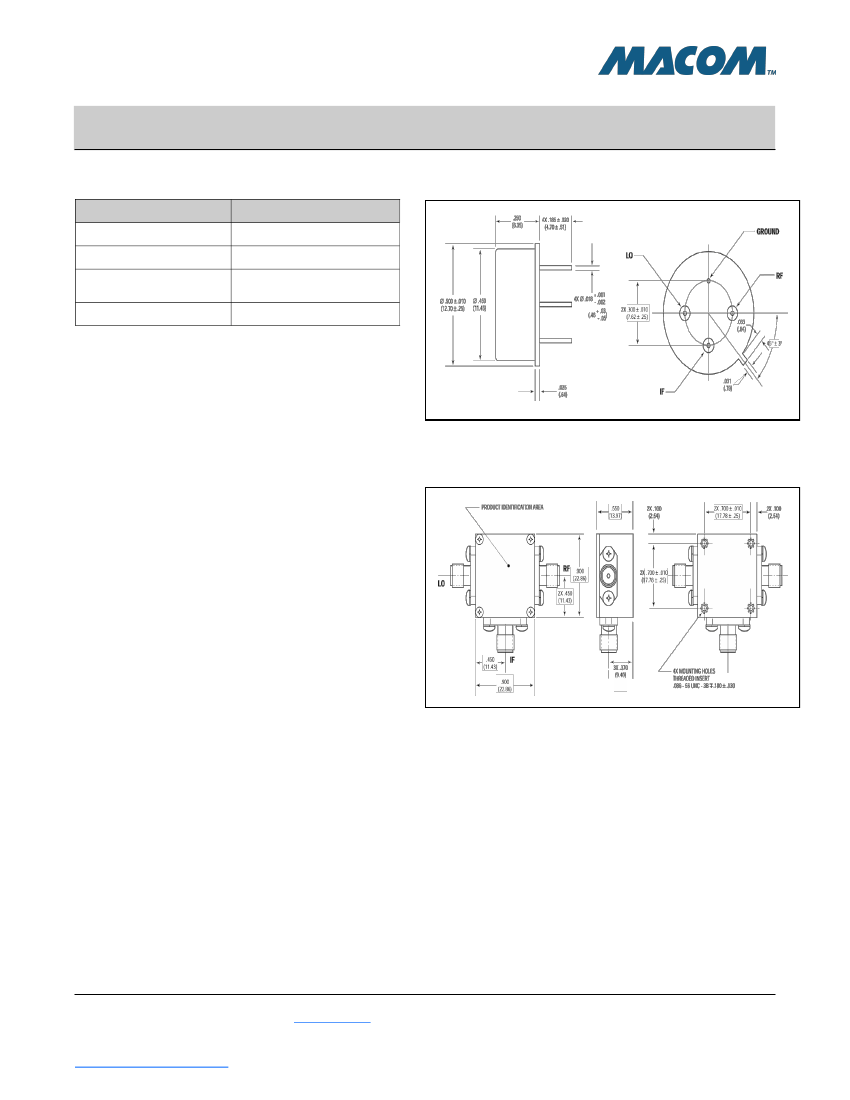

Package
TO-8
SMA Connectorized
Electrical Specifications: Z
0
= 50 Lo = +7 dBm (Downconverter Application only)
Typical
Parameter
Test Conditions
Units
25ºC
0º to 50ºC
-54º to +85ºC
Guaranteed

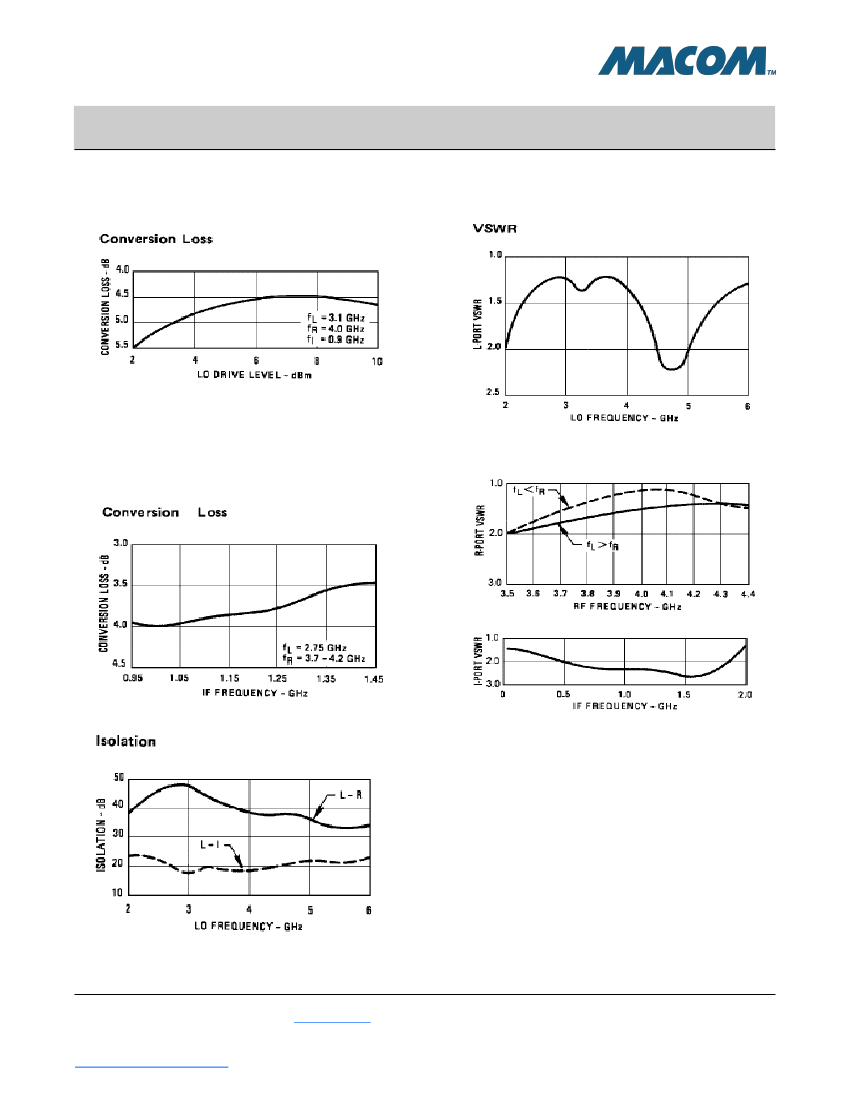

SSB Conversion Loss &
SSB Noise Figure (max)
fR=3.7 to 4.2 GHz, fL=2 to 6 GHz, fI=0.03 to 2 GHz
dB
5.0
7.0
7.5
Isolation, L to R (min)
fL = 2 to 4 GHz
fL = 4 to 6 GHz
dB
dB
42
37
32
25
30
23
Isolation, L to I (min)
1 dB Conversion
Compression
Input IP3
1
fL = 2 to 6 GHz
fL @ +7 dBm
dB
21
16
14
dBm
+0
dBm
+13
