L424EDT: DescriptionSingle Color LED, Orange, Diffused, T-1, 3mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size179KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L424EDT Overview

Single Color LED, Orange, Diffused, T-1, 3mm, ROHS COMPLIANT PACKAGE-2

L424EDT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	IC COMPATIBLE, HIGH RELIABILITY
color	ORANGE
color@wavelength	Orange
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Lens type	DIFFUSED
minimum luminous intensity	100 cd
Nominal luminous intensity	5.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	6 mm
method of packing	TAPE AND REEL
peak wavelength	627 nm
Maximum reverse voltage	5 V
shape	CYLINDRICAL
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	100 deg
Base Number Matches	1

Preview

Download Datasheet

View All

T-1 (3mm) CYLINDRICAL LED LAMPS

Features

CYLINDRICAL TYPE, TOP DIFFUSED.

LOW POWER CONSUMPTION.

I.C. COMPATIBLE.

RELIABLE AND RUGGED.

LONG LIFE - SOLID STATE RELIABILITY.

AVAILABLE ON TAPE AND REEL.

L424HDT BRIGHT RED

L424IDT HIGH EFFICIENCY RED

L424SRDT SUPER BRIGHT RED

L424GDT GREEN

L424EDT ORANGE

L424YDT YELLOW

Package Dimensions

Description

The Bright Red source color devices are made with Gallium

Phosphide Red Light Emitting Diode.

The High Efficiency Red and Orange source color devices

are made with Gallium Arsenide Phosphide on Gallium

Phosphide Orange Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made

with Gallium Aluminum Arsenide Red Light Emitting Diode.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subjected to change without notice.

Selection Guide

Par t No .

Di c e

L en s Ty p e

Iv (mc d )

@ 10 mA

Min .

L424HDT

L424IDT

L424EDT

L424GDT

L424YDT

L424SRDT

BRIGHT RED (GaP)

HIGH EFFICIENCY RED (GaAsP/GaP)

ORANGE (GaAsP/GaP)

GREEN (GaP)

YELLOW (GaAsP/GaP)

SUPER BRIGHT RED (GaAlAs)

RED DIFFUSED

ORANGE DIFFUSED

GREEN DIFFUSED

YELLOW DIFFUSED

RED DIFFUSED

0.5

1.3

*40

Ty p .

*80

View in g

An g l e

2θ1/2

100°

Notes:

θ1/2

is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

2. * Luminous intensity with asterisk is measured at 20mA.

SPEC NO: DSAA0206

REV NO: V.1

DATE: MAR/13/2001

PAGE: 1 OF 5

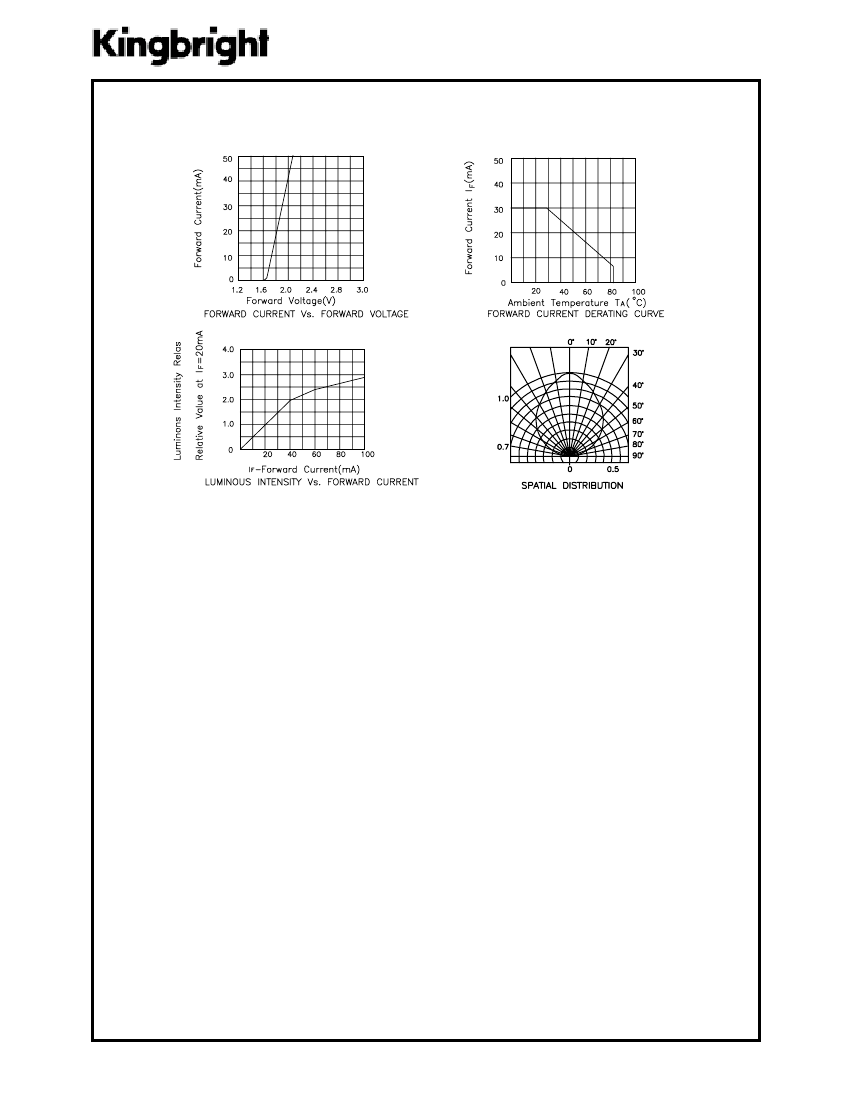

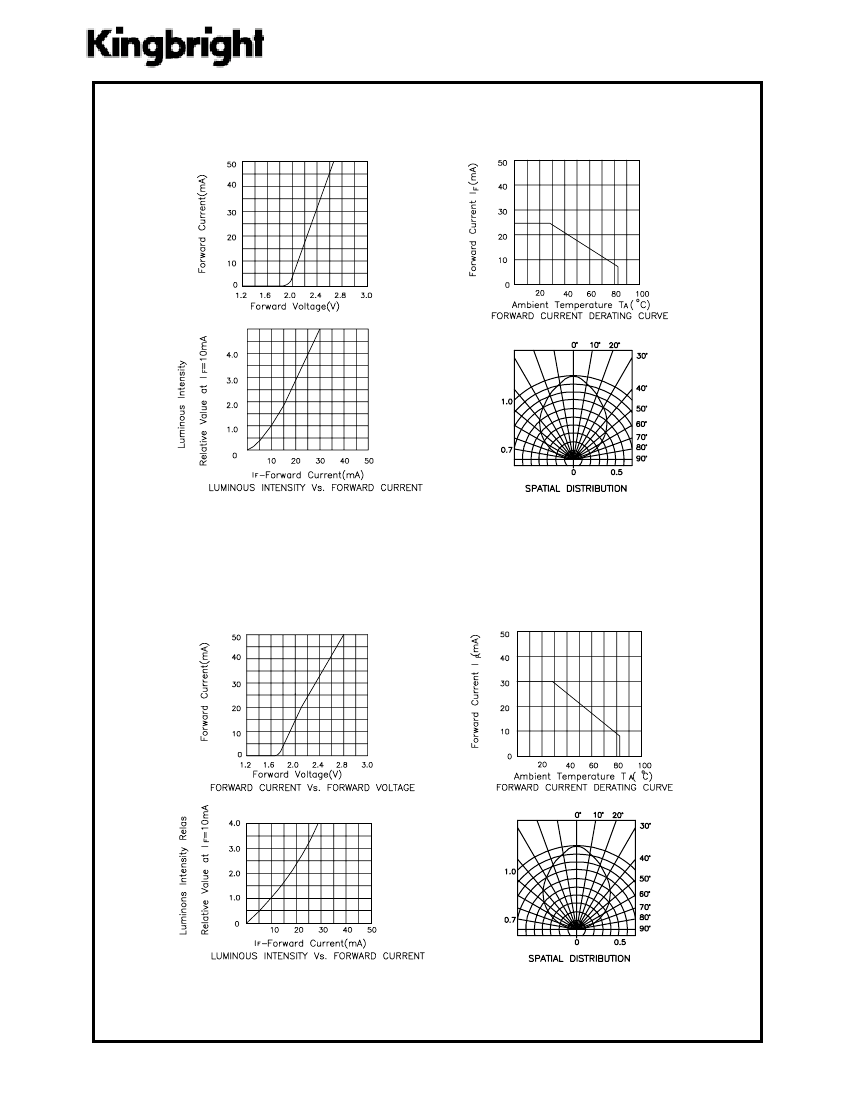

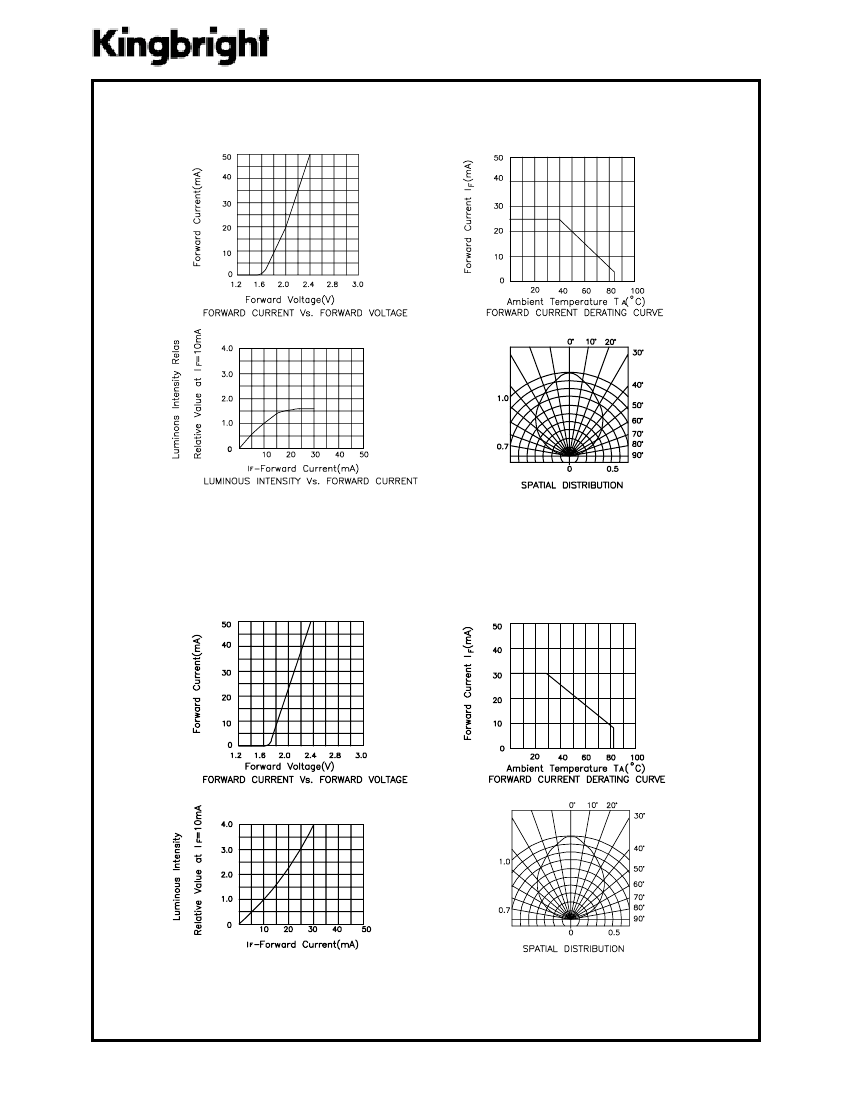

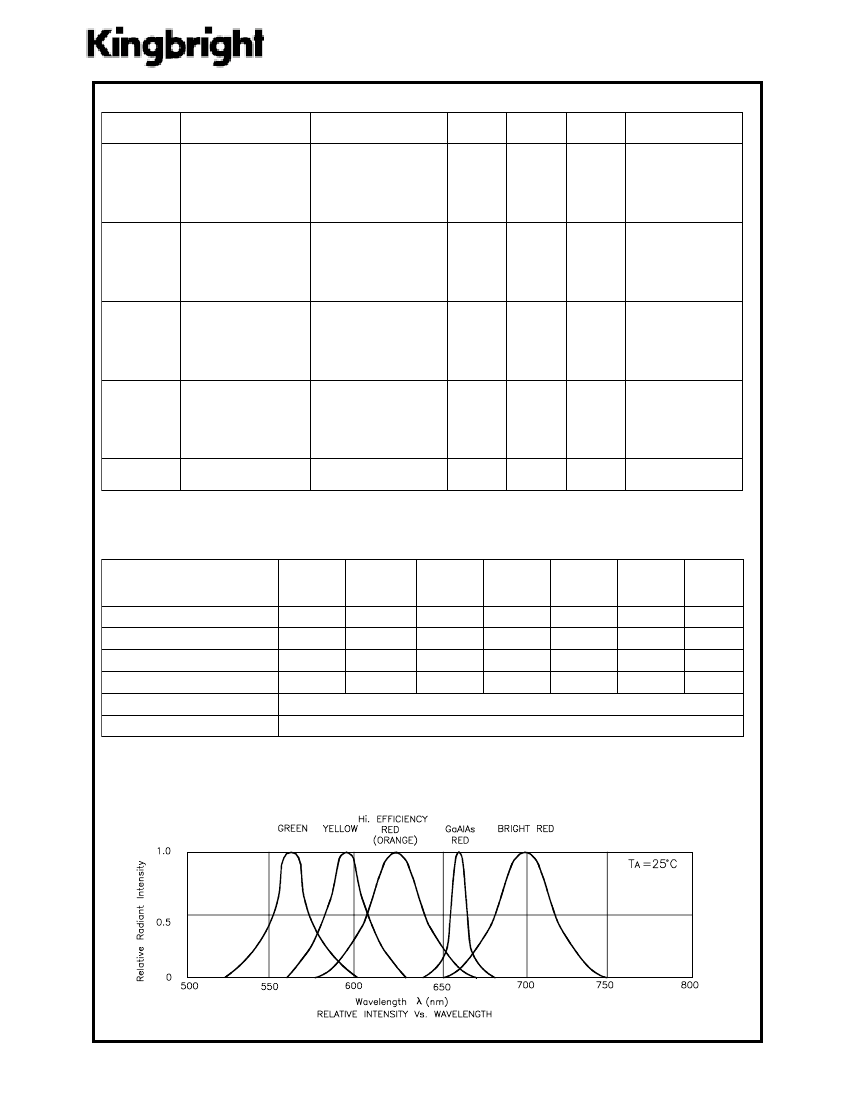

L424EDT Related Products

	L424EDT	L424SRDT
Description	Single Color LED, Orange, Diffused, T-1, 3mm, ROHS COMPLIANT PACKAGE-2	T-1 SINGLE COLOR LED, SUPER BRIGHT RED, 3 mm, ROHS COMPLIANT PACKAGE-2
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli	unknown
Other features	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY
color	ORANGE	SUPER BRIGHT RED
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED RED
Nominal luminous intensity	5.0 mcd	100.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	6 mm	6 mm
method of packing	TAPE AND REEL	TAPE AND REEL
peak wavelength	627 nm	660 nm
shape	CYLINDRICAL	CYLINDRICAL
size	3 mm	3 mm
surface mount	NO	NO
T code	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm
perspective	100 deg	100 deg
Base Number Matches	1	1
