B081-1041-0061-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> B081-1041-0061-Z

Preview

B081-1041-0061-Z: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size359KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B081-1041-0061-Z Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

B081-1041-0061-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.071 inch
subject depth	0.22 inch
body length	0.509 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B081
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

W

-

Standard = 1.8 mm; Can Also be Offered as 2.2 mm

Contact SMP Technology for Part Number.

H

-

Standard = 1.35 mm; Can Also be Offered as 1.0 mm

Contact SMP Technology for Part Number.

DIMENSION NUMBER: 0

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE:

< 30 Milliohm Max.

INSULATION RESISTANCE:

> 5000 Megaohm Min.

DIELECTRIC WITHSTANDING VOLTAGE:

600V (rms) AC for 1 Minute

OPERATING TEMPERATURE: -55ºC to +105ºC

HOW TO ORDER:

B

0

8

1

-

X

4

1

-

0

X

-

Z

NUMBER OF CONTACTS:

2 - 50

CONTACT TYPE:

1 - Cantilever Beam

2 - Tuning Fork

MATERIAL:

INSULATOR: High Temperature Thermoplastic UL94V-0

(Nylon 6T)

CONTACT: High Strength Copper Alloys

MECHANICAL:

Rev

0

SOLDERABILITY: Per MIL-STD-202F Method 208D

Issued

Drawn Checked

S.M.

B.S.

Approved Date

S.M.

12/07/07

PLATING:

0 - Au

1 - 10u" Au

2 - 15u" Au

3 - 30u" Au

SELECTIVE PLATING:

4 - Au - Tin Tail

5 - 10u" Au - Tin Tail

6 - 15u" Au - Tin Tail

7 - 30u" Au - Tin Tail

PACKAGING:

1 - Tube

RoHS

COMPLIANT

SMP TECHNOLOGY, INC.

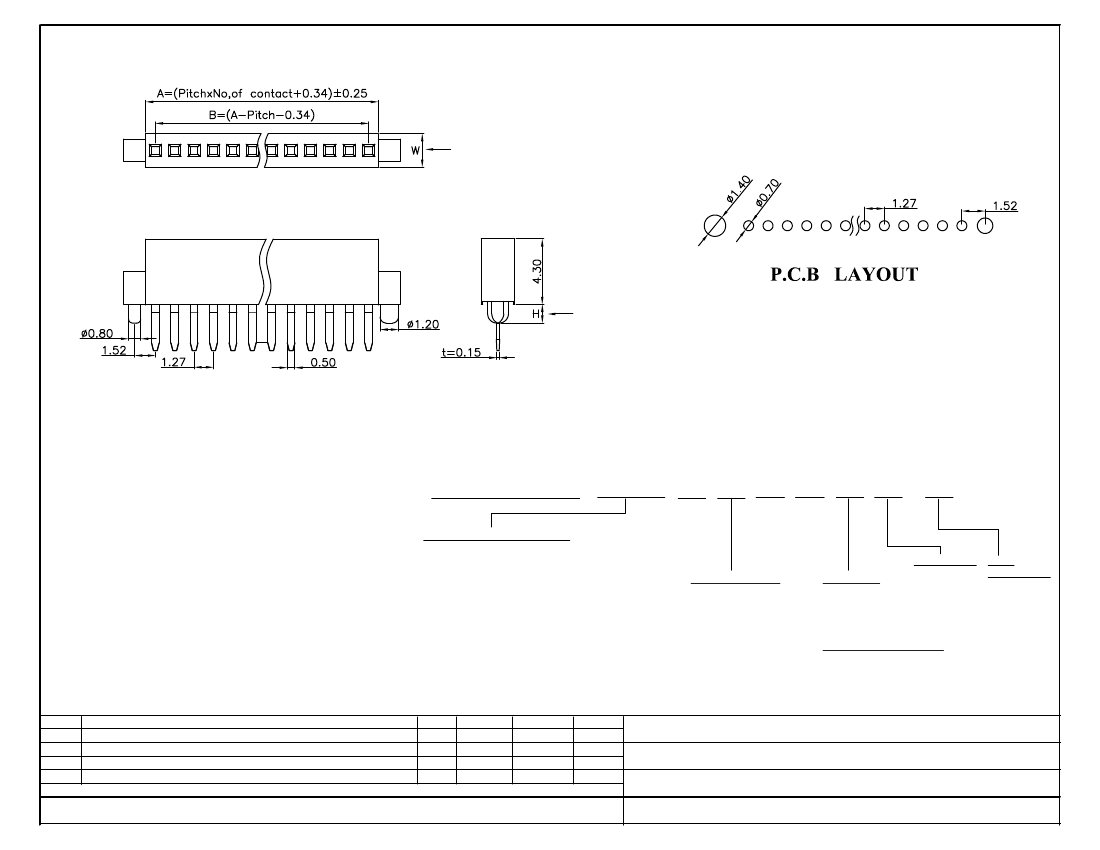

Stacking Receptacle Assembly, 1.27mm Pitch, Single Row, Top Entry,

Thru Hole, with Mounting Ears, 4.3mm Height

TOL. DEC.

.X +/- 0.50

.XX +/- 0.20

.XXX +/- 0.10

ANGLE +/-

UNIT: mm

SERIES: B081-XX41-00XX-Z

Pg: 1
