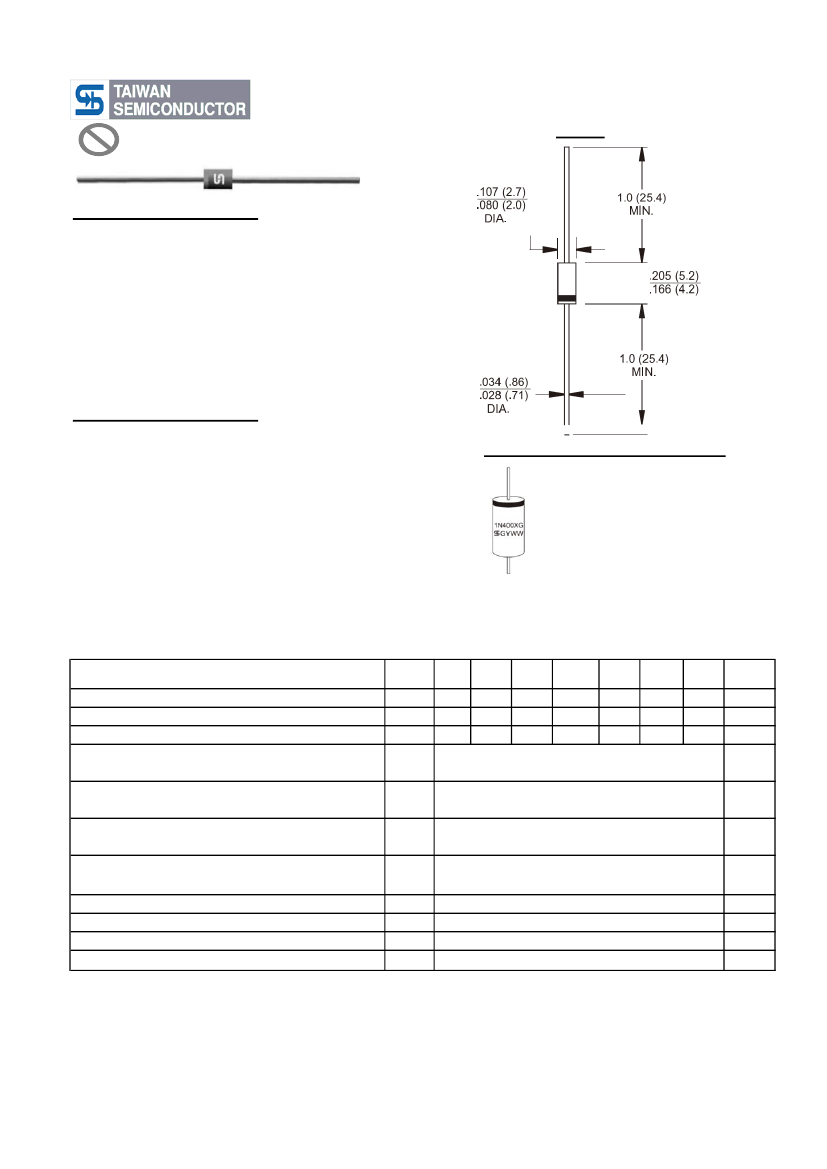

1.0 AMP. Glass Passivated Rectifiers
DO-41
1N4001G - 1N4007G
Features
Glass passivated chip junction
High current capability, Low VF
High reliability
High surge current capability
Low power loss, high efficiency
Green compound with suffix "G" on packing
code & prefix "G" on datecode
High reliability grade (AEC-Q101 qualified)
Mechanical Data
Case: Molded plastic DO-41
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode
High temperature soldering guaranteed: 260℃/10s
/.375", (9.5mm) lead lengths at 5 lbs, (2.3kg) tension
Weight: 0.34 grams
Dimensions in inches and (millimeters)
Marking Diagram
1N400XG
G
Y
WW
= Specific Device Code
= Green Compound
= Year
= Work Week
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Length @T
A
=75℃
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@1A
Maximum Reverse Current @ Rated VR T
A
=25
℃
T
A
=125℃
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note1: Pulse Test with PW=300 usec, 1% Duty Cycle
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Cj
R
θjA
T
J
T
STG
1N
1N
1N
1N
1N
1N
1N
4001 4002G 4003G 4004G 4005G 4006G 4007G
50
100
200
400
600
800
1000
35
50
70
100
140
200
280
400
1
30
1.0
5
100
10
80
- 65 to + 150
- 65 to + 150
420
600
560
800
700
1000
Unit
V
V
V
A
A
V
uA
pF
O
C/W
O
O
C
C
Note2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:J11
RATINGS AND CHARACTERISTIC CURVES (1N4001G THRU 1N4007G)
FIG.1 MAXMUM FORWARD CURRENT DERATING
CURVE
1.5
PEAK FORWARD SURGE
CURRENT(A)
AVERAGE FORWARD
CURRENT(A)
30
25
20
15
10
5
0
1
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
1
0.5
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE(
o
C)
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
REVERSE LREAKAGE CURRENT (uA)
10
INSTANTANEOUS FORWARD
CURRENT (A)
100
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
TA=125℃
10
1
1
TA=75℃
0.1
TA=25℃
0.01
0
20
40
60
80
100
120
140
0.1
0.01
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
FORWARD VOLTAGE (V)
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
CAPACITANCE (pF)
10
1
0.1
1
10
100
REVERSE VOLTAGE (V)
Version:J11
