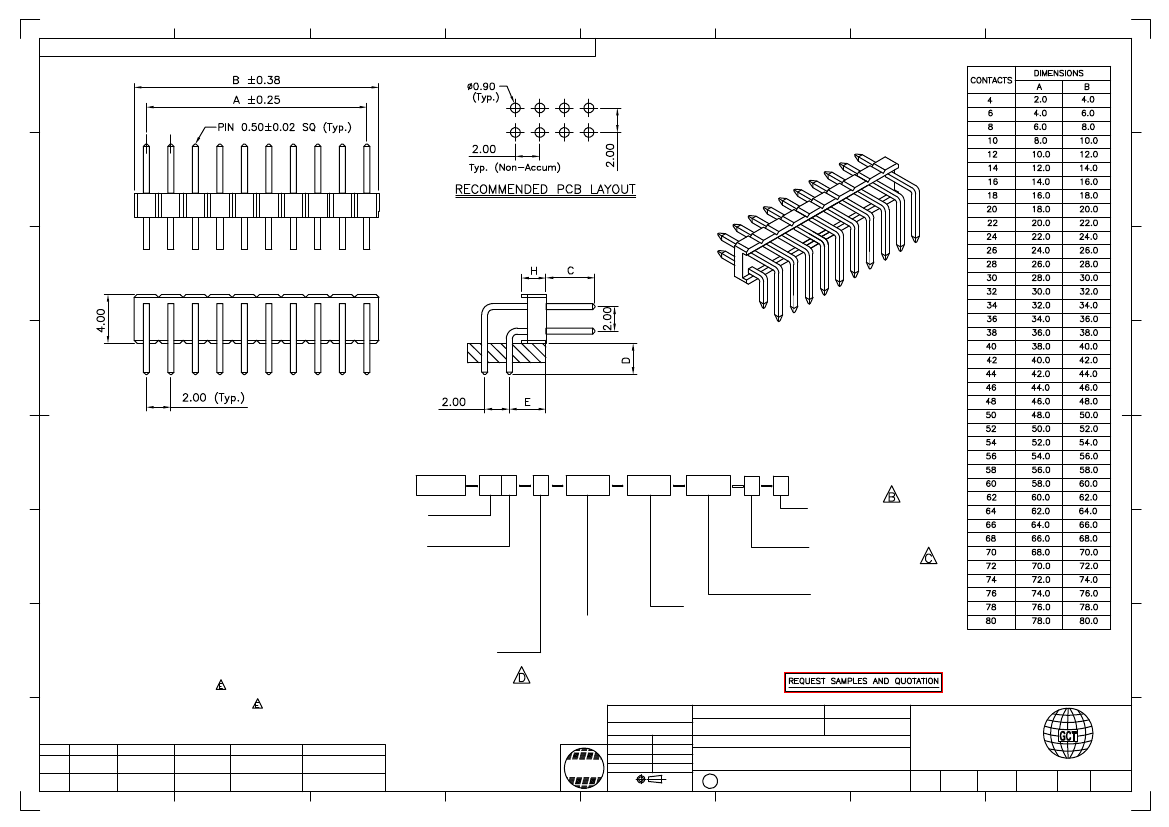

Global Connector Technology Ltd. - BF060: 2.0mm PITCH PIN HEADER, DUAL ROW, THROUGH HOLE, HORIZONTAL
A
5
6
7
8
A
B
B
C
C
D
D
E
FEATURES
特点
EASILY BREAKABLE NOTCHES
易折断驳口
CUSTOM PIN LENGTH, GOLD, SELECTIVE GOLD OR TIN PLATED.
STANDOFFS FACILITATE POST SOLDER CLEANING.
支脚设计易于清洁定½焊接点
E
Ordering Grid
F
G
H
SPECIFICATIONS
规格
CURRENT RATING
电流额定值：
2 AMP
INSULATOR RESISTANCE
绝缘电阻值：
1000 MEGOHMS MIN.
No. of Contacts
CONTACT RESISTANCE
接触电阻值：
20 mOHMS MAX.
04 to 80
DIELECTRIC WITHSTANDING
耐电压：
AC 500 V
OPERATING TEMPERATURE
工½温度：
-40°C TO +105°C
Contact Plating
CONTACT MATERIAL
端子物料：
COPPER ALLOY
A = Gold Flash All Over
INSULATOR MATERIAL
绝缘½物料
:
B = Selective Gold Flash Contact Area/
STANDARD
标准物料
: POLYAMIDE
聚醯胺
, NYLON 6T, UL 94-V0
Tin On Tail
OPTIONS
可选物料
: POLYESTER
聚酯
, LCP, UL 94-V0
C = Tin All Over
OR POLYESTER
聚酯
, PBT, UL94-V0
G = 10µ" Gold Contact Area/Tin On Tail
SOLDERING PROCESS
可焊性
:
I = 30µ" Gold Contact Area/Tin On Tail
NYLON 6T (STANDARD
标准物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
Standard = Gold Flash All Over
WAVE
波峰焊
:230°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
Insulator
PBT (OPTION
可选物料
) - MANUAL SOLDER
人工焊接
: 330°C for 3-5 sec.
Height 'H'
(NOT SUITABLE FOR HI-TEMP PROCESS
不适合高温处理
)
A = 1.50mm
LCP (OPTION
可选物料
) -
B = 2.00mm
IR REFLOW
回流焊
: 260°C for 10 sec.
Standard = 2.00mm
WAVE
波峰焊
:250°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
MATES WITH
配套之母座
(SUBJECT TO PIN LENGTH
在端子长度适合的条件下
):
BF065
BF075
BF080
BF095
BF100
BF105
BF115
BF120
By
DETAIL
REV
DATE
LYH
DRAWING
RELEASE
A
31/10/07
CB
PN
PN
DR
CHANGE TO SOLDER
TEMP. INFORMATION
E
30/07/09
PACKING OPTIONS
CORRECTION TO
CORRECTION TO
INSULATOR HEIGHT
ORDERING GRID
OPTIONS IN ORDER GRID
CHANGED
BF060
XX X
X
XXXX
XXXX
XXXX
X
X
Packing Options
G = Plastic Box (Standard)
D = Tube
E = Tube with Cap
Insulator Material
N = Nylon 6T (Standard)
L = LCP
P = PBT
Dimension E (1/100mm)
(Centre of Pin to Top of Insulator)
Dimension D (1/100mm)
Standard - 3.05mm = 0305
(Tail Length)
Dimension C (1/100mm)
Standard - 2.80mm = 0280
Or specify Dimension E
(Post Height)
e.g. 2.50mm = 0250
Standard - 4.00mm = 0400
Or specify Dimension D
TOL +/- 0.2mm
e.g. 2.50mm = 0250
Or specify Dimension C
TOL +/- 0.2mm
e.g. 2.50mm = 0250
TOL +/- 0.2mm
Tolerances
(Except as noted)
F
G
Part Number:-
Date:-
Dimensions in mm
X.X ± 0.20
X.XX ± 0.15
X.°±5°
.X°±2°
.XX°±1°
X.XXX ± 0.10 .XXX°±0.5°
Third Angle Projection
X. ± 0.30
BF060
Description:-
31 OCT 07
B
27/04/09
C
10/06/09
D
22/06/09
RoHS
4
2.0mm PITCH PIN HEADER, DUAL ROW,
THROUGH HOLE, HORIZONTAL
Global
Connector
Technology
www.globalconnectortechnology.com
Scale
NTS
H
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
E
Material
See Note
Drawn by
LYH
E & OE
Sheet No.
1/1
1
2
3
5
6
