BF155-054-A-0625-N-D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BF155-054-A-0625-N-D

Preview

BF155-054-A-0625-N-D: DescriptionBoard Connector, 54 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size145KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BF155-054-A-0625-N-D Overview

Board Connector, 54 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking,

BF155-054-A-0625-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.236 inch
subject depth	0.25 inch
body length	1.429 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	3.0024 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BF155
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.246 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	54
Evacuation force-minimum value	.199882 N

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

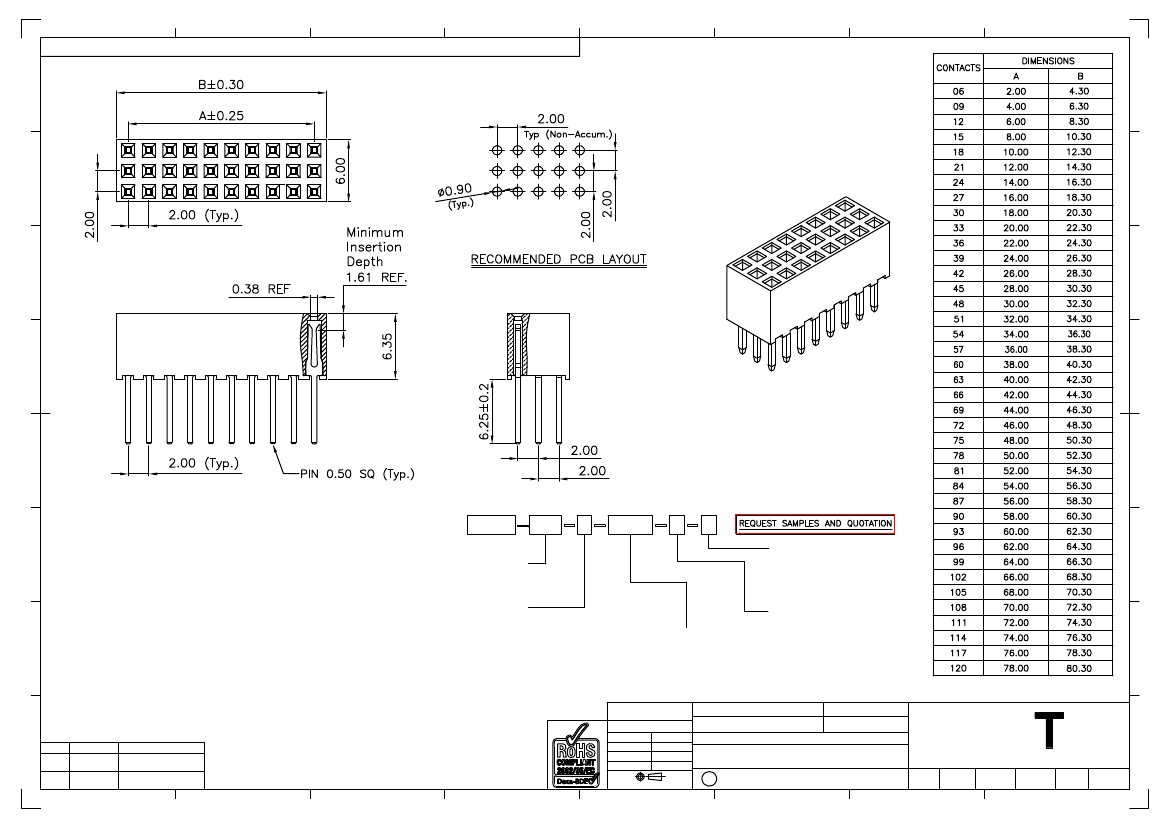

Global Connector Technology Ltd. - 2.00mm PITCH SOCKET, TRIPLE ROW, THROUGH HOLE, VERTICAL

A

B

C

D

E

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 2 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

F

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

G

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BF150

BF165

BF170

H

By

RD

AJO

DETAIL

REV

DATE

DRAWING

RELEASE

A

08/4/07

SELECTABLE LENGTH

REMOVED & AMENDED

B

10/08/12

Ordering Grid

BF155

No. of Contacts

06 to 120

XXX

X

0625

X

Packing

D = Tube (Standard)

F = Tube with Film

G = Plastic Box

Insulator Material

N = Nylon 6T (Standard)

L = LCP

F

Contact Plating

A = Gold Flash All Over (Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Tail Length (1/100mm)

0625 = 6.25mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±3°

X.X ± 0.25

X.XX ± 0.15 .XX°±2°

X.XXX ± 0.10 .XXX°±1°

X. ± 0.30

Third Angle Projection

BF155

Description:-

08 APR 07

2.00mm PITCH SOCKET, TRIPLE ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

Sheet No.

E & OE

1/1

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

B

Drawn by

RD

1

2

3

4

5

6

7

8

BF155-054-A-0625-N-D Related Products

	BF155-054-A-0625-N-D	BF155-090-A-0625-N-D	RBP10BTP2640	RBP10CBK2083	RBP12BTK2640	RBP12CTP2640	RBP12CTS2640
Description	Board Connector, 54 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking,	Board Connector, 90 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking,	Fixed Resistor, Thin Film, 0.25W, 264ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP, LEAD FREE	Fixed Resistor, Thin Film, 0.25W, 208000ohm, 150V, 0.25% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP, LEAD FREE	Fixed Resistor, Thin Film, 0.5W, 264ohm, 150V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE	Fixed Resistor, Thin Film, 0.5W, 264ohm, 150V, 0.25% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE	Fixed Resistor, Thin Film, 0.5W, 264ohm, 150V, 0.25% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Manufacturer's serial number	BF155	BF155	RBP	RBP	RBP	RBP	RBP
Maximum operating temperature	105 °C	105 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Is it lead-free?	-	-	Lead free	Lead free	Lead free	Lead free	Lead free
Objectid	-	-	1682351493	1224090255	1224098880	1224104646	1224105607
package instruction	-	-	CHIP, LEAD FREE	CHIP, LEAD FREE	CHIP, LEAD FREE	CHIP, LEAD FREE	CHIP, LEAD FREE
structure	-	-	Chip	Chip	Chip	Chip	Chip
JESD-609 code	-	-	e3	e3	e3	e3	e3
Installation features	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	-	-	2	2	2	2	2
Package height	-	-	0.5 mm	0.5 mm	0.55 mm	0.55 mm	0.55 mm
Package length	-	-	2 mm	2 mm	3.1 mm	3.1 mm	3.1 mm
Package shape	-	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	-	-	SMT	SMT	SMT	SMT	SMT
Package width	-	-	1.25 mm	1.25 mm	1.55 mm	1.55 mm	1.55 mm
method of packing	-	-	TR, PAPER, 7 INCH	BULK	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH
Rated power dissipation(P)	-	-	0.25 W	0.25 W	0.5 W	0.5 W	0.5 W
Rated temperature	-	-	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	-	-	264 Ω	208000 Ω	264 Ω	264 Ω	264 Ω
Resistor type	-	-	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	-	-	RBP10(BC TOL)	RBP10(BC TOL)	RBP12(BC TOL)	RBP12(BC TOL)	RBP12(BC TOL)
size code	-	-	0805	0805	1206	1206	1206
surface mount	-	-	YES	YES	YES	YES	YES
technology	-	-	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM
Temperature Coefficient	-	-	25 ppm/°C	10 ppm/°C	10 ppm/°C	25 ppm/°C	50 ppm/°C
Terminal surface	-	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	-	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	-	-	0.1%	0.25%	0.1%	0.25%	0.25%
Operating Voltage	-	-	150 V	150 V	150 V	150 V	150 V
