UNISONIC TECHNOLOGIES CO., LTD
3N65Z
3A, 650V N-CHANNEL
POWER MOSFET
DESCRIPTION
The UTC
3N65Z
is a high voltage and high current power
MOSFET designed to have better characteristics, such as fast
switching time, low gate charge, low on-state resistance and high
rugged avalanche characteristics. This power MOSFET is usually
used in high speed switching applications at power supplies, PWM
motor controls, high efficient DC to DC converters and bridge
circuits.
Power MOSFET
1
TO-220F
FEATURES
* R
DS(ON)
= 3.8Ω @V
GS
= 10 V
* Ultra low gate charge ( typical 10nC )
* Low reverse transfer capacitance ( C
RSS
= typical 5.5 pF )
* Fast switching capability
* Avalanche energy specified
* Improved dv/dt capability, high ruggedness
SYMBOL
2.Drain
1.Gate
3.Source
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
3N65ZL-TF3-T
3N65ZG-TF3-T
Note: Pin Assignment: G: Gate
D: Drain
S: Source
Package
TO-220F
Pin Assignment
1
2
3
G
D
S
Packing
Tube
www.unisonic.com.tw
Copyright © 2012 Unisonic Technologies Co., Ltd
1 of 8
QW-R502-746.A
3N65Z
ABSOLUTE MAXIMUM RATINGS
(T
C
= 25℃, unless otherwise specified)
Power MOSFET
PARAMETER
SYMBOL
RATINGS
UNIT
Drain-Source Voltage
V
DSS
650
V
Gate-Source Voltage
V
GSS
±30
V
Avalanche Current (Note 2)
I
AR
3.0
A
Continuous Drain Current
I
D
3.0
A
Pulsed Drain Current (Note 2)
I
DM
12
A
200
mJ
Single Pulsed (Note 3)
E
AS
Avalanche Energy
Repetitive (Note 2)
E
AR
7.5
mJ
Peak Diode Recovery dv/dt (Note 4)
dv/dt
4.5
V/ns
Power Dissipation
P
D
34
W
Junction Temperature
T
J
+150
℃
Operating Temperature
T
OPR
-55 ~ +150
℃
Storage Temperature
T
STG
-55 ~ +150
℃
Note: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Repetitive Rating: Pulse width limited by maximum junction temperature
3. L = 64mH, I
AS
= 2.4A, V
DD
= 50V, R
G
= 25
Ω,
Starting T
J
= 25°C
4. I
SD
≤
3.0A, di/dt
≤200A/μs,
V
DD
≤
BV
DSS
, Starting T
J
= 25°C
THERMAL DATA
PARAMETER
Junction to Ambient
Junction to Case
SYMBOL
θ
JA
θ
JC
RATING
62.5
3.68
UNIT
°C/W
°C/W
ELECTRICAL CHARACTERISTICS
(T
C
=25℃, unless otherwise specified)
PARAMETER
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
Drain-Source Leakage Current
SYMBOL
BV
DSS
I
DSS
TEST CONDITIONS
MIN TYP MAX UNIT
650
V
10
μA
100 nA
-100 nA
V/℃
4.0
3.8
450
65
7.5
V
Ω
pF
pF
pF
V
GS
= 0 V, I
D
= 250
μA
V
DS
= 650 V, V
GS
= 0 V
Forward
V
GS
= 30 V, V
DS
= 0 V
Gate-Source Leakage Current
I
GSS
Reverse
V
GS
= -30 V, V
DS
= 0 V
Breakdown Voltage Temperature Coefficient
△
BV
DSS
/△T
J
I
D
=250μA,Referenced to 25°C
ON CHARACTERISTICS
Gate Threshold Voltage
V
GS(TH)
V
DS
= V
GS
, I
D
= 250
μA
Static Drain-Source On-State Resistance
R
DS(ON)
V
GS
= 10V, I
D
= 1.5A
DYNAMIC CHARACTERISTICS
Input Capacitance
C
ISS
V
DS
= 25V, V
GS
= 0V,
Output Capacitance
C
OSS
f = 1MHz
Reverse Transfer Capacitance
C
RSS
0.6
2.0
2.9
350
50
5.5
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 8
QW-R502-746.A
3N65Z
ELECTRICAL CHARACTERISTICS(Cont.)
PARAMETER
SYMBOL
TEST CONDITIONS
SWITCHING CHARACTERISTICS
Turn-On Delay Time
t
D(ON)
Turn-On Rise Time
t
R
V
DD
= 325V, I
D
= 3.0A,
R
G
= 25Ω (Note 1, 2)
Turn-Off Delay Time
t
D(OFF)
Turn-Off Fall Time
t
F
Total Gate Charge
Q
G
V
DS
= 520V,I
D
= 3.0A,
Gate-Source Charge
Q
GS
V
GS
= 10 V (Note 1, 2)
Gate-Drain Charge
Q
DD
SOURCE- DRAIN DIODE RATINGS AND CHARACTERISTICS
Drain-Source Diode Forward Voltage
V
SD
V
GS
= 0 V, I
S
= 3.0 A
Maximum Continuous Drain-Source Diode
I
S
Forward Current
Maximum Pulsed Drain-Source Diode
I
SM
Forward Current
Reverse Recovery Time
t
rr
V
GS
= 0 V, I
S
= 3.0 A,
Reverse Recovery Charge
Q
RR
dI
F
/dt = 100A/μs (Note 1)
Notes: 1. Pulse Test: Pulse Width≤300μs, Duty Cycle≤2%
2. Essentially independent of operating temperature.
Power MOSFET
MIN TYP MAX UNIT
10
30
20
30
10
2.7
4.9
30
70
50
70
13
ns
ns
ns
ns
nC
nC
nC
V
A
A
ns
μC
1.4
3.0
12
210
1.2
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 8
QW-R502-746.A
3N65Z
TEST CIRCUITS AND WAVEFORMS
D.U.T.
+
V
DS
-
+
-
L
Power MOSFET
R
G
Driver
V
GS
Same Type
as D.U.T.
* dv/dt controlled by R
G
* I
SD
controlled by pulse period
* D.U.T.-Device Under Test
V
DD
Peak Diode Recovery dv/dt Test Circuit
V
GS
(Driver)
Period
P.W.
D=
P. W.
Period
V
GS
= 10V
I
FM
, Body Diode Forward Current
I
SD
(D.U.T.)
I
RM
Body Diode Reverse Current
di/dt
Body Diode Recovery dv/dt
V
DS
(D.U.T.)
V
DD
Body Diode
Forward Voltage Drop
Peak Diode Recovery dv/dt Waveforms
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 8
QW-R502-746.A
3N65Z
TEST CIRCUITS AND WAVEFORMS (Cont.)
V
DS
V
GS
R
G
R
L
V
DD
Power MOSFET
10V
Pulse Width≤ 1µs
Duty Factor≤0.1%
D.U.T.

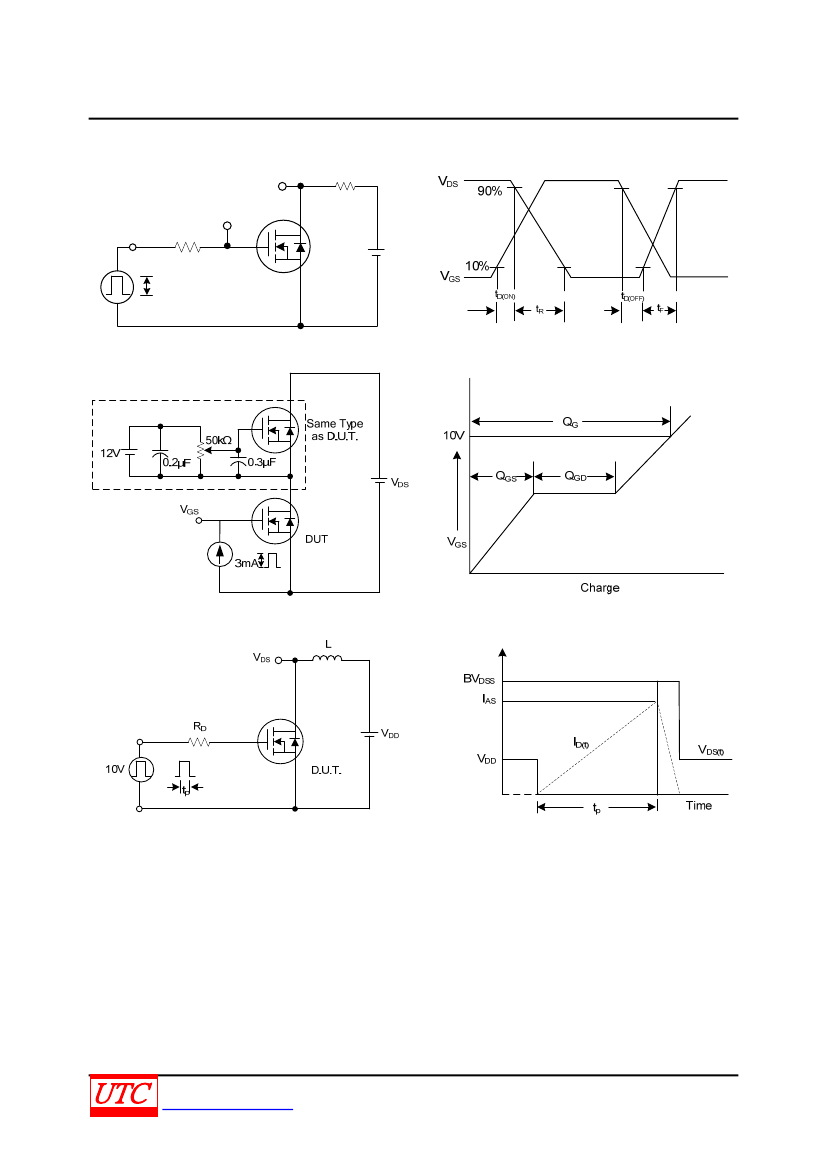

Switching Test Circuit
Switching Waveforms
Gate Charge Test Circuit
Gate Charge Waveform
Unclamped Inductive Switching Test Circuit
Unclamped Inductive Switching Waveforms
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 8
QW-R502-746.A
