Y1684V0354CQ9R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> Y1684V0354CQ9R

Y1684V0354CQ9R: DescriptionArray/Network Resistor, 0.1W, 10000ohm, 64V, 0.25% +/-Tol, -2,2ppm/Cel, 1515; CategoryPassive components The resistor; File Size290KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

Y1684V0354CQ9R Overview

Array/Network Resistor, 0.1W, 10000ohm, 64V, 0.25% +/-Tol, -2,2ppm/Cel, 1515

Y1684V0354CQ9R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Non Inductive
Manufacturer's serial number	VFB1515N
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.81 mm
Package length	3.86 mm
Package form	SMT
Package width	3.86 mm
method of packing	TR
Rated power dissipation(P)	0.1 W
resistance	10000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	VFB1515N
size code	1515
Temperature Coefficient	-2,2 ppm/°C
Tolerance	0.25%
Operating Voltage	64 V

Y1684V0354CQ9R Preview

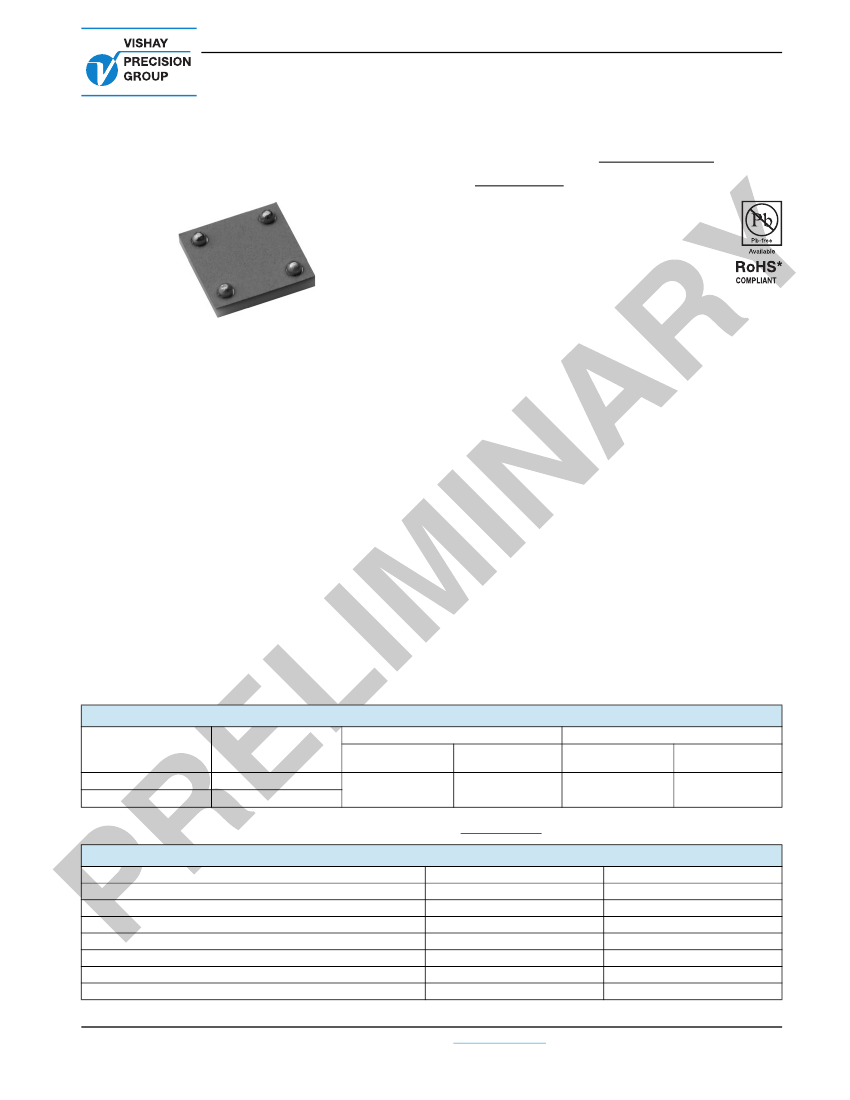

VFB1515N

Vishay Foil Resistors

Ultra High Precision Z-Foil BGA Surface Mount Resistor

3R Network, Temperature Coefficient Tracking 0.1 ppm/°C and

Load Life Ratio Stability to ± 0.01 % (100 ppm)

FEATURES



Temperature coefficient of resistance (TCR):

Absolute: ± 0.05 ppm/°C typical (0 °C to + 60 °C)

± 0.2 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C

ref.)

Tracking: 0.1 ppm/°C typical



Power coefficient tracking “R due to self heating”: 5 ppm

at rated power



Power rating: maximum 0.1 W per resistor at 70 °C,

maximum 0.2 W for entire package



Resistance tolerance match: 0.01 %



Ratio stability: 0.01 % (0.2 W at 70 °C, 2000 h)



Large variety of resistance ratios: 200



to 10 k



Electrostatic discharge (ESD) up to 25 000 V



Short time overload



0.01 % (100 ppm)



Non inductive, non capacitive design



Rise time: 1 ns effectively no ringing



Thermal stabilization < 1 s



Current noise: < - 40 dB



Voltage coefficient: < 0.1 ppm/V



Non inductive: < 0.08 µH



Non hot spot design



Terminal (solder ball) available: lead (Pb)-free

tin/lead alloy



Compliant to RoHS directive 2002/95/EC



Maximum working voltage for entire package: 64 V



For better performances please contact us

INTRODUCTION

Bulk Metal

Z-Foil technology out-performs all other resistor

technologies available today for applications that require

ultra-high precision and ultra-high stability. The Z-Foil

technology provides a significant reduction of the resistive

element’s sensitivity to ambient temperature variations

(TCR) and to self heating when power is applied (power

coefficient).

Model VFB1515N offers low TCR (both absolute and

tracking), low PCR (both absolute and tracking), excellent

load life stability, tight tolerance, excellent ratio stability, and

low current noise, all in one package. 0.05 ppm/°C absolute

TCR removes errors due to temperature gradients.

The VFB1515N ball grid array (BGA) surface mount

3-resistor network provides tight tolerance matching and

TCR tracking between 3 resistors simultaneously etched on

one piece of foil on a common substrate. The electrical

specifications of this integrated construction offers improved

performances and better real estate utilization over discrete

resistors and matched pairs.

Our application engineering department is available to

advise and make recommendations. For non-standard

technical requirements and special applications, please

TABLE 1 - POPULAR RESISTANCE VALUES/RATIO AND TCR CHARACTERISTICS

POPULAR VALUES

AVAILABLE

(1)

(R1/R2/R3)

10K/400R/10K

10K/200R/10K

RESISTANCE

VALUE CODE

V0353

V0354

TCR MAX. (MIL RANGE)

ABSOLUTE

2.0 ppm/°C

TRACKING

2.0 ppm/°C

TOLERANCE

ABSOLUTE

0.1 %

MATCH

(R1/R2 and R3/R2)

0.05 %

Note

(1)

For other values and ratios, please contact sales engineering department: foil@vishay.com

TABLE 2 - TYPICAL PERFORMANCE SPECIFICATIONS PER MIL-PRF-55342

TEST

Thermal shock, 5 x (- 65 °C to + 150 °C)

Low temperature operation, - 65 °C at P

nom.

45 min

Short time overload, 6.25 x P

nom.

x 5 s

High temperature exposure, 100 h at + 150 °C

Resistance to soldering heat per MIL-PRF-55342

Moisture resistance MIL-STD-202, method 106 without load

Load life (ratio stability), + 70 °C for 2000 h

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 63139

Revision: 26-Mar-10

For any questions, contact:

foil@vishaypg.com

www.foilresistors.com

R

0.01 % (100 ppm)

0.05 % (500 ppm)

0.01 % (100 ppm)

RATIO

0.01 % (100 ppm)

0.005 % (50 ppm)

0.01 % (100 ppm)

0.02 % (200 ppm)

0.01 % (100 ppm)

VFB1515N

Vishay Foil Resistors

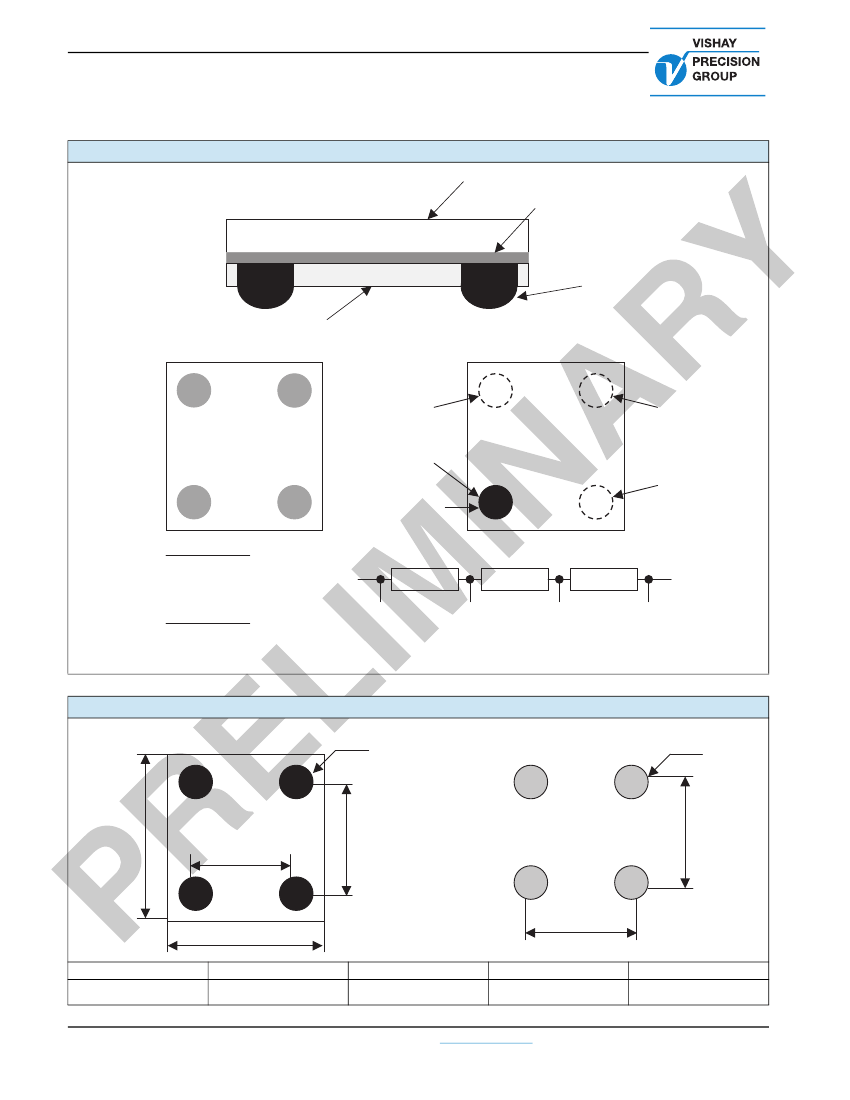

FIGURE 1 - CHIP CONFIGURATION

High Purity Alumina

Substrate

Resistive Bulk

Metal Foil

Solder

Ball

Protective

Coating

Bottom View

Top View

Marking Dot

Configuration #1

R1 = 10K

R2 = 400R

R3 = 10K

Configuration #2

R1 = 10K

R2 = 200R

R3 = 10K

TABLE 3 - DIMENSIONS

in Inches (Millimeters)

Chip Dimensions

Ø D1

Recommended Solder Pad Dimensions

Ø D2

L, W

0.152 ± 0.005

(3.86 ± 0.13)

0.020 ± 0.002

(0.50 ± 0.05)

0.018 ± 0.002

(0.46 ± 0.05)

0.105 ± 0.005

(2.67 ± 0.13)

THICKNESS (with balls)

0.032 ± 0.003

(0.81 ± 0.08)

www.foilresistors.com

For any questions, contact:

foil@vishaypg.com

Document Number: 63139

Revision: 26-Mar-10

VFB1515N

Vishay Foil Resistors

TABLE 4 - GLOBAL PART NUMBER INFORMATION

NEW GLOBAL PART NUMBER: Y1684V0354QT9W (preferred part number format)

DENOTES PRECISION

VCODE

(2)

RESISTANCE

VALUE CODE

TOLERANCE MATCH

= 0.01 %

= 0.02 %

= 0.05 %

PACKAGING

= tape and reel

= waffle pack

PRODUCT CODE

1684

= VFB1515N

RESISTANCE TOLERANCE

= ± 0.02 %

= ± 0.05 %

= ± 0.10 %

= ± 0.25 %

CHARACTERISTICS

(1)

= standard

= lead (Pb)-free

1 to 999

= custom

FOR EXAMPLE: ABOVE GLOBAL ORDER Y1684 V0354 Q T 9 W:

TYPE: VFB1515N

VALUES: 10K/200R/10K

ABSOLUTE TOLERANCE: ± 0.02 %

TOLERANCE MATCH: 0.01 %

TERMINATION: lead (Pb)-free

PACKAGING: waffle pack

HISTORICAL PART NUMBER: VFB1515N 10K/200R/10K Q T S W (will continue to be used)

VFB1515N

MODEL

10K/200R/10K

RESISTANCE

VALUE

= 10 k

= 200



= 10 k

ABSOLUTE

TOLERANCE

= ± 0.02 %

= ± 0.05 %

= ± 0.10 %

= ± 0.25 %

TOLERANCE

MATCH

= 0.01 %

= 0.02 %

= 0.05 %

TERMINATION

= lead (Pb)-free

= tin/lead

PACKAGING

= tape and reel

= waffle pack

Notes

(1)

For non-standard requests, please contact application engineering.

(2)

For list of value codes see table 1 (additional values are available on request).

Document Number: 63139

Revision: 26-Mar-10

For any questions, contact:

foil@vishaypg.com

www.foilresistors.com

Legal Disclaimer Notice

Vishay Precision Group

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their

behalf (collectively, “Vishay Precision Group”), disclaim any and all liability for any errors, inaccuracies or

incompleteness contained herein or in any other disclosure relating to any product.

The product specifications do not expand or otherwise modify Vishay Precision Group’s terms and conditions of

purchase, including but not limited to, the warranty expressed therein.

Vishay Precision Group makes no warranty, representation or guarantee other than as set forth in the terms

and conditions of purchase.

To the maximum extent permitted by applicable law, Vishay Precision Group

disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability,

including without limitation special, consequential or incidental damages, and (iii) any and all implied

warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different applications

and performance may vary over time. Statements regarding the suitability of products for certain types of

applications are based on Vishay Precision Group’s knowledge of typical requirements that are often placed on

Vishay Precision Group products. It is the customer’s responsibility to validate that a particular product with the

properties described in the product specification is suitable for use in a particular application.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by

any conduct of Vishay Precision Group.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise

expressly indicated. Customers using or selling Vishay Precision Group products not expressly indicated for use

in such applications do so entirely at their own risk and agree to fully indemnify Vishay Precision Group for any

damages arising or resulting from such use or sale. Please contact authorized Vishay Precision Group personnel

to obtain written terms and conditions regarding products designed for such applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 27-Apr-11

www.vishaypg.com
