DBS3107: DescriptionSlide Switch, 7 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 14 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size37KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

DBS3107 Overview

Slide Switch, 7 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 14 PCB Hole Cnt, Solder Terminal, Through Hole-straight

DBS3107 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	WHITE
Actuator length	0.043 inch
Actuator material	POLYBUTYLENE TEREPHTHALATE
Actuator type	SLIDE
body width	9.6012 mm
Body color	BLACK
body height	5.588 mm
Body length or diameter	18.7706 mm
center contact material	BRASS
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
End contact material	BRASS
End contact plating	GOLD
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	DBS
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	14
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Terminal length	0.122 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

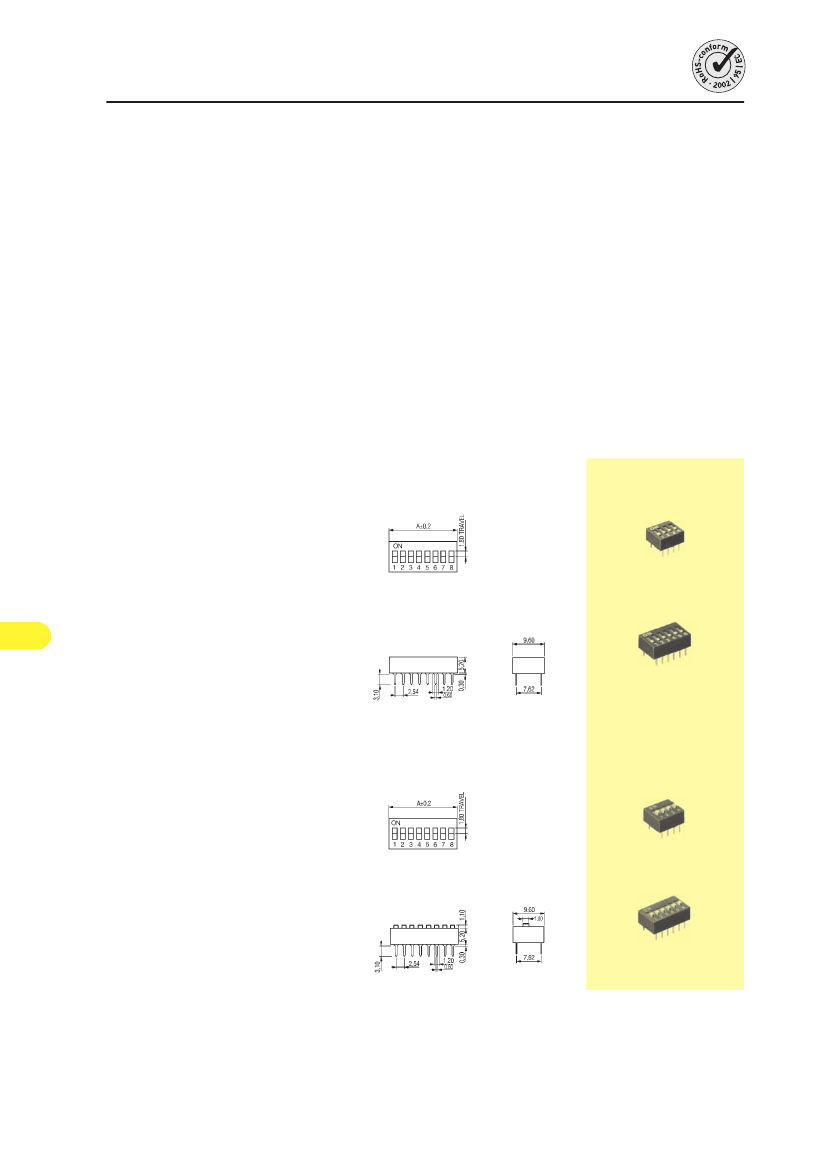

Dual-in-line Switches

Specifications:

Contact rating:

Contact resistance:

Insulation resistance:

Dielectric strength:

Operating temperature:

Mechanical life:

Material:

Contacts:

Construction:

Mounting:

Slide position:

Soldering conditions:

Terminals:

24 V DC, 25 mA

< 50 mΩ

> 1000 MΩ at 500 V DC

500 V, 50 Hz for the duration of 1 minute

– 40° to + 85° C

minimum 2000 operations per pole

PBT meets UL 94 V-0

brass, gold-plated 0,3 µ

case sealed;

series DBS 3000 slide recessed, sealed with protective tape

on pc-board

OFF

auto-soldering – max.: 5 sec, 260º C

tin-plated

Models:

Series DBS 3000

Type

DBS 3001

DBS 3002

DBS 3003

DBS 3004

DBS 3005

DBS 3006

DBS 3007

DBS 3008

DBS 3009

DBS 3010

DBS 3012

Series DBS 3100

Type

DBS 3101

DBS 3102

DBS 3103

DBS 3104

DBS 3105

DBS 3106

DBS 3107

DBS 3108

DBS 3109

DBS 3110

DBS 3112

Poles

1

2

3

4

5

6

7

8

9

10

12

Length (A)

3,54 mm

6,08 mm

8,62 mm

11,16 mm

13,70 mm

16,24 mm

18,78 mm

21,32 mm

23,86 mm

26,40 mm

31,48 mm

Poles

1

2

3

4

5

6

7

8

9

10

12

Length (A)

3,54 mm

6,08 mm

8,62 mm

11,16 mm

13,70 mm

16,24 mm

18,78 mm

21,32 mm

23,86 mm

26,40 mm

31,48 mm

5

138
