Safety Specifications for models with 12, 24, and 48 Vin
Parameters
Agency approvals
CE
EN 55022 (Radiated) – Class A
EN 55024 – Class A
IEC61000-4-2
IEC61000-4-3
NOTE: Meets IEC60950-1:2001
Standards
Pin Out Specifications
Pin
1
2
3
4
5
Single
+V Input
-V Input
+V Output
No Pin.
-V Output
Dual
+V Input
-V Input
+V Output
Common.
-V Output
www.aimtec.com
F 051e R12.E
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only

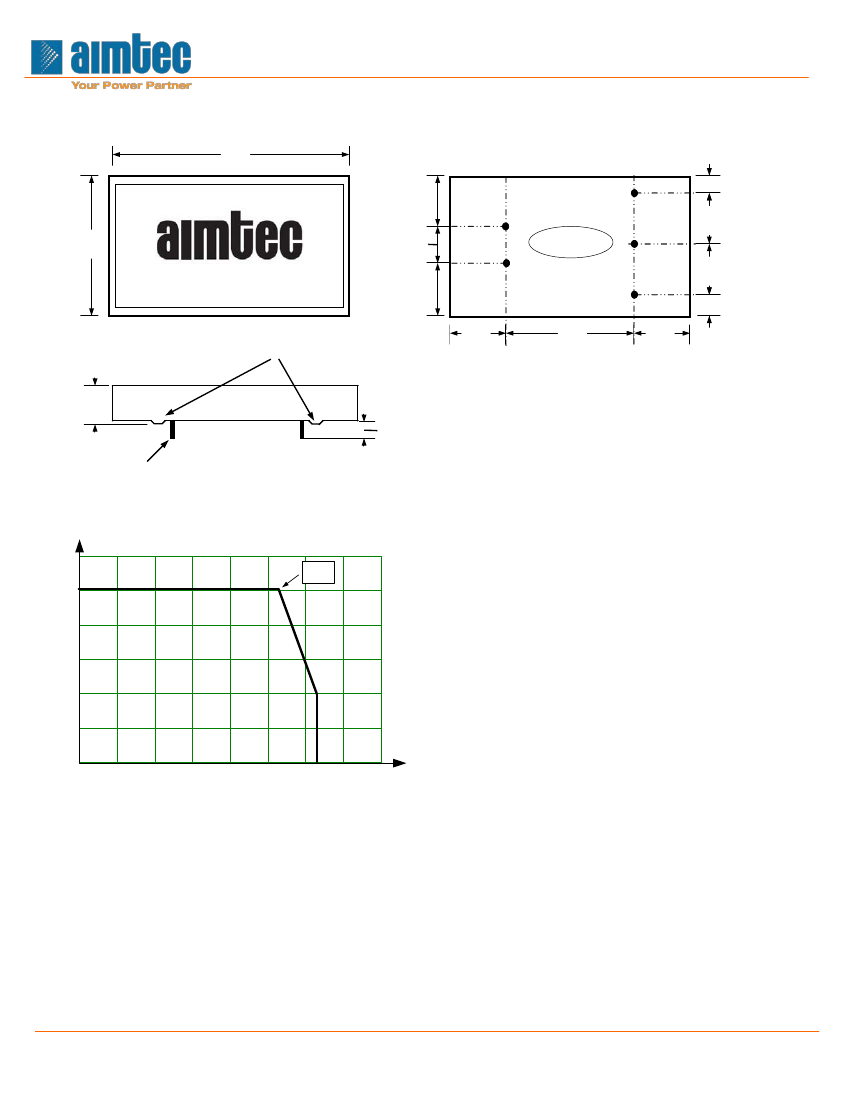

Series AM10E-Z
10 Watt | DC-DC Converter
2.54
(0.10)
10.16
(0.40)
Dimensions
50.80
(2.00)
3
1
10.16
(0.40)
25.40
(1.00)
5.08
(0.20)
Bottom View
2
4
10.16
(0.40)
5
15.24
(0.60)
20.32
(0.80)
15.24
(0.60)
Built-in Stand-offs to
ease PCB cleaning
DIA
1.00
(0.04)
Derating - 5Vin Model
Free Air Convection
65º C
100
Output Power (%)
80
60
40
20
0
- 40
- 20
0
20
40
60
80
85
Safe Operating Area
100
Ambient Temperature
º C
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
