Remarks: Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.
Basic
specifications
0: Standard type
1: Oil tight type
3: Reversed
action type
4: One way type
Actuators
Contact
F: Cadmium
free

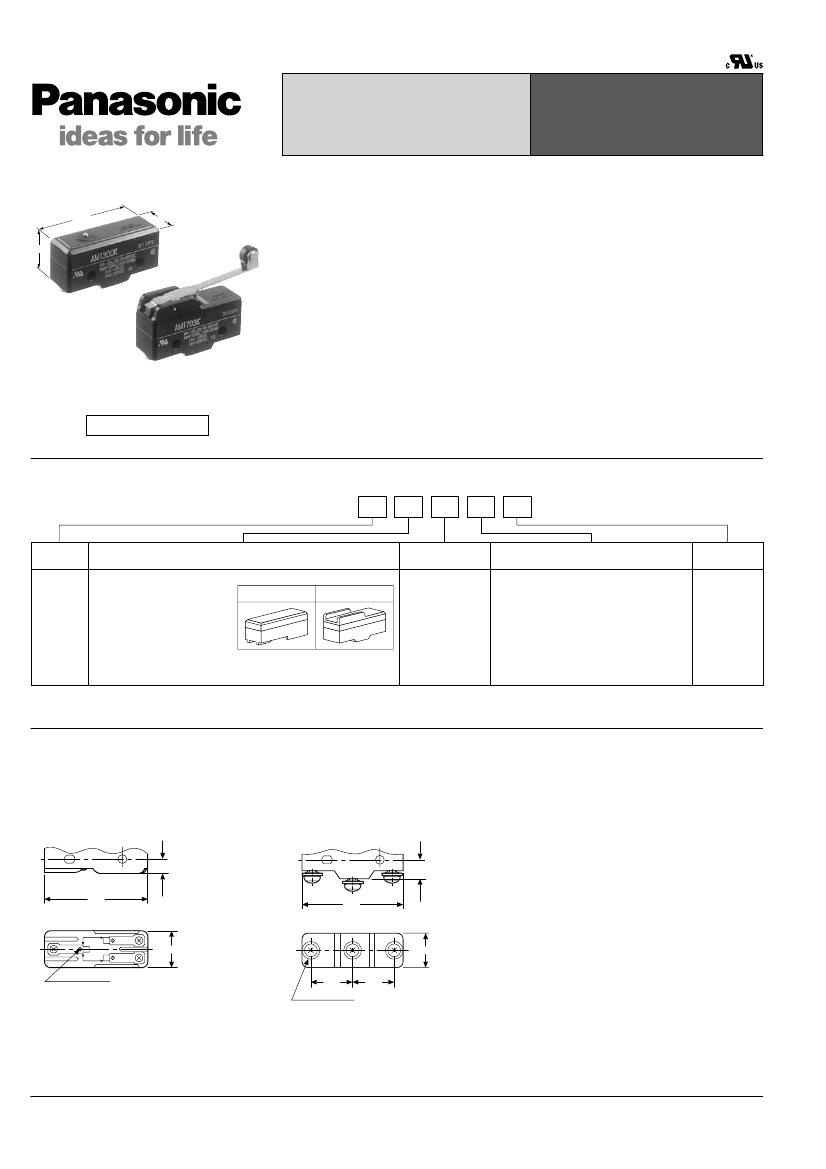

TERMINAL VARIATION
Standard types, reversed action types and oil tight types are available in two terminal designs, solder and screw terminals, as shown
in the above columns:
Differences in dimension between solder and screw terminals are as follows;
mm
Solder terminal
Screw terminal
6.3
9.1
49.2
49.2
N.O.
CIRCUT
C
NO
NC
17.5
N.C.
CIRCUT
17.5
Terminal plate
19.8
M4 screw P0.7
20.2
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AECTB8E 201201-T
AM1
PRODUCT TYPES
1. Standard type
Actuator
Pin plunger
Over travel plunger
Compact over travel plunger
Panel mount plunger
Panel mount roller plunger
Panel mount cross roller plunger
Flexible leaf lever
Flexible roller leaf lever
Rigid lever
Rigid short roller lever
Rigid roller lever
One way type•Rigid short roller lever
One way type•Rigid roller lever
Reversed action type•Rigid lever
Reversed action type •Rigid short roller lever
Reversed action type•Rigid roller lever
Solder terminal
AM1100F
AM1105F
AM1106F
AM1107F
AM110811F
AM110812F
AM1101F
AM1103F
AM1501F
AM1504F
AM1503F
AM1544F
AM1543F
AM1531F
AM1534F
AM1533F
Screw terminal
AM1300F
AM1305F
AM1306F
AM1307F
AM130811F
AM130812F
AM1301F
AM1303F
AM1701F
AM1704F
AM1703F
AM1744F
AM1743F
AM1731F
AM1734F
AM1733F
2. Oil tight types
Actuator
Rigid lever
Rigid short roller lever
Rigid roller lever
Remarks: 1. Standard part number indicates UL/C-UL mark.
2. Standard packing for inner carton: 20cps.
Solder terminal
AM1511F
AM1514F
AM1513F
Screw terminal
AM1711F
AM1714F
AM1713F
SPECIFICATIONS
1. Contact Rating
Type
Voltage
125 V AC
250 V AC
480 V AC
125 V DC
250 V DC
125 V AC
250 V AC
125 V DC
Resistive load
(cos
φ
= 1)
10 A
10 A
1A
0.5 A
0.25 A
10 A
10 A
0.5 A
Inductive load
(cos
φ
= 0.6 to 0.7)
6A
6A
0.5 A
0.05 A
0.03 A
6A
6A
0.05 A
Motor or lamp load
N.C.
3A
2A
—
—
—
3A
2A
—
N.O.
1.5 A
1A
—
—
—
1.5 A
1.0 A
—
Standard types
One way types
Reversed action types
Oil tight types
2. Characteristics
Item
Pin plunger types (O.T.: specified value)
Expected
life
Mechanical
Other types (O.T.: specified value)
Electrical (O.T.: Max.)
Insulation resistance
Between open terminals
Dielectric
Between each terminal and other exposed metal parts
strength
Between each terminal and ground
Contact resistance (initial) (by voltage drop, 1 A, 6–8 V DC)
Vibration resistance (Pin plunger type)
Shock
resistance
Pin plunger types
Other types
Allowable operating speed (at no load)
Max. operating cycle rate (at no load)
Ambient temperature
Weight
7
Specifications
Min. 2
×10
(60 cpm) (at rated overtravel)
(Oil tight: Min. 1.5
×10
6
)
Min. 5
×10
6
(60 cpm) (at rated overtravel)
(Oil tight: Min. 1.5
×10
6
)
Min. 5
×10
5
(20 cpm) (at rated load)
(Oil tight: Min. 1.5
×10
5
)
Min. 100 MΩ(at 500 V DC)
1,000 Vrms for 1 min.
2,000 Vrms for 1 min.
2,000 Vrms for 1 min.
Max. 50 mΩ
Single amplitude: 0.75 mm, 10 to 55 Hz (contact opening: max. 1 msec.)
Min. 300 m/s
2
(contact opening: max. 1 msec.)
Min. 50 m/s
2
(contact opening: max. 1 msec.)
0.1 to 1,000 mm/sec. (at pin plunger position)
240 cpm
–25°C to +80°C (no freezing at low temperature)
Approx. 20 to 55 g
AECTB8E 201201-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AM1
OPERATING CHARACTERISTICS
Standard types
Types of actuator
Operating force, max.
Release force, min.
Pretravel, max. mm
Movement differential, max. mm
Overtravel, min. mm
Operating position, mm
0.13
15.9±0.4
1.5
28.2±0.5
Pin plunger
Overtravel plunger
3.63 N
1.12 N
0.4
0.05
1.5
21.2±0.5
5.6
21.8±0.8
Compact overtravel
plunger
Panel mount plunger
Types of actuator
Operating force, max.
Release force, min.
Pretravel, max. mm
Movement differential, max. mm
Overtravel, min. mm
Operating position, mm
Panel mount roller
plunger
Panel mount cross roller
plunger
3.63 N
1.12 N
0.4
Flexible leaf lever
Flexible roller leaf lever
1.47 N
0.14 N
4
1.3
1.6
0.05
3.6
33.3±1.2
17.5±0.8
28.6±0.8
Standard types (cont' d)
Types of actuator
Operating force, max.
Release force, min.
Pretravel, max. mm
Movement differential, max. mm
Overtravel, min. mm
Operating position, mm
Rigid lever
0.69 N
0.14 N
10
1.3
5.6
19.1±0.7
Rigid short roller lever
1.57 N
0.42 N
4.5
0.7
2.4
30.2±0.4
Rigid roller lever
0.98 N
0.2 N
7.5
1.3
3.6
30.2±0.7
One way types
Types of actuator
Operating force, max.
Release force, min.
Pretravel, max. mm
Movement differential, max. mm
Overtravel, min. mm
Free position, max. mm
Operating position, mm
Rigid short roller lever
2.23 N
0.42 N
3.5
0.4
1.5
31.8
30.2±0.4
Rigid roller lever
1.67 N
0.42 N
4.5
0.5
2.4
43.3
41.3±0.4
Reversed action types
Types of actuator
Operating force, max.
Release force, min.
Pretravel, max. mm
Movement differential, max. mm
Overtravel, min. mm
Operating position, mm
Rigid lever
1.67 N
0.27 N
5.0
0.9
5.6
19.1±0.8
Rigid short roller lever
5.30 N
1.67 N
2.5
0.4
2.0
30.2±0.5
Rigid roller lever
2.35 N
0.56 N
3.6
0.7
4.0
30.2±0.8
Oil tight types
Types of actuator
Operating force, max.
Release force, min.
Pretravel, max. mm
Movement differential, max. mm
Overtravel, min. mm
Operating position, mm
Rigid lever
0.69 N
0.14 N
10
1.5
5.6
19.1±0.7
Rigid short roller lever
1.67 N
0.42 N
4.5
0.7
2.4
30.2±0.4
Rigid roller lever
0.98 N
0.20 N
7.5
1.3
3.6
30.2±0.7
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AECTB8E 201201-T
AM1
DIMENSIONS
1. Standard types

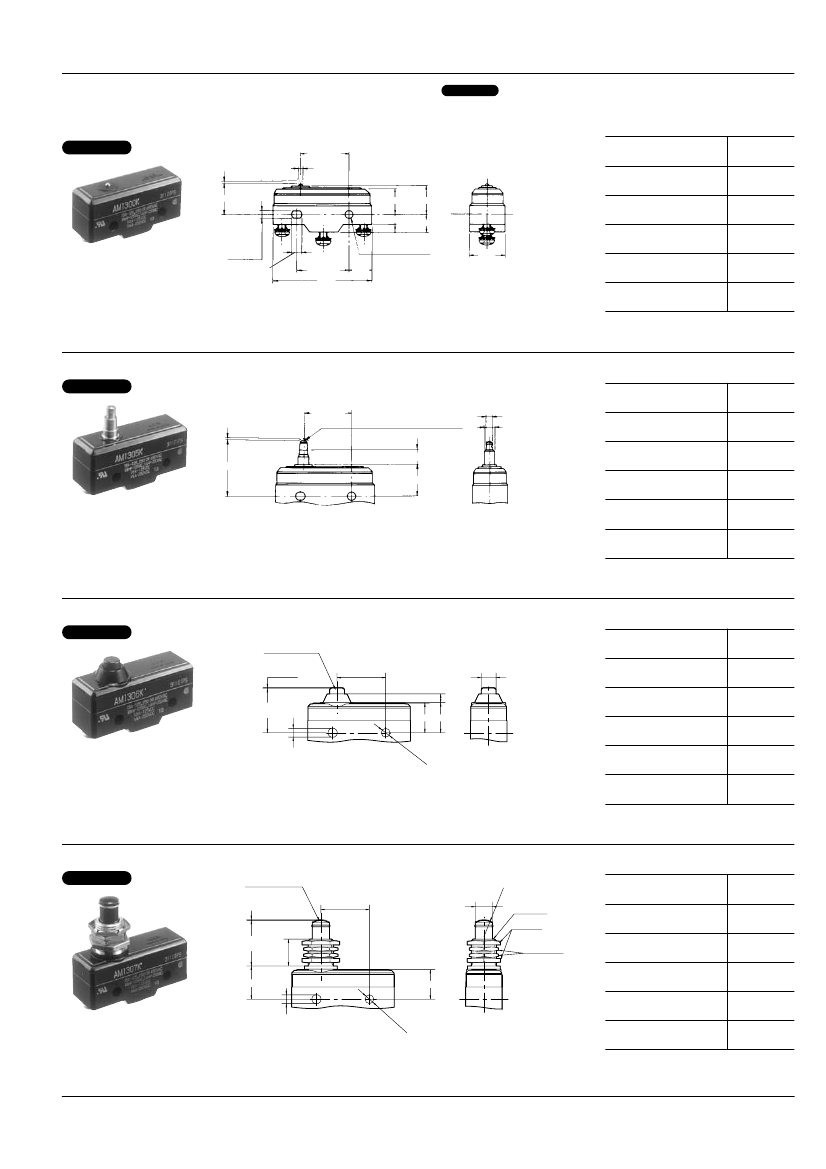

Pin plunger
CAD Data
P.T.
2.4
23.3±0.3
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e
mm General tolerance:
±0.4
Operating force,
max.
Release force,
min.
Pretravel,
max. mm
Movement differential,
max. mm
17.5
3.63 N
1.12 N
0.4
0.05
0.13
15.9±0.4
O.P.
14.6
5.4
15
9.1
AM1100F (Solder terminal)
AM1300F (Screw terminal)
4.2
+0.1
−0.05
4.5±0.1
25.4±0.1
49.2
11.9
4.2
+0.1
dia. hole
−0.05
Overtravel,
min. mm
Operating position,
mm
Overtravel plunger
CAD Data
23.3±0.3
P.T.
Plunger: Hardening steel
4 dia.
6.35 dia.
8.4
O.P.
15
Operating force,
max.
Release force,
min.
Pretravel,
max. mm
Movement differential,
max. mm
Overtravel,
min. mm
Operating position,
mm
3.63 N
1.12 N
0.4
0.05
1.5
28.2±0.5
AM1105F (Solder terminal)
AM1305F (Screw terminal)
Compact over plunger
CAD Data
Plunger: Plastic
P.T.
0.4 max.
23.3
±0.3
4.2
O.P.
21.2
±0.5
4.2
+0.10
–0.05
Operating force,
max.
7.1 dia.
3.63 N
1.12 N
0.4
0.05
1.5
21.2±0.5
14.3 14.5
Release force,
min.
Pretravel,
max. mm
Movement differential,
max. mm
Overtravel,
min. mm
Operating position,
mm
AM1106F (Solder terminal)
AM1306F (Screw terminal)
4.2
+0.10
dia.
–0.05
Panel mount plunger
CAD Data
Plunger: Plastic
P.T.
0.4 max.
23.3
±0.3
R8
8.25 dia.
M12
×
P1
Lock nut
(2 thick)
Operating force,
max.
Release force,
min.
Pretravel,
max. mm
Movement differential,
max. mm
Overtravel,
min. mm
Operating position,
mm
3.63 N
1.12 N
0.4
0.05
5.6
21.8±0.8
O.P.
21.8
±0.8
13.1
Nut (2 thick)
16
±0.5
4.2
+0.10
–0.05
14.3
AM1107F (Solder terminal)
AM1307F (Screw terminal)
4.2
+0.10
dia.
–0.05
AECTB8E 201201-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AM1

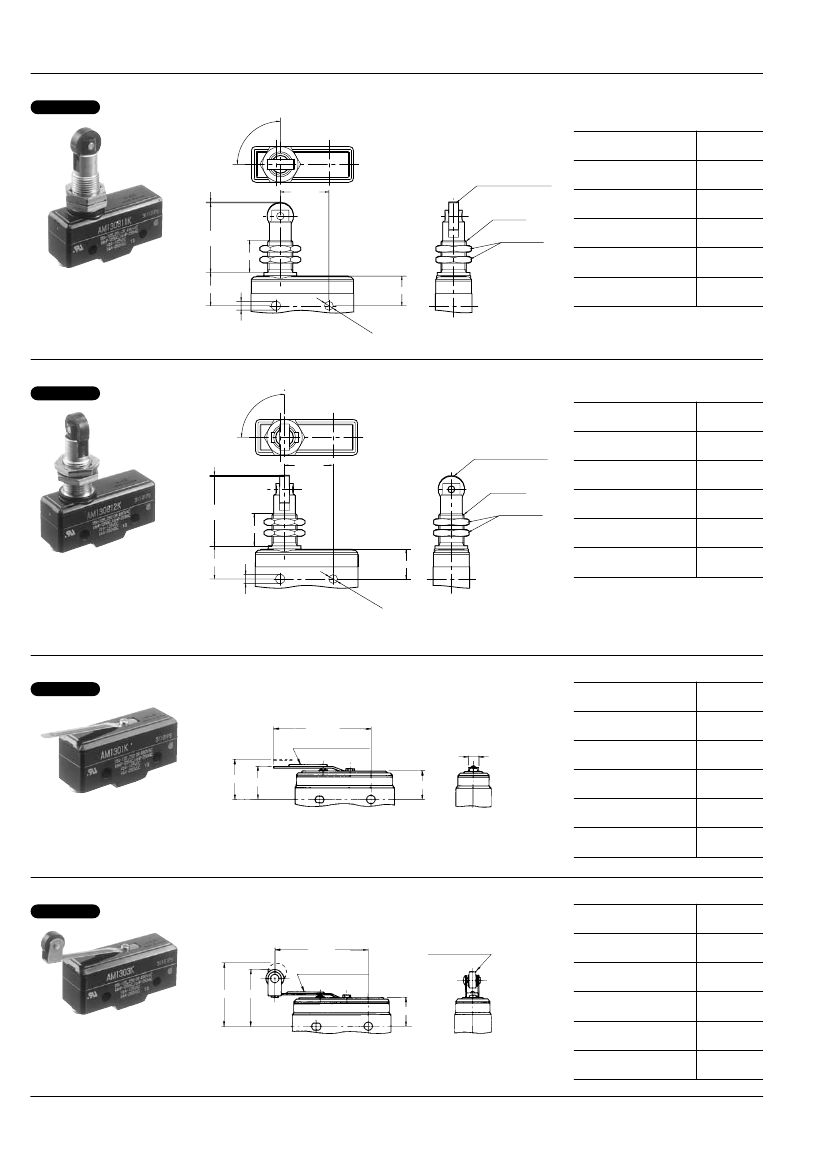

Panel mount roller plunger
CAD Data
90
°
mm General tolerance:
±0.4
P.T.
0.4 max.
23.3
±0.3
Roller 12.7 dia.
×
4.6
: Plastic
M12
×
P1
Operating force,
max.
Release force,
min.
Pretravel,
max. mm
Movement differential,
max. mm
Overtravel,
min. mm
Operating position,
mm
3.63 N
1.12 N
0.4
0.05
3.6
33.3±1.2
O.P.
33.3
±1.2
15.5
Nut (2 thick)
AM110811F (Solder terminal)
AM130811F (Screw terminal)
+0.10
16
±0.5
4.2
–0.05
14.3
4.2
+0.10
dia.
–0.05
Panel mount cross roller plunger
CAD Data
°
90
P.T.
0.4 max.
23.3
±0.3
Roller 12.7 dia.
×
4.6
: Plastic
M12
×
P1
Operating force,
max.
Release force,
min.
Pretravel,
max. mm
Movement differential,
max. mm
Overtravel,
min. mm
Operating position,
mm
3.63 N
1.12 N
0.4
0.05
3.6
33.3±1.2
O.P.
33.3
±1.2
15.5
Nut (2 thick)
+0.10
16
±0.5
4.2
–0.05
AM110812F (Solder terminal)
AM130812F (Screw terminal)
14.3
4.2
+0.10
dia.
–0.05
Dimensions and Operating characteristics are the same as those of Panel mount roller plunger type. However, the roller joins the switch body at an angle of 90°.
