Series AM1DC-Z
1 Watt | DC-DC Converter
FEATURES:
RoHS compliant SIP7 package
High efficiency up to 79%
I/O Isolation 6000 VDC
Low coupling capacity
Physical clearance of Isolation barrier 2.5mm
Safety barrier 100% production tested
Rated working voltage of 250 Vrms
Continuous Short Circuit protection
Models
Single output
Model
AM1DC-0503SH60Z
AM1DC-0505SH60Z
AM1DC-0509SH60Z
AM1DC-0512SH60Z
AM1DC-0515SH60Z
AM1DC-1203SH60Z
AM1DC-1205SH60Z
AM1DC-1209SH60Z
AM1DC-1212SH60Z
AM1DC-1215SH60Z
AM1DC-2403SH60Z
AM1DC-2405SH60Z
AM1DC-2409SH60Z
AM1DC-2412SH60Z
AM1DC-2415SH60Z
Input
Voltage
(V)
5
5
5
5
5
12
12
12
12
12
24
24
24
24
24
Output
Voltage
(V)
3.3
5
9
12
15
3.3
5
9
12
15
3.3
5
9
12
15
Output
Current max
(mA)
303
200
111
83
67
303
200
111
83
67
303
200
111
83
67
*Maximum
output ripple
& noise
(mV p-p)
200
200
150
150
150
200
200
150
150
150
150
150
120
150
150
Switching
frequency
(kHz)
25
24
24
35
36
30
30
30
31
31
43
42
44
43
45
Max
Capacitive
Load (uF)
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
Efficiency
(%)
71
75
77
76
77
70
74
76
76
76
70
71
70
72
73
Models
Dual output
Model
AM1DC-0503DH60Z
AM1DC-0505DH60Z
AM1DC-0509DH60Z
AM1DC-0512DH60Z
AM1DC-0515DH60Z
AM1DC-1203DH60Z
AM1DC-1205DH60Z
AM1DC-1209DH60Z
AM1DC-1212DH60Z
AM1DC-1215DH60Z
AM1DC-2403DH60Z
AM1DC-2405DH60Z
AM1DC-2409DH60Z
AM1DC-2412DH60Z
AM1DC-2415DH60Z
Input
Voltage
(V)
5
5
5
5
5
12
12
12
12
12
24
24
24
24
24
Output
Voltage
(V)
±3.3
±5
±9
±12
±15
±3.3
±5
±9
±12
±15
±3.3
±5
±9
±12
±15
Output
Current max
(mA)
±152
±100
±56
±42
±33
±152
±100
±56
±42
±33
±152
±100
±56
±42
±33
*Maximum
output ripple
& noise
(mV p-p)
±120
±120
±75
±75
±75
±120
±120
±75
±75
±75
±100
±100
±75
±100
±100
Switching
frequency
(kHz)
23
23
24
36
35
32
30
31
31
31
43
42
41
43
47
Max
Capacitive
Load (uF)
±100
±100
±100
±100
±100
±100
±100
±100
±100
±100
±100
±100
±100
±100
±100
Efficiency
(%)
73
75
79
77
77
72
73
75
74
76
72
69
73
72
75
*Output ripple and noise are measured without external connection of filtering capacitors. For reducing these values please refer to the recommended circuit
below.
www.aimtec.com
F 051e R6.E
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1DC-Z
1 Watt | DC-DC Converter
Input Specifications
Parameters
Voltage range
Filter
Turn on Transient process time
Start up time
Absolute Maximum Rating
Peak Input Voltage time
Quiescent Current
Rise time
Input Reflected Ripple current
5 Vin
12 Vin
24 Vin
5 Vin
12 Vin
24 Vin
Thru 12µH inductor, 5Hz to 20MHz
30-40
20
10-15
180
200
180
20
5 Vin
12 Vin
24 Vin
5 Vin
12 Vin
24 Vin
5 Vin
12 Vin
24 Vin
Nominal
5
12
24
Capacitor
Typical
4.5-5.5
10.8-13.2
21.6-26.4
760
300
280
2.8
2.3
2.24
0-7
0-15
0-28
Maximum
Units
VDC
µs
ms
VDC
100
ms
mA
µs
mA rms
Isolation Specifications
Parameters
Tested I/O voltage (rated for 1 min)
Rated working voltage
Resistance
Capacitance
Conditions
Flash tested for 3sec.
Typical
250
>1000
10
Rated
6000
Units
VDC
V rms
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Voltage balance (Dual output model)
Short Circuit protection
Short circuit restart
Line voltage regulation
Load voltage regulation
Temperature coefficient
Maximum Capacitive load
Conditions
Balanced Load
Typical
±3
±1
Continuous
Auto recovery
±1.2
±10
±0.03
Maximum
Units
%
%
For 1% change of V in
From 10 to 100% load
Single output models
Dual output models
%
%
%/
o
C
220
±100
µF
General Specifications
Parameters
Switching frequency
Clearance Distance
Operating temperature
Storage temperature
Maximum case temperature
Cooling
Humidity
Case material
Soldering temperature
Weight
Dimensions
(L x W x H)
MTBF
Conditions
100% load
Input to Output
Full Load without Derating
Typical
Maximum
Units
KHz
mm
o
C
o
C
o
C
% RH
o
See models table
2.5
-40 to +70
-40 to +125
100
Free air convection
95
Non-conductive black plastic, epoxy encapsulated (UL94V-0 rated)
1.5mm from case for 10 sec.
260
4.2
0.77 x 0.39 x 0.47 inches
19.56 x 9.80 x 12.00 mm
>2 390 000 hrs (MIL-HDBK-217 F at +25
o
C)
C
g
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load
unless otherwise specified.
www.aimtec.com
F 051e R6.E
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1DC-Z
1 Watt | DC-DC Converter
Safety Specifications
Parameters
Standards
Designed to meet IEC 60950-1: 2001
Pin Out Specifications
Pin
1
2
5
6
7
6000 VDC
Single
+ V Input
- V Input
- V Output
No pin
+ V Output
Dual
+ V Input
- V Input
- V Output
Common
+ V Output

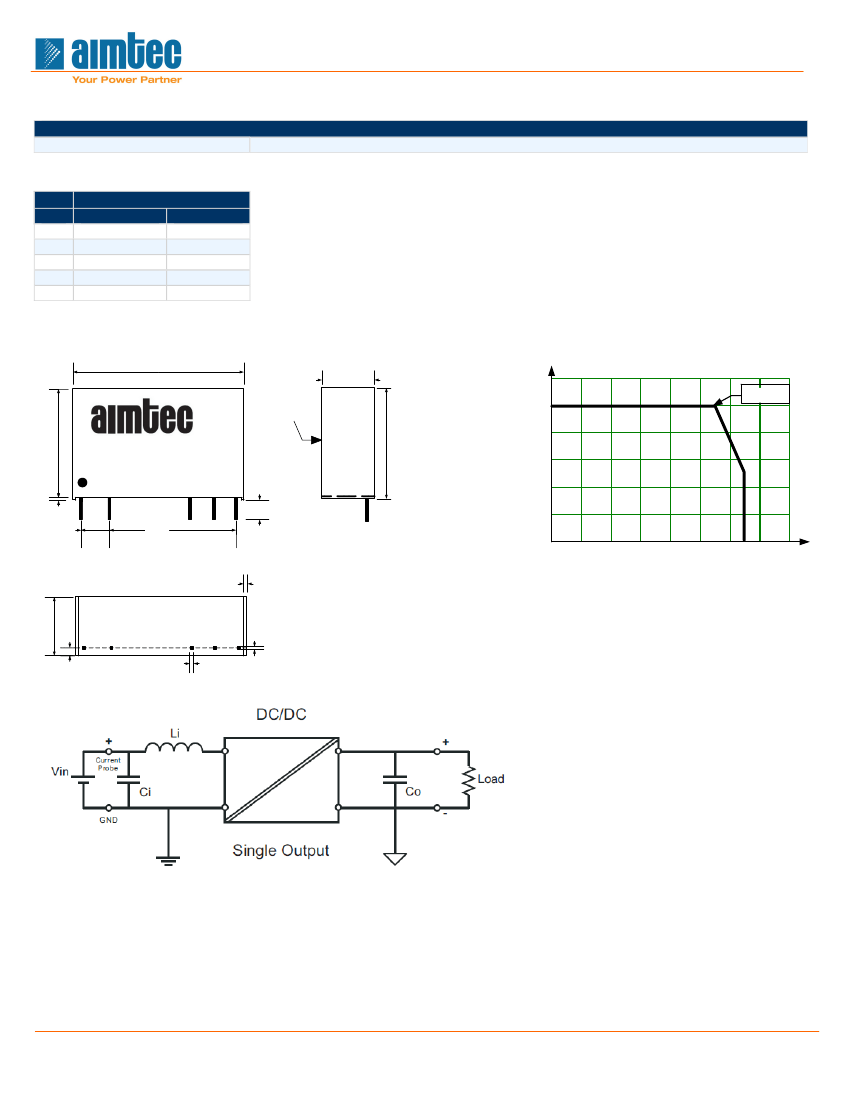

Dimensions
19.56
(0.77)
9.80
(0.39)
PRINTED
FACE
12.00
(0.47)
12.50
(0.49)
Derating
Free Air Convection
Output Power ( % )
100
70ºC
0.50
(0.02)
2.54
(0.10)
3.50
(0.14)
15.20
(0.60)
0.50
(0.02)
80
Safe Operating Area
60
40
20
0
-40 -20 0 20 40 60 80
85
100
Ambient Temperature º C
9.80
(0.39)
0.50
(0.02)
2.40
(0.09)
0.25
(0.01)
Recommended Application circuit for reducing the output ripple and noises:
Recommended Output Capacitor to reduce the converter’s ripple and noises for single output models is 4.7µF to 100µF and for dual
output models is 4.7µF to 68µF connected to both outputs.
Li with value of 12µH and Ci with value 10µF to 100µF are recommended to be connected to the input of the converter for EMI
improvement.
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
www.aimtec.com
F 051e R6.E
Tel: +1 514 620 2722
3 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
