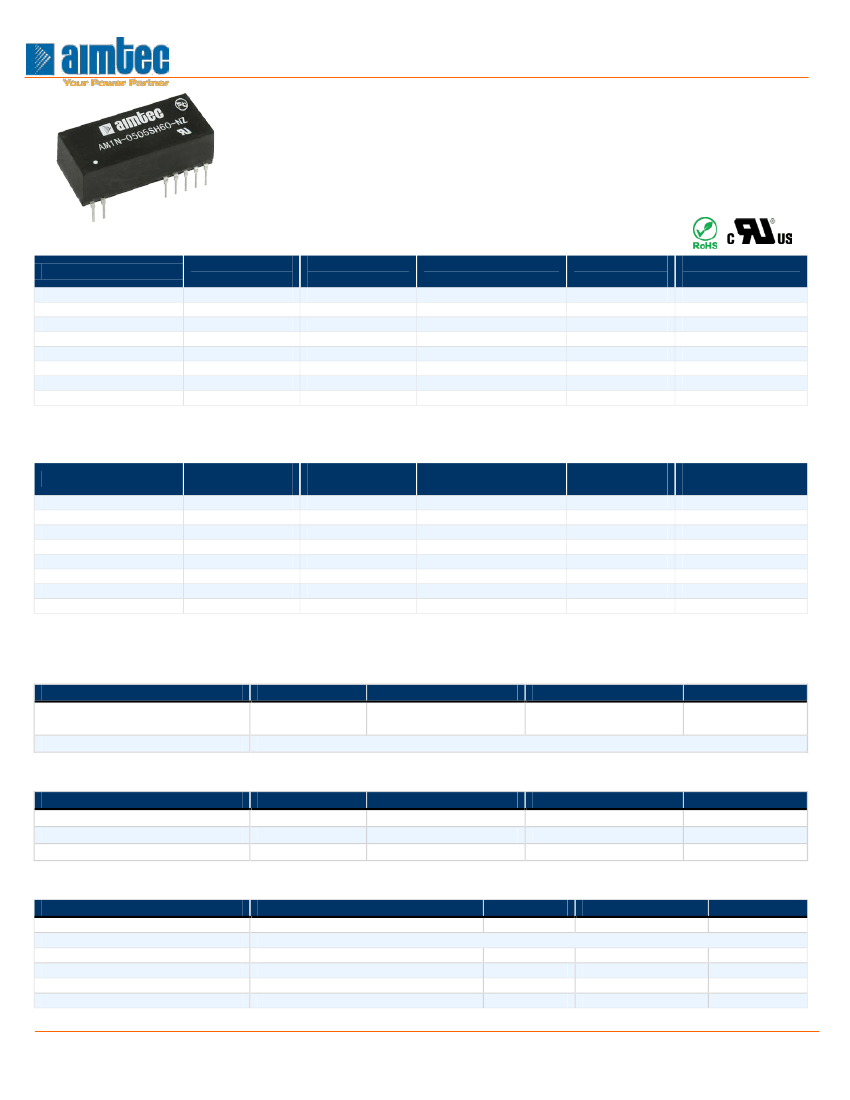

NOTE: All specifications are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load unless otherwise
specified.
Input Specifications
Parameters
Voltage range
Filter
Nominal
5
12
Typical
4.5-5.5
10.8-13.2
Capacitor
Maximum
Units
VDC
Isolation Specifications
Parameters
Tested I/O voltage
Resistance
Capacitance
Conditions
60 sec
Typical
> 1000
60
Rated
6000
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Short Circuit protection
Line voltage regulation (Single)
Line voltage regulation (Dual)
Load voltage regulation (Single)
Load voltage regulation (Dual)
Conditions
See tolerance envelope graph
For 1.0% of Vin
For 1.0% of Vin
Load 10 – 100%
Load 10 – 100%
Typical
Momentary (1sec)
±1.2
±1.2
10
10
Maximum
Units
%
%
%
%
www.aimtec.com
F 051e R6.C
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only

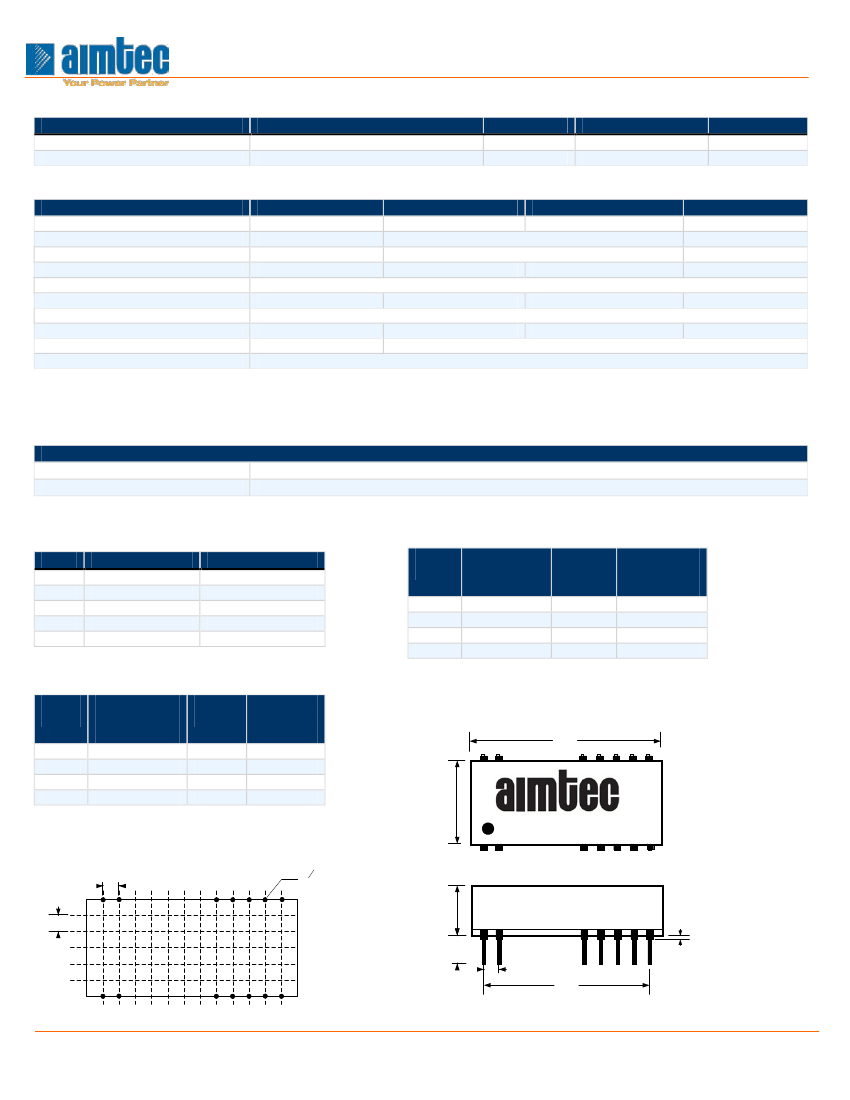

Series AM1N-NZ
1 Watt | DC-DC Converter
Output Specifications (continued)
Parameters
Temperature coefficient
Ripple & Noise
Conditions
At 20MHz Bandwidth
Typical
±0.03
75
Maximum
Units
%/ C
mV p-p
o
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Max Case temperature
Cooling
Humidity
Case material
Weight
Dimensions
(L x W x H)
MTBF
Conditions
100% load
Without derating
Typical
250
-40 to +85
-55 to +125
Maximum
Units
KHz
o
C
o
C
o
C
%
95
Free air convection
90
Plastic UL94-VO
g
16
1.27 x 0.58 x 0.37 inches
32.30 x 14.70 x 9.40mm
o
>1 211 000 hrs (MIL-HDBK -217F, Ground Benign, t=+25 C)
NOTE: All specifications are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load unless otherwise
specified.
Safety Specifications
Parameters
Agency approvals
Standards
cULus
UL60950-1
Pin Out Specifications
Pin
1
2
8,17
10,15
12,13
External capacitor – Single output
Dual
+ V Input
- V Input
-V Output
Common
+V Output
Single
+ V Input
- V Input
N.C.
-V Output
+V Output
Vin
(VDC)
5
12
24
-
External
capacitor
(µF)
4.7
2.2
1
Vout
(VDC)
5
9
12
15
External
capacitor
(µF)
10
4.7
2.2
1
External capacitor – Dual output
Vin
(VDC)
5
12
24
-
External
capacitor
(µF)
4.7
2.2
1
-
Vout
(VDC)
5
9
12
15
External
capacitor
(µF)
4.7
2.2
1
0.47
Dimensions
Top
View
32.30
(1.27)
14.70
(0.58)
Footprint
2.54
(0.10)
2.54
(0.01)
1.00 0 + 0.15/-0
Side
View
9.40
(0.37)
4.00
(0.16)
2.54
(0.10)
27.94
(1.10)
0.65
(0.03)
www.aimtec.com
F 051e R6.C
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1N-NZ
1 Watt | DC-DC Converter

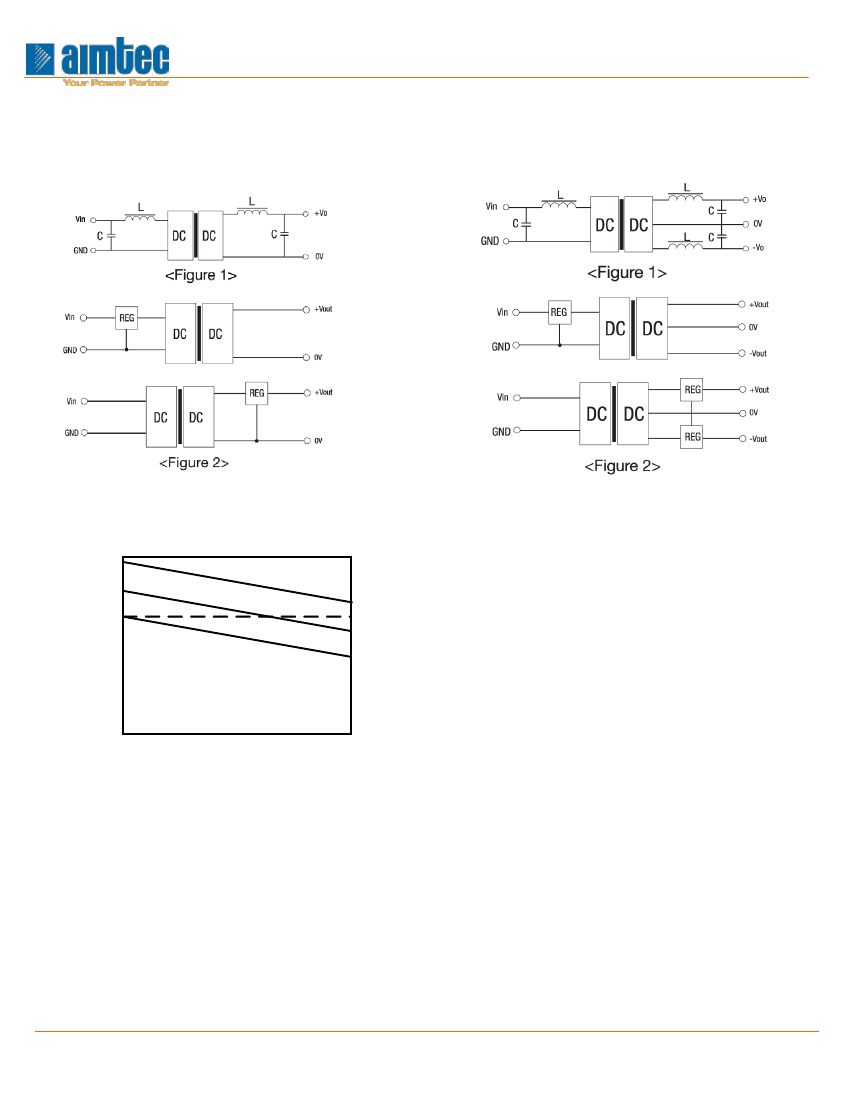

Block diagram single output
Block diagram dual output
Tolerance Envelope Graph
+10%
+5%
Output Voltage (%)
Typic
a
l load
line
+2.5%
-2.5%
-7.5%
Nominal
Voltage
10%
50%
Output Current (%)
100%
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
