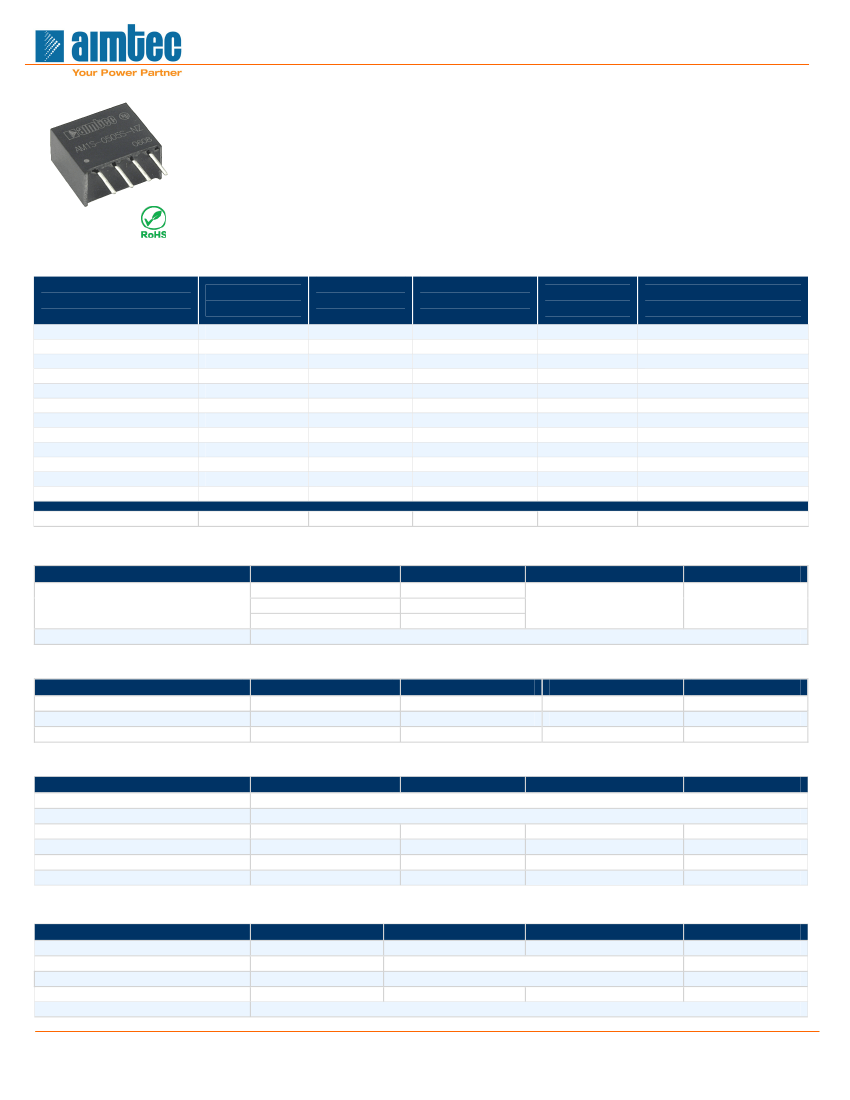

Series AM1S-NZ
1 Watt | DC-DC Converter
FEATURES:
•
•
•
•
RoHS compliant
4 Pin SIP Package
Low ripple and noise
High efficiency up to 81%
•
•
•
Operating temperature -40
o
C to + 85
o
C
Input / Output isolation 1000 and 3000VDC
Pin compatible with multiple manufacturers
Models
Single output
Model
AM1S-0505S-NZ
AM1S-0509S-NZ
AM1S-0512S-NZ
AM1S-0515S-NZ
AM1S-1205S-NZ
AM1S-1209S-NZ
AM1S-1212S-NZ
AM1S-1215S-NZ
AM1S-2405S-NZ
AM1S-2409S-NZ
AM1S-2412S-NZ
AM1S-2415S-NZ
AM1S-0505SH30-NZ
Input Voltage
(V)
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
4.5-5.5
Output
Voltage
(V)
5
9
12
15
5
9
12
15
5
9
12
15
5
Output Current
max
(mA)
200
110
83
67
200
110
83
67
200
110
83
67
200
Isolation
(VDC)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
3000
Efficiency
(%)
78
79
80
78
78
80
81
79
79
80
81
79
70
Input Specifications
Parameters
Voltage range
Filter
Nominal
5
12
24
Typical
4.5-5.5
10.8-13.2
21.6-26.4
Capacitor
Maximum
Units
VDC
Isolation Specifications
Parameters
Tested I/O voltage
Resistance
Capacitance
Conditions
60 sec
Typical
> 1000
60
Rated
1000 or 3000
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Short Circuit protection
Line voltage regulation (Single)
Load voltage regulation (Single)
Temperature coefficient
Ripple & Noise
Conditions
For 1.0% of Vin
Load 10 – 100%
At 20MHz Bandwidth
Typical
Maximum
Units
%
%
%/
o
C
mV p-p
See tolerance graph
Momentary (1 sec)
±1.2
10
±0.03
75
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Max Case temperature
Cooling
www.aimtec.com
F 051e R11.I
Conditions
100% load
Without derating
Typical
150
-40 to +85
-55 to +125
Maximum
Units
KHz
o
C
o
C
o
C
90
Free air convection
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1S-NZ
1 Watt | DC-DC Converter
General Specifications (continued)
Parameters
Conditions
Typical
Maximum
Units
%
Humidity
90
Case material
Plastic UL94-VO
Weight
1.8
g
Dimensions
(L x W x H)
0.46 x 0.24 x 0.37 inches 11.70 x 6.00 x 9.50 mm
MTBF
>1 000 000 hrs (MIL-HDBK -217F, Ground Benign, t=+25
o
C)
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Safety Specifications
Parameters
Standards
Agency approvals
IEC60950-1 :2001
UL and CE for 1000VDC models

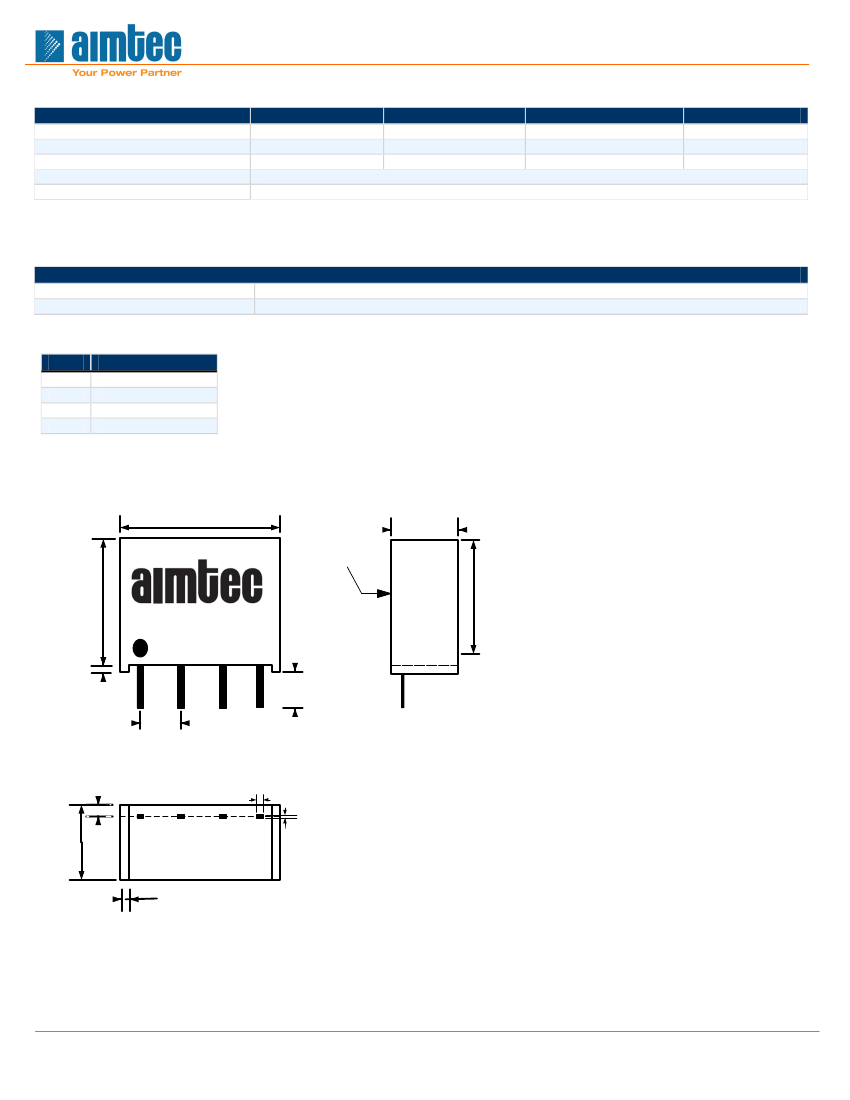

Pin Out Specifications
Pin
1
2
3
4
Single
- V Input
+V Input
-V Output
+V Output
Dimensions
11.70
(0.46)
PRINTED
FACE
9.50
(0.37)
10.00
(0.39)
6.00
(0.24)
0.50
(0.02)
2.54
(0.10 )
4.10
.
(0.16)
0.90
(0.04)
0.50
(0.02)
0.30
(0.01)
6.00
(0.24)
0.50
(0.02)
www.aimtec.com
F 051e R11.I
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1S-NZ
1 Watt | DC-DC Converter

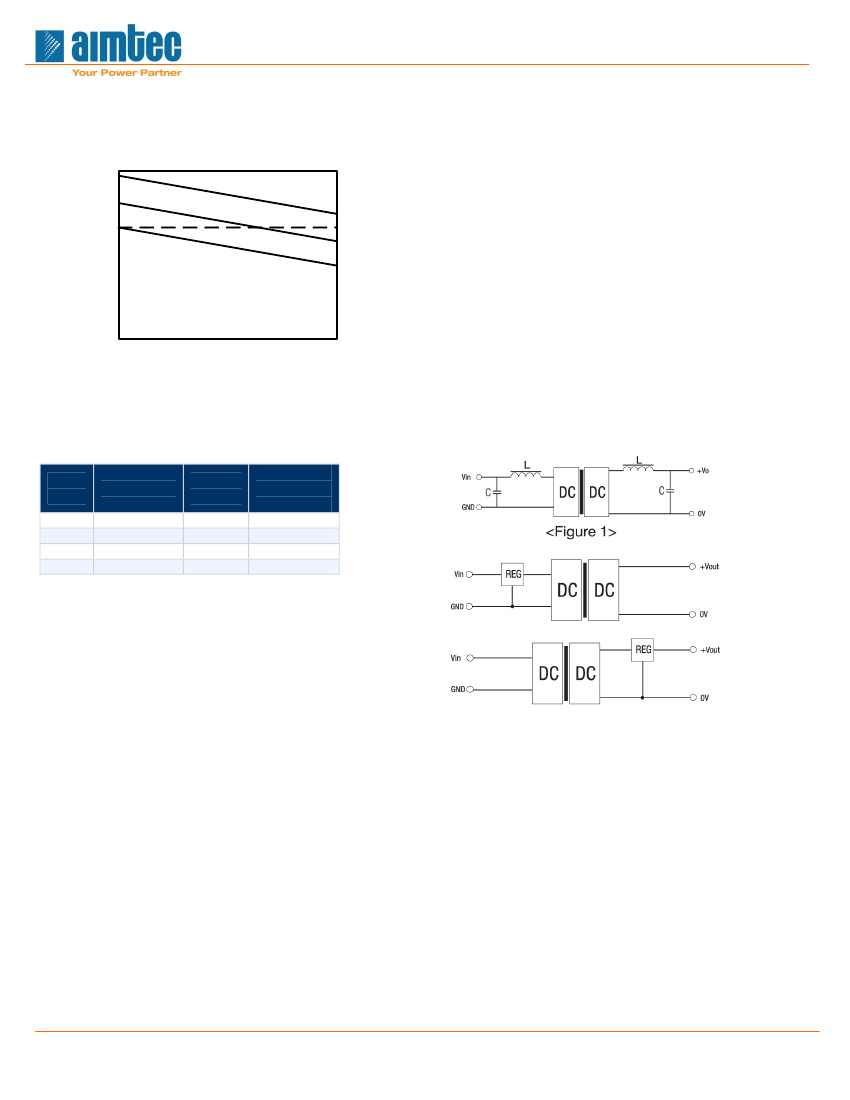

Typical Characteristics
Tolerance Envelope Graph
+10%
+5%
Output Voltage (%)
T yp ic
al loa
d
line
+2.5%
-2.5%
-7.5%
Nominal
Voltage
10%
50%
Output Current (%)
100%
External capacitor
Vin
(VDC)
5
12
24
-
Filtering
Vout
(VDC)
5
9
12
15
External
capacitor
(uF)
4.7
2.2
1
External
capacitor
(uF)
10
4.7
2.2
1
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer
controlled by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary
based on the date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C,
humidity<75%, nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all
internal components and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for
release.
6.
This product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications
which necessitate specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at
www.aimtec.com.
www.aimtec.com
F 051e R11.I
Tel: +1 514 620 2722
3 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
