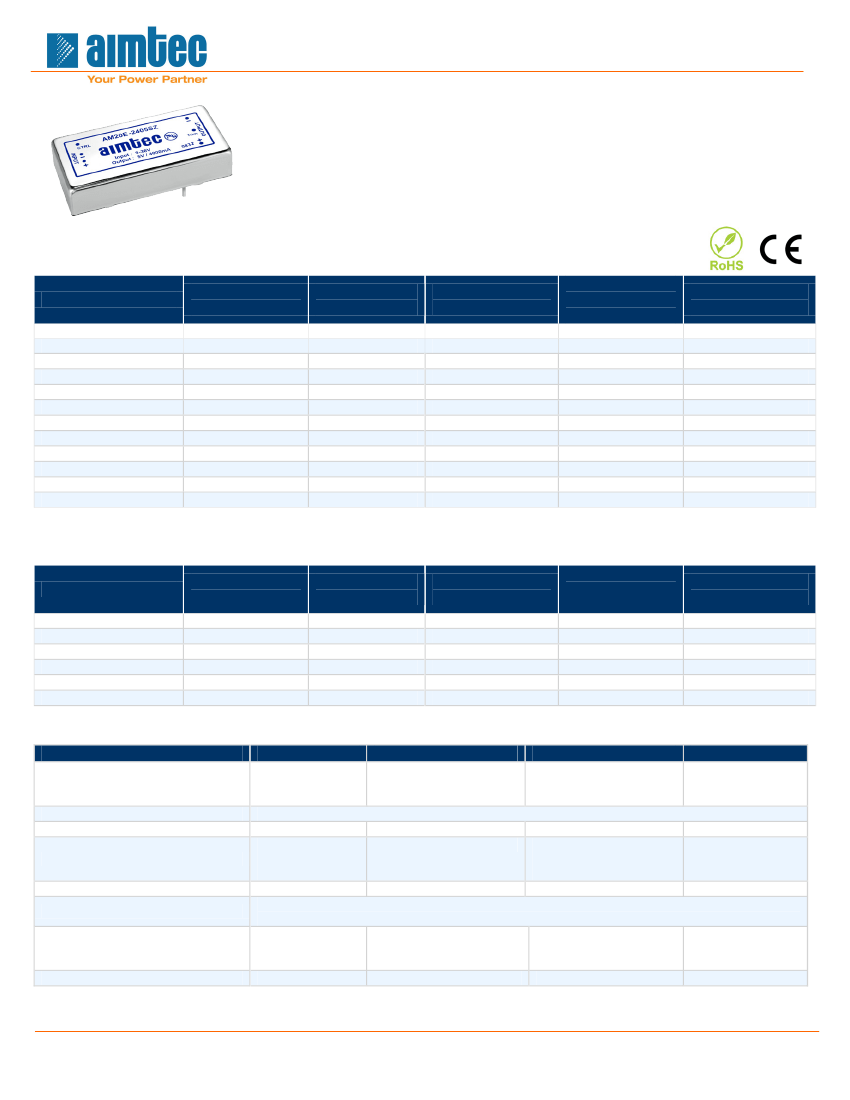

DC/DC Converter; Product Weight (grams): 31; Input voltage min (V): 18; Input voltage max (V): 36; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Dual; Output Power (W): 20; Max Output current (A): ±0.835; Efficiency (%): 90; Max Capacitive load (µF): ±470; Package type: 2x1; Mounting: PCB; W (in): 1; L (in): 2; H (in): 0.4; W (mm): 25.4; L (mm): 50.8; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1600; EMC compliance 2: EN 55032 Class A; Case material: Copper; Application 4 (building automation/IoT): 1; MTBF (h): 684000; Derating : 70; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.2; Load Regulation %: ±0.2; Ripple & Noise (mV p-p): 75; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous; On/Off Control: 1
DC/DC Converter; Product Weight (grams): 31; Input voltage min (V): 18; Input voltage max (V): 36; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Dual; Output Power (W): 20; Max Output current (A): ±0.835; Efficiency (%): 90; Max Capacitive load (µF): ±470; Package type: 2x1; Mounting: PCB; W (in): 1; L (in): 2; H (in): 0.4; W (mm): 25.4; L (mm): 50.8; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1600; EMC compliance 2: EN 55032 Class A; Case material: Copper; Application 4 (building automation/IoT): 1; MTBF (h): 684000; Derating : 70; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.2; Load Regulation %: ±0.2; Ripple & Noise (mV p-p): 75; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous; On/Off Control: 1
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Conditions
Typical
Maximum
Units
Safety Specifications
Parameters
Agency Approvals
CE
EN55022 Class A (see note A)
EN61000-4-2
Perf. Criteria B
EN61000-4-3
Perf. Criteria A
EN61000-4-4 Perf. Criteria B (see note B)
EN61000-4-5
Perf. Criteria B (see note B)
EN61000-4-6 Perf. Criteria A
EN61000-4-8 Perf. Criteria A
NOTE: also designed to meets IEC/EN 60950-1
Tel: +1 514 620 2722
2 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Standards
www.aimtec.com
F 051e R6.D
20 Watt | DC-DC Converter
Note A:
Input filter components (C1, L , see circuit below) are used to help meet conducted emissions requirement for the module.
These components should be mounted as close as possible to the module; and all leads should be minimized to decrease radiated noise
.
Series AM20E-Z
Note B:
An external filter capacitor is required if the module has to meet EN61000-4-4 and EN61000-4-5.
The filter capacitor suggested value of 220uF/100V.

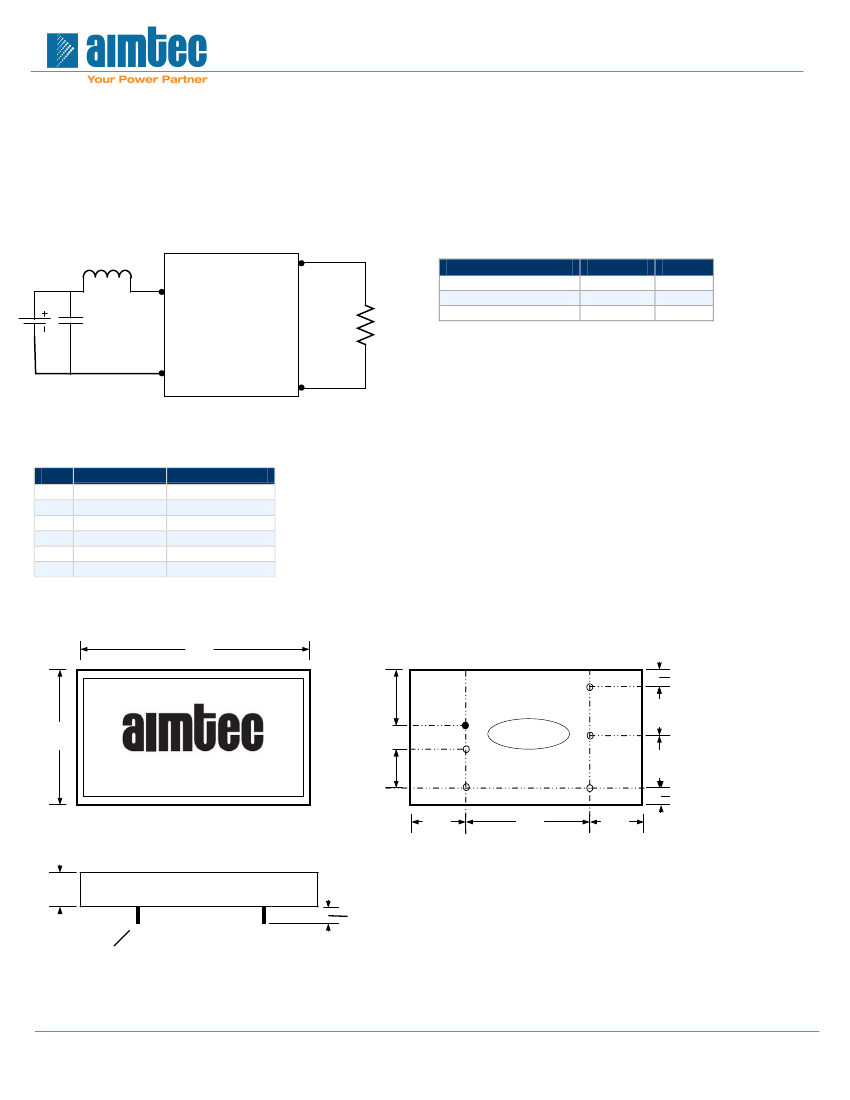

Test Circuits
Conducted Emissions
+Vout
L
+Vin
External parts table
Model
AM20E-12XXXZ
AM20E-24XXXZ
AM20E-48XXXZ
C1
C1
DC/DC
Converter
Load
330uF
220uF
220uF
L
12uH
12uH
12uH
-Vin
-Vout
Pin Out Specifications
Pin
1
2
3
4
5
6
Single
On/Off Control
- V Input
+ V Input
- V Output
Trim
+ V Output
Dual
On/Off Control
- V Input
+ V Input
- V Output
Common
+ V Output
Dimensions
50.80
(2.00)
10.16
(0.40)
6
3
2
1
15.24
(0.60)
20.32
(0.80)
25.40
(1.00)
7.62 5.08
(0.30) (0.20)
Bottom View
5
15.24
(0.60)
DIA
1.00
(0.04)
5.08
(0.20)
Notes:
All dimensions are typical
in millimeters (inches).
Tolerance ±0.25 (±0.01)
Pin diameter: 1.0 ±0.05 ( 0.04 ±0.002 )
Pin pitch tolerance: ±0.35 ( ±0.014 )
Case Tolerance: ±0.5 ( ±0.02 )
www.aimtec.com
F 051e R6.D
10.16
(0.40)
Tel: +1 514 620 2722
3 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
2.54
(0.10)
4
10.16
(0.40)
10.16
(0.40)
2.54
(0.10)
20 Watt | DC-DC Converter

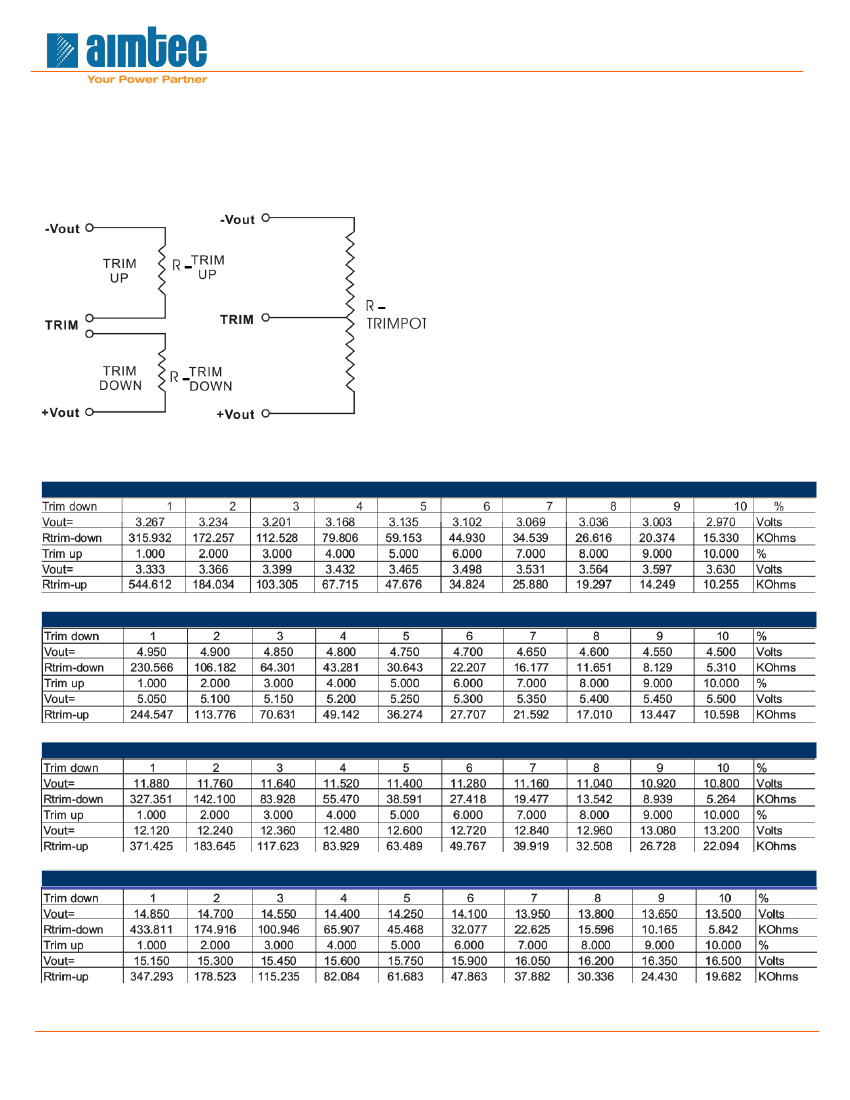

Trimming
Output voltage on single output models can be externally trimmed by utilizing the methods as shown below
Series AM20E-Z
Fixed Resistor
Variable Potentiometer
Trim Table
AM20E(W)-xx03SZ
AM20E(W)-xx05SZ
AM20E(W)-xx12SZ
AM20E(W)-xx15SZ
www.aimtec.com
F 051e R6.D
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
20 Watt | DC-DC Converter
Derating
Free Air Convection
70 º
C
Series AM20E-Z
100
Output Power (%)
80
60
40
20
0
- 40 - 20
Safe Operating Area
0
20
40
60
80
85
100
Ambient Temperature º C
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
