LHD-B-24-RA-SL-GD15 datasheet, PDF

Datasheet> All Categories > The connector> The connector> LHD-B-24-RA-SL-GD15

LHD-B-24-RA-SL-GD15: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

LHD-B-24-RA-SL-GD15 Overview

Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

LHD-B-24-RA-SL-GD15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.232 inch
subject depth	0.402 inch
body length	1.571 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
insulator material	NYLON
Manufacturer's serial number	LHD-B
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation option 2	SHORT LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

Pos.

10.0

12.0

14.0

16.0

20.0

22.0

24.0

26.0

25.9

27.9

29.9

31.9

35.9

37.9

39.9

41.9

Pos.

8.0 30

10.0 32

12.0 34

14.0 40

18.0 44

20.0 50

22.0 60

24.0

30.0

32.0

34.0

40.0

44.0

50.0

60.0

45.9

47.9

49.9

55.9

59.9

65.9

75.9

28.0

30.0

32.0

38.0

42.0

48.0

58.0

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Withstanding:

Operating temp.:

1 amp

Brass

Gold or gold flash over nickel

30 milliohms max.

Nylon 9T, UL 94V-0

3,000 megohms min.

500 VAC/1 min.

-40°C to +105°C

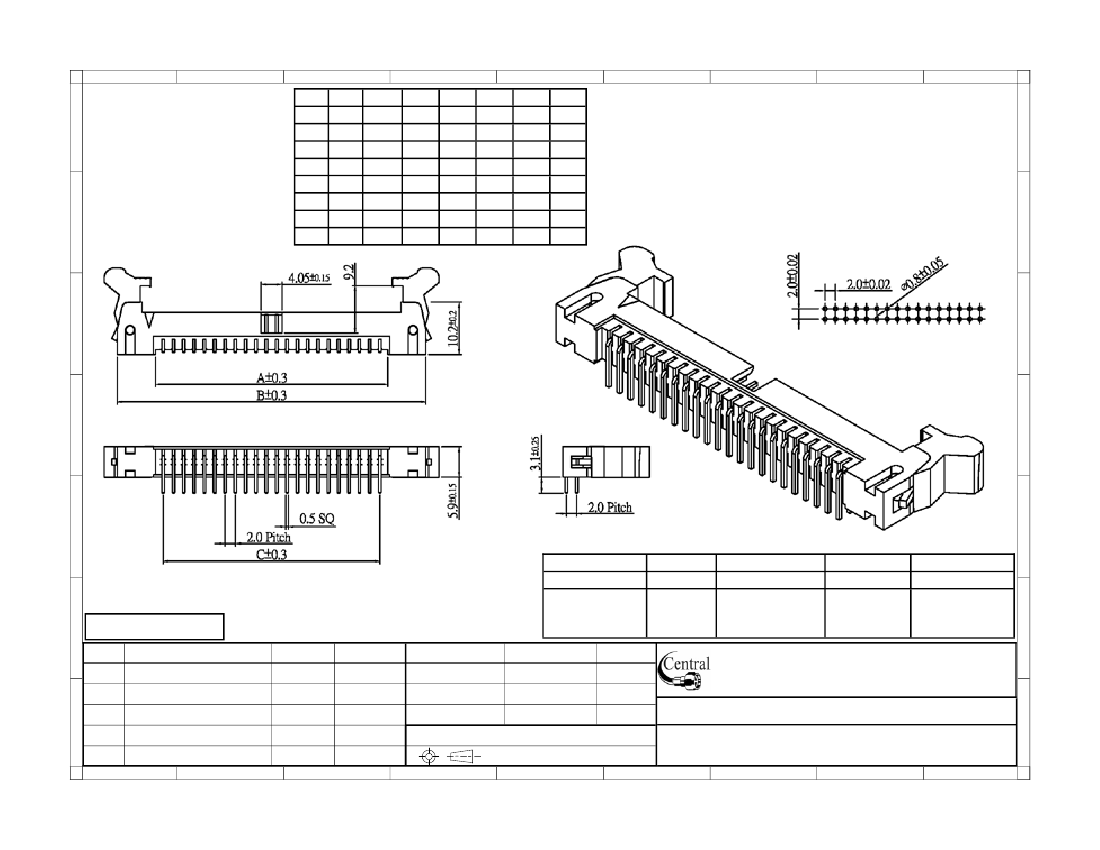

PC Board Layout

RoHS compliant

Rev.

Description

Date

Approved

Series

Positions

Mounting

Latch

Plating

LHD-B

2mm latch header 10-60 (See RA=Right angle

SL=Short latch GDXX=Gold

chart)

ST=Straight

LL=Long latch XX=Flash if blank;

SM=Surface mount

05, 10, 15, 30µ”

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

LHD-B-XX-RA-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Shrouded header, 2.0mm pitch, dual row, right angle

with short lever
