SWT-M-24-A3-B3-T1-SS-HW2 datasheet, PDF

SWT-M-24-A3-B3-T1-SS-HW2: DescriptionToggle Switch, DPDT, (on)-off-(on), Momentary, 5A, 28VDC, Solder Terminal, Panel Mount,; CategoryMechanical and electronic products switch; File Size570KB，13 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

SWT-M-24-A3-B3-T1-SS-HW2 Overview

Toggle Switch, DPDT, (on)-off-(on), Momentary, 5A, 28VDC, Solder Terminal, Panel Mount,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Executor completed	CHROME
Actuator length	0.62 inch
Actuator material	BRASS
body width	11.43 mm
body height	8.89 mm
Body length or diameter	12.7 mm
Nozzle length	0.28 inch
Casing type	1/4-40
center contact material	BRASS
Center contact plating	SILVER
Contact (AC) maximum rated R load	5A@120VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Contact function	(ON)-OFF-(ON)
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
End contact material	BRASS
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Solderability	HAND
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	TOGGLE SWITCH
Terminal length	0.156 inch
Terminal material	BRASS
Termination type	SOLDER

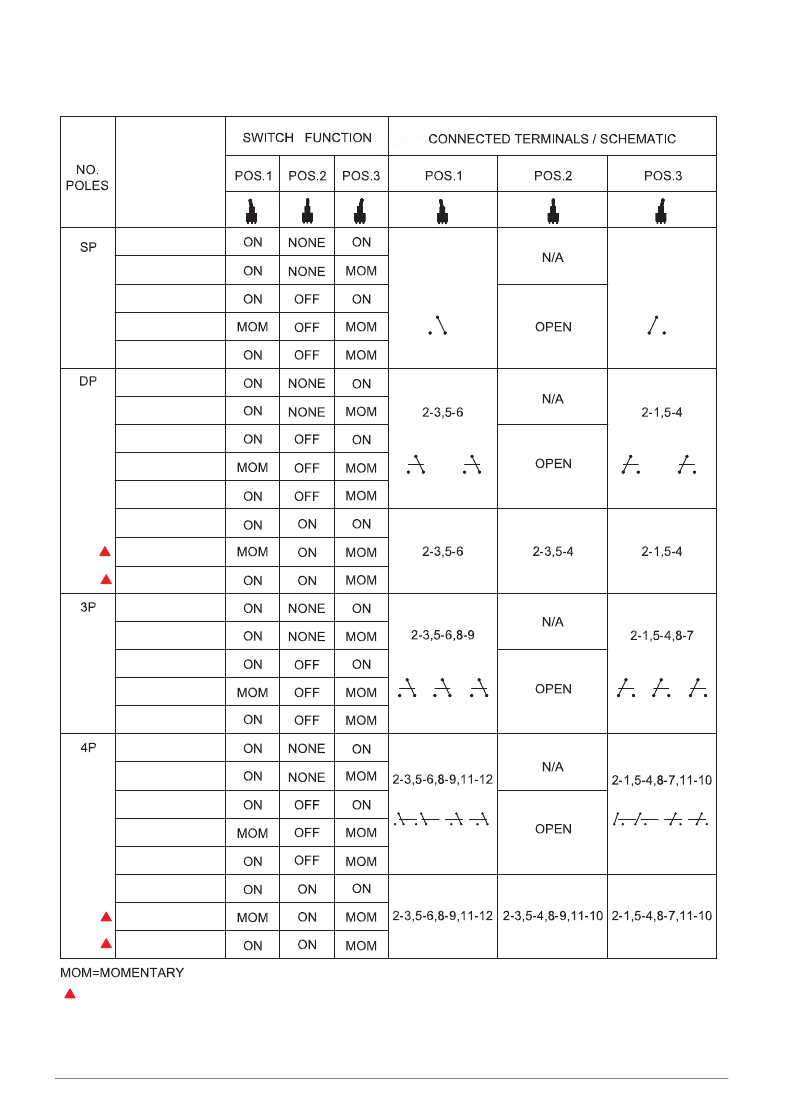

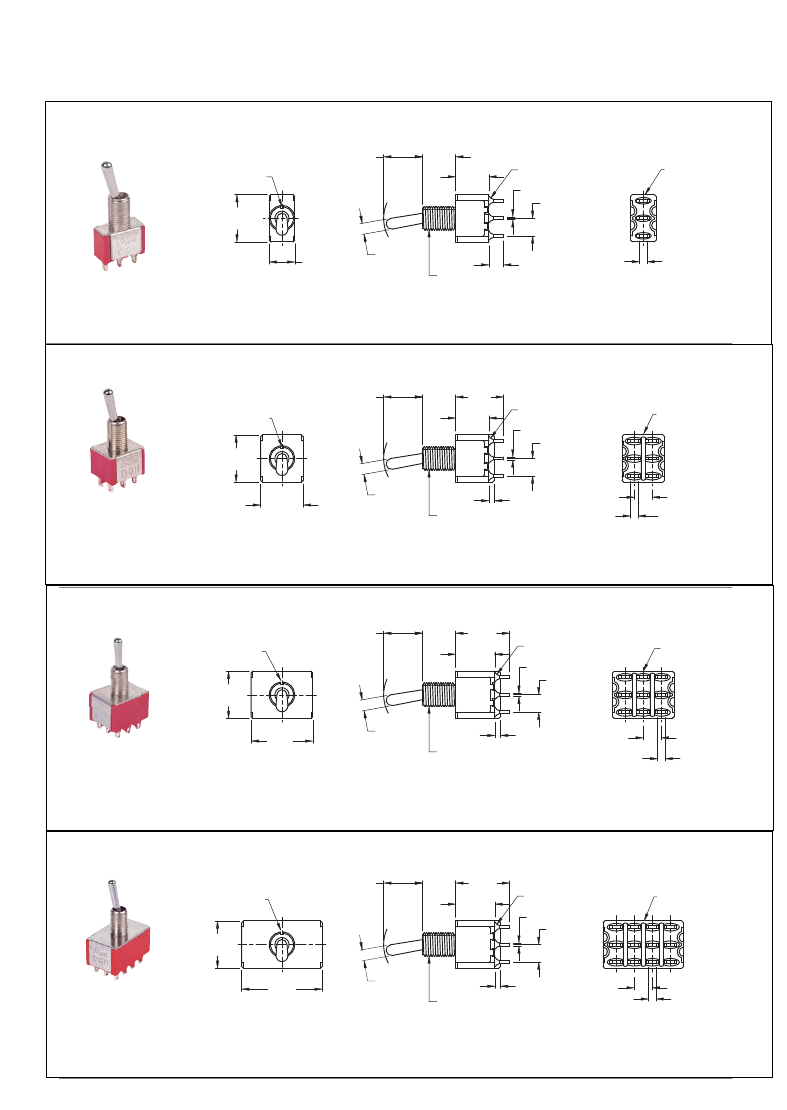

Product Specification

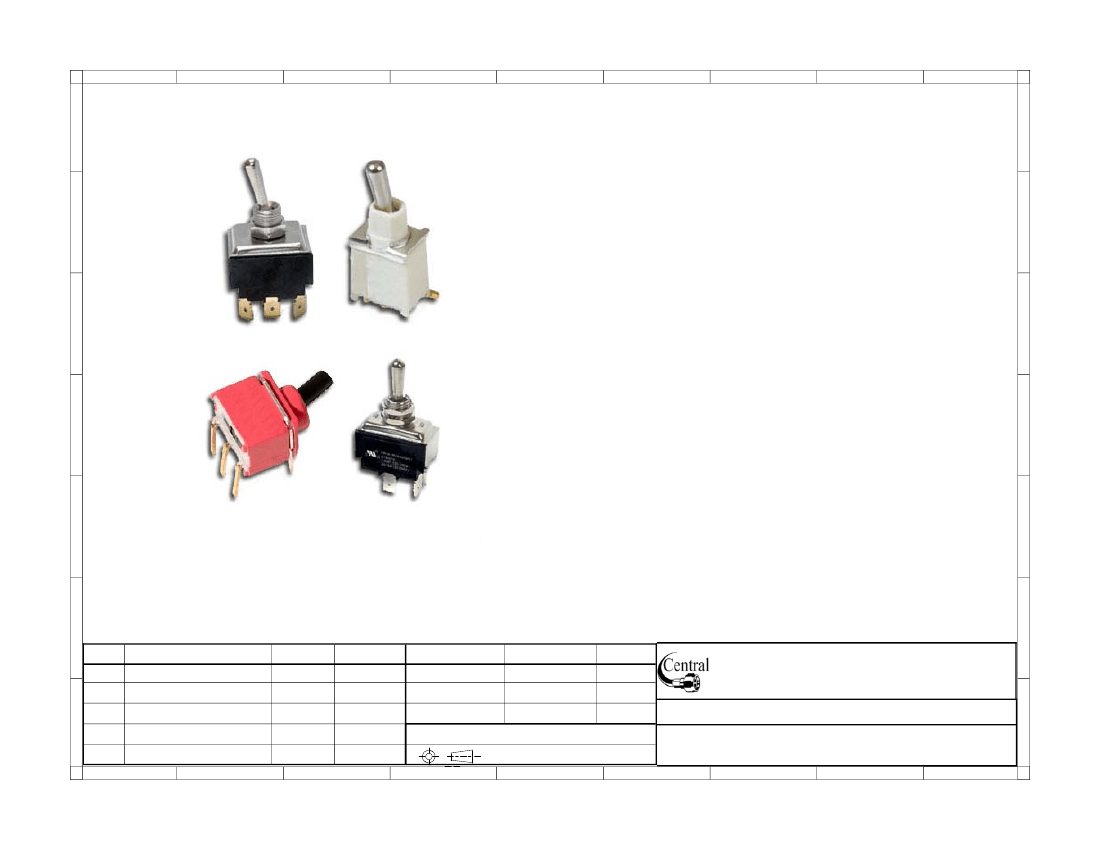

Miniature Toggle Switches

Part Number:

SWT-M-XX-AX-BX-TX-XX-X

Central Components Manufacturing, 440 Lincoln Blvd., Middlesex, NJ 08846 Ph:732-469-5720 Fx: 732-469-1919
