KNA060-321T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KNA060-321T

KNA060-321T: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size157KB，4 Pages; ManufacturerAdvanced Interconnections Corp.

Download Datasheet Parametric View All

KNA060-321T Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

KNA060-321T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NONE
subject depth	0.07 inch
body length	1.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
insulator material	POLYAMIDE
JESD-609 code	e0
Manufacturer's serial number	KNA
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	400 °C
Minimum operating temperature	-269 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	60

Preview

Download Datasheet

View All

Board to Board

Interconnections

5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com

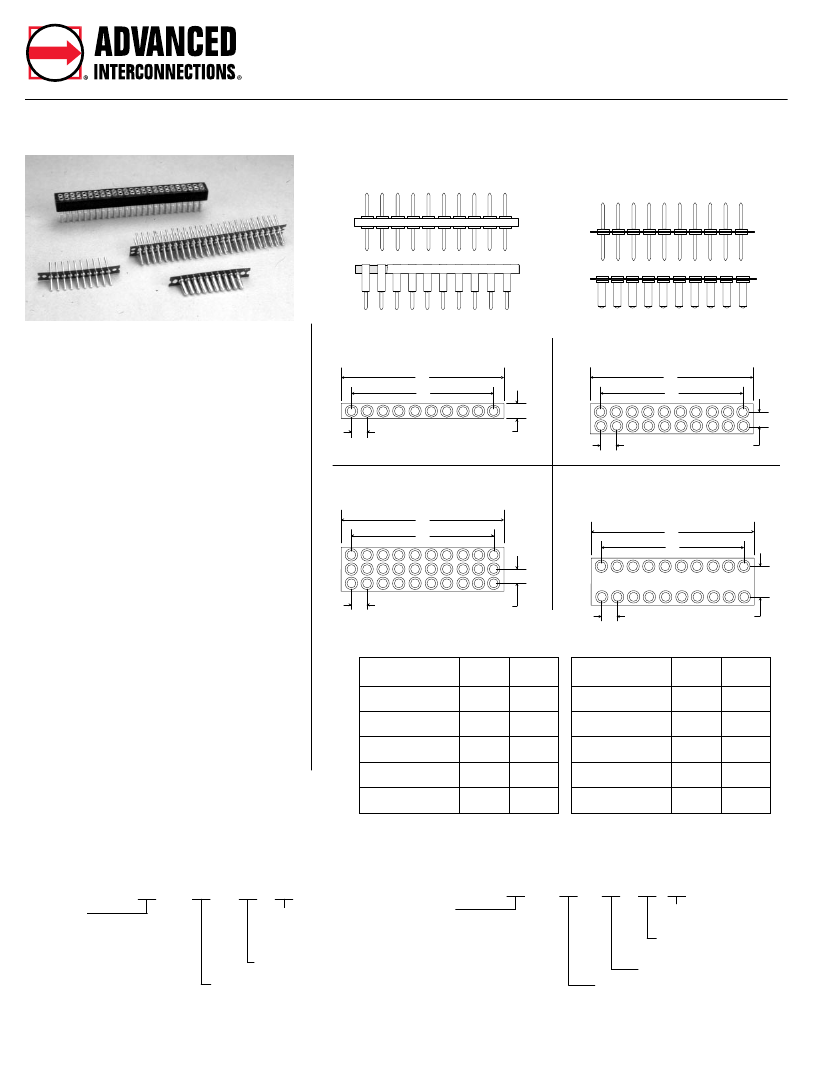

.050” (1.27mm) Pitch Board to Board Interconnections

Molded

Adapter & Socket

Peel-A-Way

Adapter & Socket

Features:

• Sockets and adapters are designed in

mating pairs.

• .050” (1.27mm) and .100” (2.54mm)

centers spacing row to row.

• High reliability screw machine terminals

with closed end construction for 100% anti-

wicking of solder.

• For surface mount board to board options

consult factory.

Single Row

SDA, NBA, KBA - Male / SDS, KBS - Female

Dual Row

.050" (1.27mm) Spacing Row to Row

KNA, DDA - Male / DDS, KNS - Female

.050 Typ.

(1.27)

.100 Typ.

(2.54)

.050 Typ.

(1.27)

.050 Typ.

(1.27)

Triple Row

KTA - Male / KTS - Female

Dual Row

.100" (2.54mm) Spacing Row to Row

DAD, KDA - Male / DD, KDD - Female

P/N Ex. KTS030-227TG

Terminals and Contacts:

Terminal: Brass - Copper Alloy (C36000),

ASTM-B-16

Contact: Beryllium Copper - Copper Alloy

(C17200), ASTM-B-194

P/N Ex. KDA020-131T

Plating:

Terminal: Gold over Nickel or

Tin-Lead over Nickel

Contact: Gold over Nickel or

Tin-Lead over Nickel

.050 Typ.

(1.27)

.050 Typ.

(1.27)

.050 Typ.

(1.27)

.100 Typ.

(2.54)

Molded

# of Pins

Per Row

.550

(13.97)

1.050

(26.67)

1.550

(39.37)

2.050

(52.07)

2.550

(64.77)

Peel-A-Way

.450

(11.43)

.950

(24.13)

1.450

(36.83)

1.950

(49.53)

2.450

(62.23)

# of Pins

Per Row

.650

(16.51)

1.150

(29.21)

1.650

(41.91)

2.150

(54.61)

2.650

(67.31)

.450

(11.43)

.950

(24.13)

1.450

(36.83)

1.950

(49.53)

2.450

(62.23)

Body Material:

Molded -

Glass Filled Thermoplastic

Polyester (P.B.T.), U.L. Rated 94V-O, -60˚C

to 140˚C (-76˚F to 284˚F)

High Temp. Molded -

High temp. glass

filled thermoplastic, U.L. Rated 94V-O,

-60˚C to 260˚C (-76˚F to 500˚F)

Peel-A-Way

Polyimide Film, Temp. range

-269˚C to 400˚C (-452˚F to 752˚F)

Multiply number of rows times number of pins

per row for total pin count to order.

How To Order - Male

KBA

Body Type

KBA - Single Row Peel-A-Way

KNA - Dual Row Peel-A-Way

KTA - Triple Row Peel-A-Way

*KDA - Dual Row Peel-A-Way

(.100/(2.54) Pitch Between Rows)

How To Order - Female

KBS

Body Type

SDS/HSDS - Single Row Molded

KBS - Single Row Peel-A-Way

DSS/HDSS - Dual Row Molded

KNS - Dual Row Peel-A-Way

KTS - Triple Row Peel-A-Way

*DD - Dual Row Molded

(.100/(2.54) Pitch Between Rows)

010

-131

010

-227

Contact Plating

G - Gold T - Tin-Lead

Terminal Plating

G - Gold T - Tin-Lead

Terminal Plating

G - Gold

T - Tin-Lead

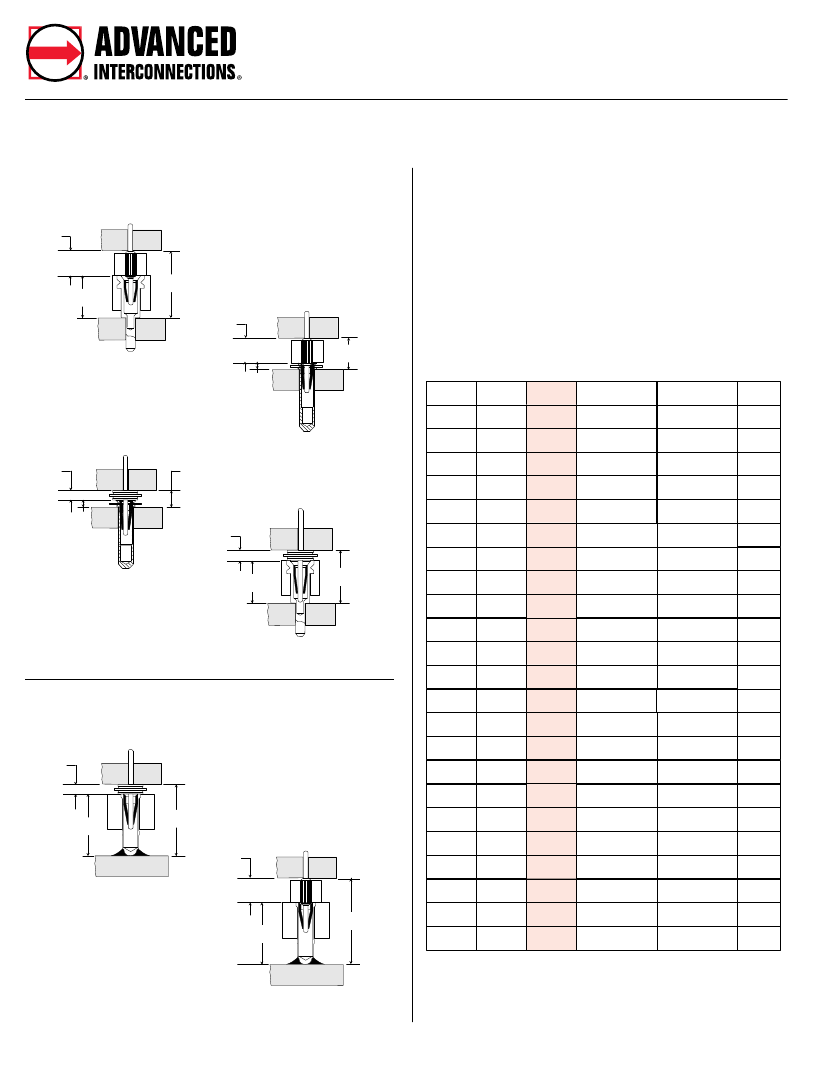

Terminal Type

Total Number of Pins

10,20,30,40 & 50 positions

per row standard. For other

lengths consult factory.

*KDD - Dual Row Peel-A-Way

(.100/(2.54) Pitch Between Rows)

Terminal Type

Total Number of Pins

10,20,30,40 & 50 positions

per row standard. For other

lengths consult factory.

Peel-A-Way

covered by patent rights issued and/or pending.

Page 114

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

inch/(mm)
