BDY56

Description
Silicon NPN Power Transistors
File Size35KB,3 Pages
ManufacturerISC
Websitehttp://www.iscsemi.cn/
Download Datasheet View All

BDY56 Overview

Silicon NPN Power Transistors

Inchange Semiconductor
Product Specification
Silicon NPN Power Transistors
BDY56
DESCRIPTION
・With
TO-3 package
・High
current capability
・Fast
switching speed
APPLICATIONS
・LF
large signal power amplification.
PINNING (See Fig.2)
PIN
1
2
3
Base
Emitter

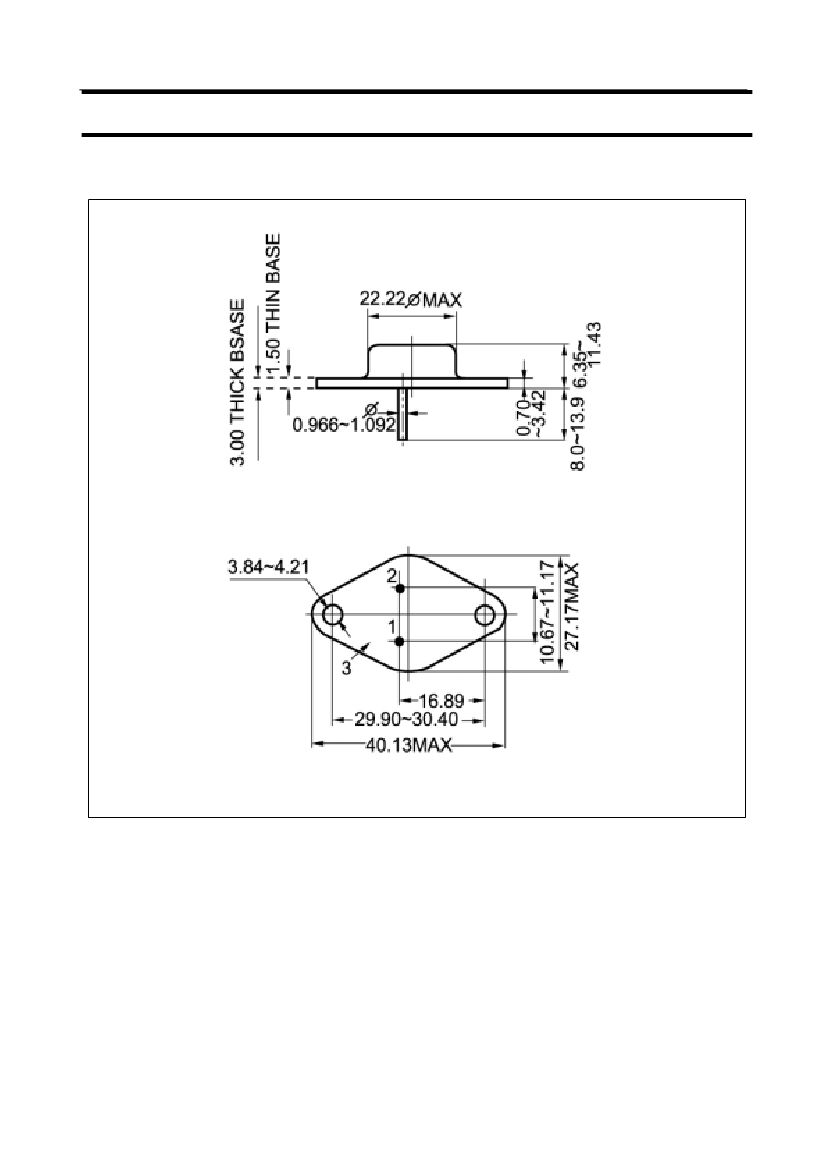

Fig.1 simplified outline (TO-3) and symbol
Collector
DESCRIPTION
Absolute maximum ratings(Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
B
P
T
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Total power dissipation
Junction temperature
Storage temperature
T
C
=25℃
CONDITIONS
Open emitter
Open base
Open collector
VALUE
150
120
7
15
7
117
200
-65~200
UNIT
V
V
V
A
A
W
THERMAL CHARACTERISTICS
SYMBOL
R
th j-c
PARAMETER
Thermal resistance from junction to case
MAX
1.5
UNIT
℃/W
