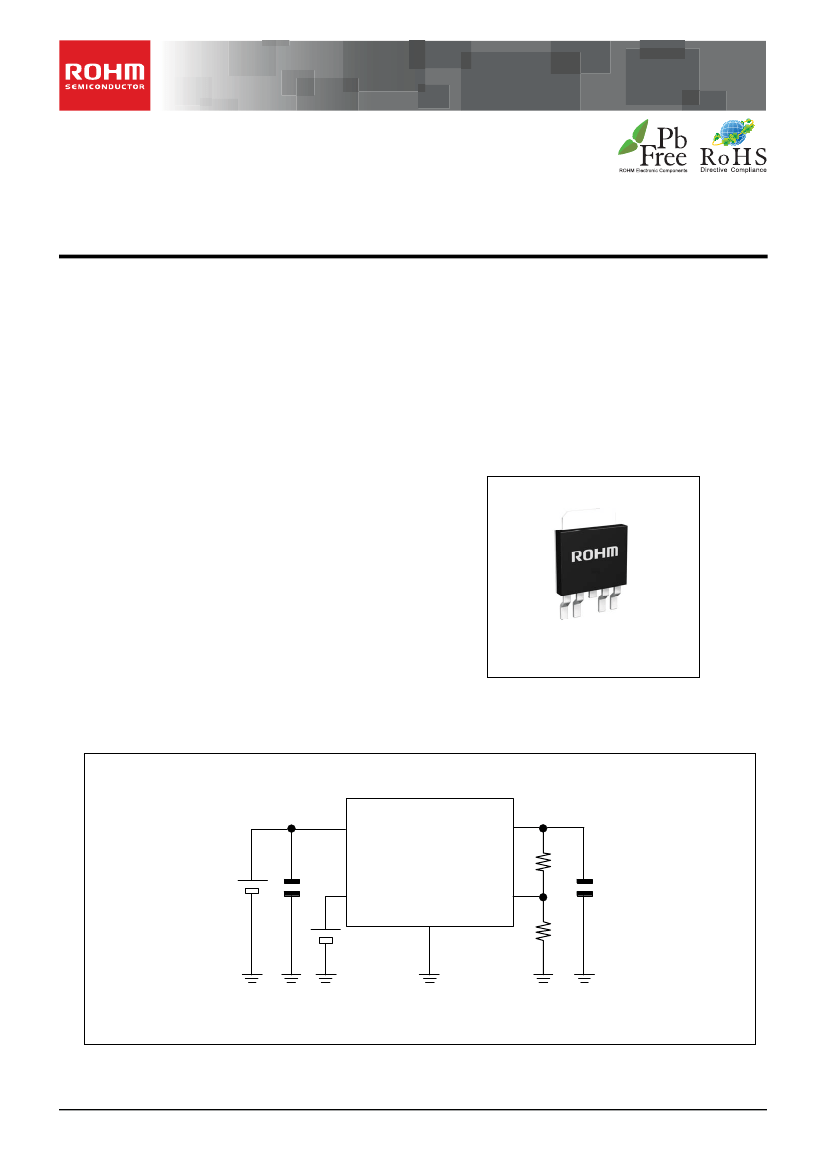

Datasheet
Single-Output LDO Regulator
35V Voltage Resistance
1A LDO Regulator
BD00C0AWFPS-M
●General
Description
The BD00C0AWFPS-M is a low-saturation regulator.
The output voltage can be arbitrarily configured
depending on the external resistor combination. This IC
has a built-in over-current protection circuit that prevents
the destruction of the IC due to output short circuit and a
thermal shutdown circuit that protects the IC from
thermal damage due to overloading.
●Features
Output Current capability : 1A
High Output Voltage Precision : ±1% (Ta=25℃)
Low saturation with PDMOS output
Built-in over-current protection circuit that prevents the
destruction of the IC due to output short circuit
Built-in thermal shutdown circuit for protecting the IC
from thermal damage due to overloading
Low ESR Capacitor
AEC-Q100 Qualified
●Applications
Automotive
(audio system, navigation system and etc.)
●Key
Specifications
Supply Voltage:
4.0V to 26.5V
Output voltage range:
3.0V to 15.0V
Output Current:
1A
Output voltage Precision(Ta=25℃):
±1%
(-40℃≤Ta≤+105℃):
±3%
Operating temperature range:
-40℃≤Ta≤+105℃
●Package
TO252S-5
W(Typ.) × D(Typ.) × H(Max.)
6.50mm
×
9.50mm
×
1.30mm
TO252S-5
●Typical
Application Circuit
Vcc
Vcc
Cin
Vo
R
2
CTL
GND
ADJ
R
1
Cout
Figure 1. Typical Application Circuit
○Product
structure：Silicon monolithic integrated circuit
.
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product is not designed for protection against radioactive rays
1/17
TSZ02201-0T2T0AN00050-1-2
14.Nov.2013 Rev.002
BD00C0AWFPS-M
●Pin
Configuration
TO252S-5
(TOP VIEW)
Datasheet
3
1
2
4
5
Figure 2. Pin configuration
●Pin
Description
Pin No.
1
2
3
4
5
FIN
Symbol
CTL
V
CC
N.C.
V
O
ADJ
GND
Function
Output Control Pin
Power Supply Pin
N.C. Pin
Output Pin
Variable Pin
GND
※N.C.Pin
can be open. Because it isn't connect it inside of IC.
●Block
Diagram
GND
FIN
VREF
-
+
Driver
VREF
OCP
TSD
Driver
OCP
TSD
: Bandgap Reference
: Over Current Protection Circuit
: Thermal Shutdown Circuit
: Power Transistor Driver
1
CTL
2
V
CC
3
N.C.
Figure 3. Block diagram
4
V
O
5
ADJ
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/17
TSZ02201-0T2T0AN00050-1-2
14.Nov.2013 Rev.002
BD00C0AWFPS-M
●Absolute
Maximum Ratings (Ta=25℃)
Parameter
Supply Voltage
Output Control Voltage
Power Dissipation
*1
*2
*3
Datasheet
Symbol
V
CC
V
CTL
Pd
Topr
Tstg
Tjmax
Limits
-0.3½+35.0
-0.3½+35.0
1.3
-40½+105
-55½+150
+150
Unit
V
V
W
℃
℃
℃
Operating Temperature Range
Storage Temperature Range
Maximum Junction Temperature
*1
*2
*3
Not to exceed Pd.
The order of starting up power supply (Vcc) and CTL pin doesn't have either in the problem within
the range of the operation power-supply voltage ahead.
TO252S-5 : 70½½×70½½×1.6mm Glass-Epoxy PCB. If Ta≥25℃, reduce by 10.4mW/℃
●Recommended
Operating Ratings (-40℃≤Ta≤+105℃)
Parameter
Supply Voltage
Output Control Voltage
Output Current
Output Voltage
Symbol
Vcc
V
CTL
Io
Vo
Min.
4.0
0
0
3.0
Max.
25.0
25.0
1.0
15.0
Unit
V
V
A
V
●Electrical
Characteristics
Ta=25℃, Vcc=10V, V
CTL
=5V, Io=50mA, Vo=5.0V output setting
(Resistor valued used between ADJ and Vo is 56.7kΩ, while resistor value used between ADJ and GND is 10kΩ)
Guaranteed Limit
Parameter
Symbol
Unit
Conditions
Min.
Typ.
Max.
ADJ Terminal Voltage
VADJ
0.742
0.750
0.758
V
Unless otherwise specified, -40℃≤Ta≤+105℃, Vcc=10V, V
CTL
=5V, Io=0mA, Vo=5.0V output setting
(Resistor valued used between ADJ and Vo is 56.7kΩ, while resistor value used between ADJ and GND is 10kΩ)
Guaranteed Limits
Parameter
Symbol
Unit
Conditions
Min.
Typ.
Max.
Shutdown Current
Circuit Current
ADJ Terminal Voltage
Dropout Voltage
Ripple Rejection
Line Regulation
Load Regulation
CTL ON Mode Voltage
CTL OFF Mode Voltage
CTL Bias Current
Isd
Ib
VADJ
ΔVd
R.R.
Reg.I
Reg.L
VthH
VthL
I
CTL
－
－
0.727
－
45
－
－
2.0
－
－
0
0.5
0.750
0.3
55
20
10
2.5
0.773
1.0
－
80
µA
mA
V
V
dB
mV
V
V
V
µA
I
O
=50mA
V
CC
=V
O
×0.95, I
O
=500mA
f=120Hz,
Input Voltage Ripple =1Vrms
I
O
=100mA
V
CC
=6→25V
I
O
=5mA→1A
ACTIVE MODE
OFF MODE
V
CTL
=0V
V
O
×0.010 V
O
×0.015
－
－
25
－
0.8
50
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/17
TSZ02201-0T2T0AN00050-1-2
14.Nov.2013 Rev.002
BD00C0AWFPS-M
Datasheet
●Typical
Performance Curves
BD00C0AWFPS-M (Vo=5.0V output setting)
Unless otherwise specified, -40℃≤Ta≤+105℃, Vcc=10V, V
CTL
=5V, Io=0mA, Vo=5.0V
(Resistor valued used between ADJ and Vo is 56.7kΩ, while resistor value used between ADJ and GND is 10kΩ)
1.0
Circuit Current: I
b
+IFEEDBACK_R [mA]
18
Ta=-40℃
Shutdown Current: Isd [μA]
0.8
15
Ta=25℃
Ta=105℃
12
0.6
9
0.4
Ta=-40℃
0.2
Ta=25℃
Ta=105℃
0.0
0
2
4
6
8 10 12 14 16 18 20 22 24 26
Supply Voltage: Vcc [V]
6
3
0
0
2
4
6
8 10 12 14 16 18 20 22 24 26
Supply Voltage: Vcc [V]

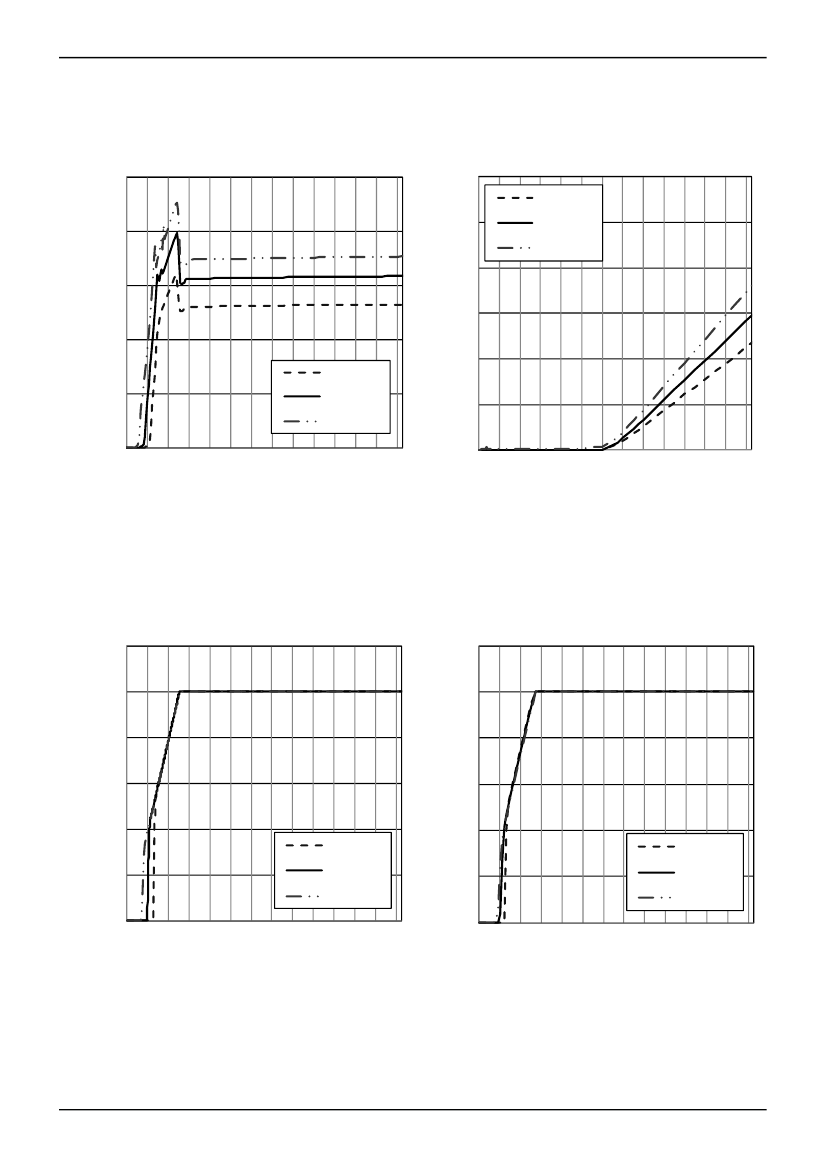

Figure 4. Circuit Current
(IFEEDBACK_R≒75µA)
Figure 5. Shutdown Current
6
6
5
5
Output Voltage: Vo [V]
Ta=-40℃
Output Voltage: Vo [V]
4
4
3
3
2
Ta=25℃
Ta=105℃
0
0
2
4
6
8 10 12 14 16 18 20 22 24 26
Supply Voltage: Vcc [V]
2
Ta=-40℃
1
Ta=25℃
Ta=105℃
0
0
2
4
6
8 10 12 14 16 18 20 22 24 26
Supply Voltage: Vcc [V]
1
Figure 6. Line Regulation
(Io=0mA)
Figure 7. Line Regulation
(Io=500mA)
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
4/17
TSZ02201-0T2T0AN00050-1-2
14.Nov.2013 Rev.002
BD00C0AWFPS-M
●
Typical Performance Curves - Continued
Datasheet
6
1,000
900
Ta=-40℃
Ta=25℃
Ta=105℃
5
Output Voltage: Vo [V]
Dropout Voltage:
ΔVd
[mV]
800
700
600
500
400
300
200
100
4
3
2
Ta=-40℃
1
Ta=25℃
Ta=105℃
0
0
400
800
1200 1600
Output Current: Io [mA]
2000
2400
0
0
200
400
600
800
Output Current: Io [mA]
1000

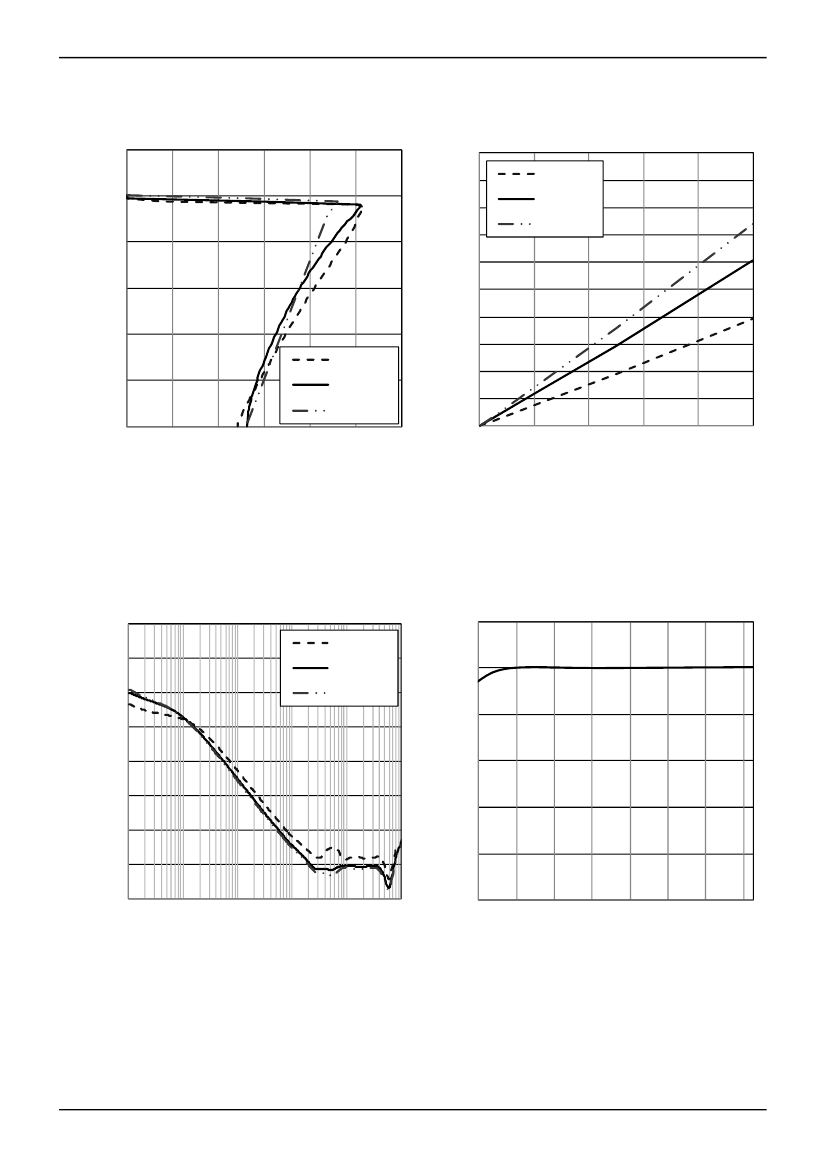

Figure 8. Load Regulation
Figure 9. Dropout Voltage
(Vcc=4.75V)
(lo=0mA→1000mA)
80
Ta=-40℃
70
Ripple Rejection: R.R. [dB]
6
Ta=25℃
Ta=105℃
5
60
50
40
30
20
10
0
10
100
1000
10000
Frequency: f [Hz]
Output Voltage:Vo [V]
4
3
2
1
0
100000 1000000
-40
-20
0
20
40
60
80
100
Ambient Temperature:Ta[℃]
Figure 10. Ripple Rejection
(lo=100mA)
Figure 11. Output Voltage
Temperature Characteristic
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
5/17
TSZ02201-0T2T0AN00050-1-2
14.Nov.2013 Rev.002
