BD06AV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > unclassified> unclassified-data> BD06AV

BD06AV: DescriptionSLIDE DIP SWITCH-6SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE; Categoryunclassified unclassified-data; File Size113KB，2 Pages; ManufacturerC&K Components

Download Datasheet Compare View All

BD06AV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD06AV	-	-	View	Buy Now

BD06AV Overview

SLIDE DIP SWITCH-6SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE

Preview

Download Datasheet

View All

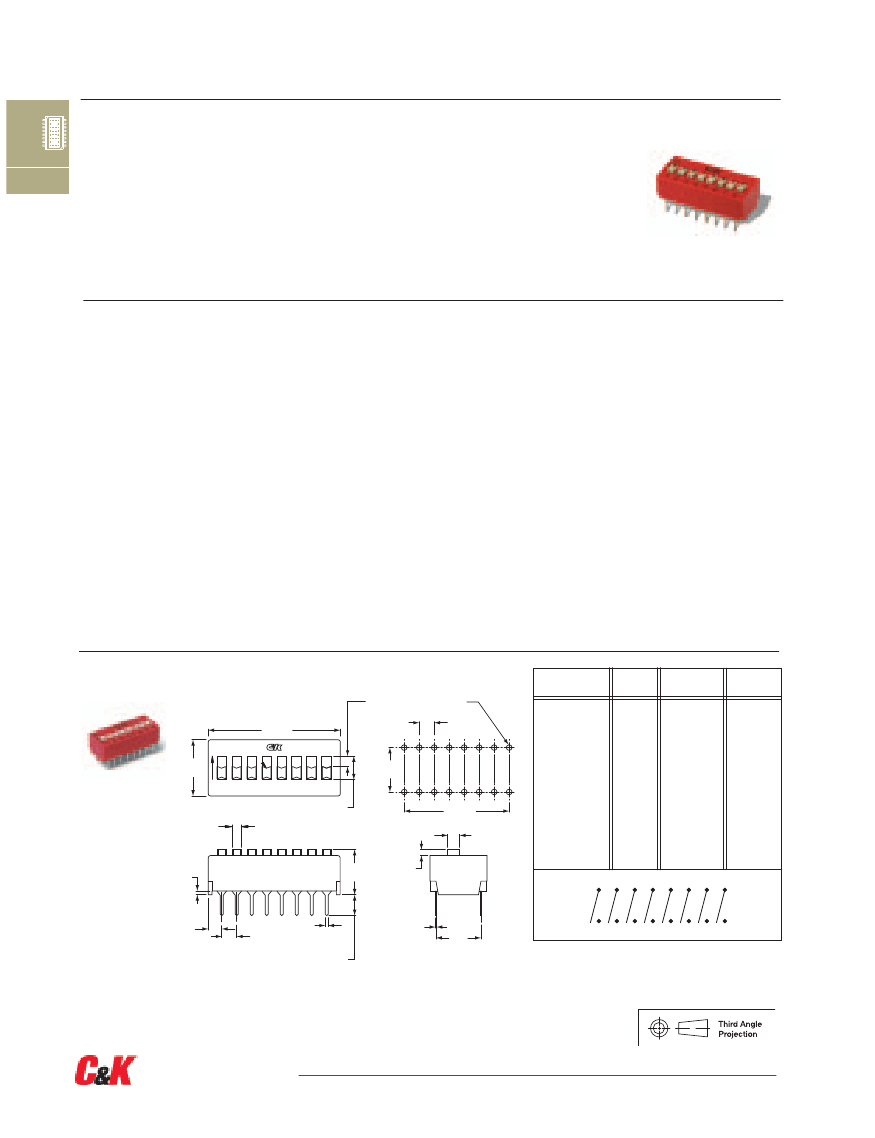

BD Series

Standard Profile DIP Switches

Features/Benefits

•

Traditional full profile DIP switch

•

Extended actuator for easy actuation

•

Open bottom construction allows for

solder washing without the need

for tape seal

•

RoHS compliant

DIP

Typical Applications

•

Address switch for industrial controls

•

Logic switching for computers and

peripherals

•

Function controlling for

numerous applications

Specifications

SWITCH FUNCTION: SPST - 1 thru 12 position available

(except 11 position).

CONTACT RATING:

Carry: 100 mA max. @ 50 V DC.

Switch: 100 mA max. @ 5 V DC or 25 mA max. @ 25 V DC.

MECHANICAL AND ELECTRICAL LIFE: 10,000 make-and-break

cycles at full load, each circuit.

CONTACT RESISTANCE: Below 50 milliohms typ. initial

@ 2-4 V DC 100mA.

INSULATION RESISTANCE: 10 ohms min.

VIBRATION: No contact opening greater than 10 microseconds and no

contact closure when exposed to vibration .06 in DA or 5g,

whichever is less, from 10 to 55 Hz, and 10g from 55 to 500 Hz.

SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E

method 9 (1 hour steam aging).

PACKAGING: Switches supplied in rigid dispensing tubes in full-tube

quantities only: this may effect order quantity. Number of switches

per tube varies with model. Switch position 1 denotes pin number

1. All switch actuators in ‘OFF’ position, standard.

Materials

CASE & COVER: Glass filled polyester (PBT),

flame retardant (UL 94V-0).

ACTUATOR: Glass filled nylon 6/6, flame retardant,

heat stabilized (UL 94V-0)

CONTACTS: Gold over nickel over phosphor bronze.

TERMINALS: Matte-tin over nickel over phosphor bronze.

Note:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

DIELECTRIC STRENGTH: 500 V RMS min. @ sea level between

adjacent terminals.

CAPACITANCE: 5pF max. between adjacent terminals.

STORAGE & OPERATING TEMPERATURE: -40°C to 85°C.

SHOCK: Withstands 20g 11 ms sawtooth waveform with no con-

tact opening greater than 10 microseconds.

Vertical Full Profile DIP

PART NUMBER

.072

(1,83)

ACTUATOR

TRAVEL

Ø.038 TYP.

(0,97)

.100 TYP.

(2,54)

NO.POS.

DIM.

‘A’

.180 (4,57)

.280 (7,11)

.380 (9,65)

.480 (12,19)

.580 (14,73)

.680 (17,27)

.780 (19,81)

.880 (22,35)

.980 (24,89)

1.080 (27,43)

1.280 (32,51)

QUANTITY

PER TUBE

115

DIM 'A'

.380

(9,65)

.300

(7,62)

BD08

DIM 'B'

.080 TYP.

(2,03)

.300

(7,62)

.035

(0,9)

TYP.

.160 TYP.

(4,06)

.060 TYP.

(1,52)

BD01

BD02

BD03

BD04

BD05

BD06

BD07

BD08

BD09

BD10

BD12

Schematic

.026

(0,66)

.090

(2,29)

.100 TYP.

(2,54)

.020 TYP.

(0,51)

.141 TYP.

(3,58)

.007

(0,18)

SPST

.300

(7,62)

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

H–14

www.ck-components.com

BD06AV Related Products

	BD06AV	BD02	BD04	BD04AV	BD05AV	BD08	BD08AV	BD10AV
Description	SLIDE DIP SWITCH-6SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE	SLIDE DIP SWITCH-2SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE	SLIDE DIP SWITCH-5SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE	SLIDE DIP SWITCH-8SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-8SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-RIGHT ANGLE	SLIDE DIP SWITCH-1SWITCHES, SPST, LATCHED,0.1A, 5VDC, THROUGH HOLE-STRAIGHT
Maximum DC contact current	-	-	0.1000 A	0.1000 A	0.1000 A	0.1000 A	-	0.1000 A
Maximum DC contact voltage	-	-	5 V	5 V	5 V	5 V	-	5 V
Maximum operating temperature	-	-	85 Cel	85 Cel	85 Cel	85 Cel	-	85 Cel
Minimum operating temperature	-	-	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-	-40 Cel
Processing package description	-	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT
EU RoHS regulations	-	-	Yes	Yes	Yes	Yes	-	Yes
state	-	-	TRANSFERRED	ACTIVE	Active	TRANSFERRED	-	ACTIVE
Electrical life	-	-	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	-	10000 Cycle(s)
switch function	-	-	single pole single throw	single pole single throw	SPST	single pole single throw	-	SPST
terminal coating	-	-	MATTE Tin	MATTE Tin OVER Nickel	MATTE TIN	MATTE Tin OVER Nickel	-	MATTE TIN
Manufacturer Series	-	-	BD	BD	BD	BD	-	BD
width	-	-	9.65 mm	8.13 mm	8.13 mm	9.65 mm	-	9.65 mm
high	-	-	6.73 mm	9.65 mm	9.65 mm	6.73 mm	-	6.73 mm
length or diameter	-	-	19.81 mm	12.19 mm	14.73 mm	24.89 mm	-	9.65 mm
Installation features	-	-	Straight hole	right angle through hole	THROUGH HOLE-RIGHT ANGLE	Straight hole	-	THROUGH HOLE-STRAIGHT
Number of switches	-	-	4	4	5	8	-	1
Switch action	-	-	locking	locking	LATCHED	locking	-	LATCHED
Switch type	-	-	Slide DIP switch	Slide DIP switch	SLIDE DIP SWITCH	Slide DIP switch	-	SLIDE DIP SWITCH
Terminal type	-	-	welding	welding	SOLDER	welding	-	SOLDER
