USB Switch ICs
DPDT Type
(Double Pole Double Throw)
BD11600NUX
No.11103EAT03
●Description
BD11600NUX is DPDT analog switches handling with USB2.0 high-speed that have both a low resistance and a low
capacitance. Moreover, this is widely guaranteed from 2.5V to 5.5V as for the range of the power-supply voltage.
This has a low consumption mode by making OE “H” and the multi-selector by making the combination of OE “L” and S.
The electrostatic discharge protection circuit is built-in in all terminals.
●Features
1) VCC Operation from 2.5V to 5.5V.
2) 3Ω switches between the input to the output.
3) Low Capacity 2ch Analog SW.

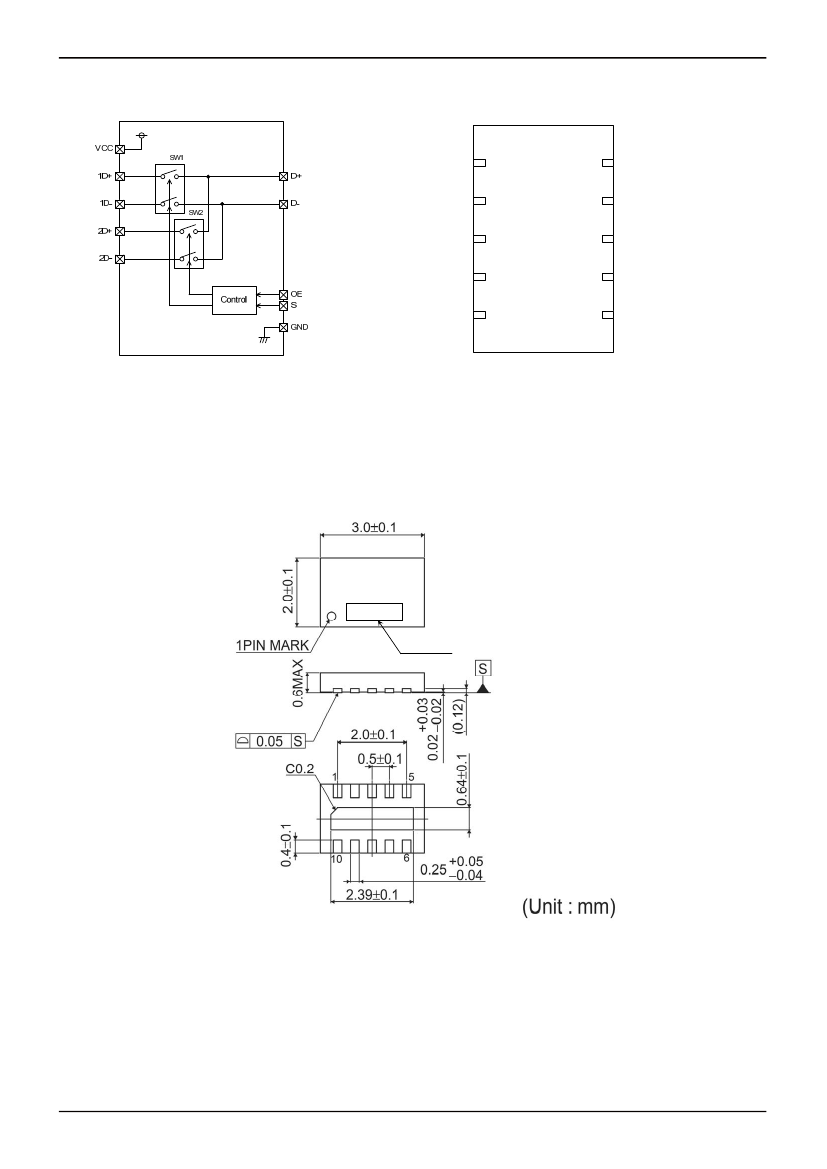

4) 10-Pin SON Package. (3.0mm x 2.0mm, Height=0.6mm, 0.5mm pitch)
●Applications
Digital Still Cameras, Digital Video Camcorders, Portable Navigation Devices, TV, Portable DVD Players,
Portable Game Systems, Personal computers, PDA, Mobile phones
●Line
up matrix
Parameter
Supply Quiescent Current
Input voltage range
Switch ON Resistance ( VIN=0 V )
Switch ON Capacitance
Configuration
Package
●Absolute
maximum ratings (Ta=25℃)
Parameter
Input supply voltage
Input supply voltage
Power dissipation
Operating temperature range
Storage temperature range
Symbol
Vmax
Vmax
Pd
Topr
Tstr
Ratings
-0.5½7.0
-0.3½7.0
1.925
-40½+85
-55½+150
Unit
V
V
W
℃
℃
Conditions
D+,D-,1D+,1D-,2D+,2D- Pins
Other Pins
*
1
DPDT
VSON010X3020
3
Ω
6 pF
DPST
VSON008X2020
BD11600NUX
18 µA
2.5½5.5 V
2.5
Ω
BD11601NUX
*1 When using more than at Ta=25℃, it is reduced 15.4 mW per 1℃. ROHM specification board 70mm×70mm mounting.
●Operating
conditions (Ta=-40½+85℃)
Parameter
Input voltage range (VCC)
Symbol
VCC
Ratings
2.5½5.5
Unit
V
Conditions
* This product does not especially designed to be protected from radioactivity.
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
1/10
2011.08 - Rev.A
BD11600NUX
●Electrical
characteristics (Unless otherwise noted, Ta = 25C, VCC=5.0V)
Limits
Parameter
Symbol
Min.
Typ.
Max.
Supply Quiescent Current 1
Supply Quiescent Current 2
Supply Quiescent Current 3
Switch ON Resistance 1
(SW1, 2)
Switch ON Resistance 2
(SW1, 2)
Off-Leakage Current
On-Leakage Current
Switch Input Range
Switch OFF Capacitance
(SW1, 2)
Switch ON Capacitance
(SW1, 2)
Input “L” level (S, OE )
Input “H” level (S, OE )
ICC1
ICC2
ICC3
Ron1
Ron2
Ioff
Ion
VIN
Coff
Con
VIL
VIH
-
-
-
-
-
-2
-2
-0.5
-
-
-
1.1
1
18
19
3
3.5
0
0
-
4
6
-
-
3
40
40
6
6
2
2
5.5
-
-
0.5
-
Technical Note
Unit
µA
µA
µA
Ω
Ω
µA
µA
V
pF
pF
V
V
Conditions
SW1, 2=OFF
SW1=ON
SW2=ON
VIN=0V
VIN=2.4V
SW1, 2=OFF
VCC>VIN, SW1, 2=ON
SW1, 2=ON
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
2/10
2011.08 - Rev.A
BD11600NUX

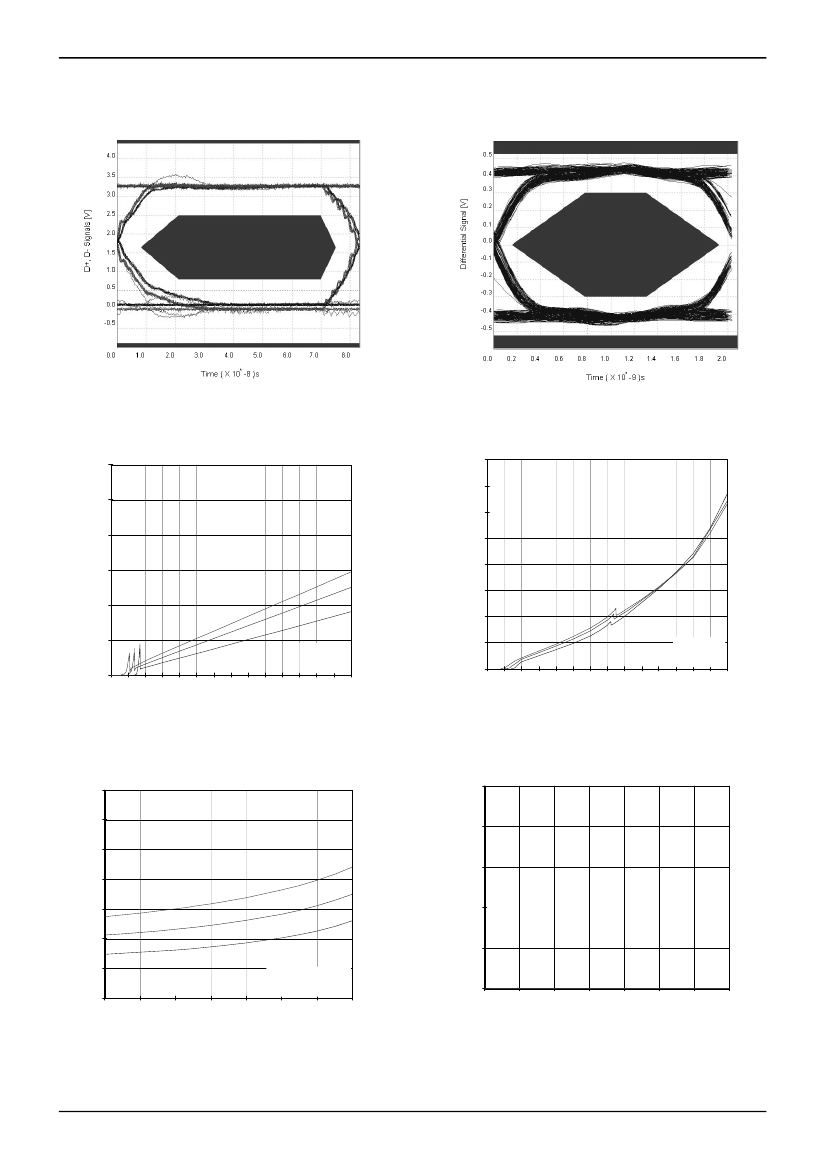

●Electrical
characteristic curves (Reference data)
Technical Note
Fig.1
Eye Pattern Full Speed
40
Fig.2
Eye Pattern High Speed
3
35
2.5
30
2
25
ICC1 (uA)
ICC2 (uA)
Ta=105°C
Ta=25°C
1.5
20
15
1
10
Ta=105°
Ta=-60°
Ta=25°
0.5
Ta=-60°C
VCC=0V~7V
S=L, OE=H
5.5
6
6.5
7
5
VCC=0V~7V
S=L, OE=L
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
6.5
7
0
0
0.5
1
1.5
2
2.5
3
0
VCC (V)
3.5
4
4.5
5
VCC (V)
Fig.3
ICC vs Input Voltage (SW OFF)
Fig.4
ICC vs Input Voltage (SW ON)
7
5
6
4
5
3
RON [Ω]
4
Ta=105℃
Ta=25℃
2
Ta=-60
℃
1
VCC=5V,IO(D+)=-10mA,
VIN=0~7V,S=L,OE=L
0
0
1
2
3
4
5
6
7
I_1D+ (uA)
3
2
1
Ta=25°C
Ta=-60°C
Ta=105°C
0
0
1
2
3
1D+ (V)
4
5
6
7
1D+ [V]
Fig.5
Ron vs Input Voltage
Fig.6
Leak current vs Input Voltage(SW OFF)
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
3/10
2011.08 - Rev.A
