NPN BD131
SILICON PLANAR EPITAXIAL POWER TRANSISTORS
The BD131are NPN transistors mounted in Jedec TO-126 plastic package.
Medium power applications.
PNP complements are BD132
Compliance to RoHS.
ABSOLUTE MAXIMUM RATINGS
Symbol
V
CEO
V
CBO
V
EBO
I
C
I
B
P
T
T
J
T
Stg
Ratings
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current
Base current (peak value)
Reverse base current (peak value)
Total power Dissipation
Junction Temperature
Storage Temperature
I
C
I
CM
I
BM
I
BM
@ T
mb
= 60°C
Value
45
45
4
3
6
0.5
0.5
15
150
-65 to +150
Unit
V
V
V
A
A
W
°C
°C
THERMAL CHARACTERISTICS
Symbol
R
thJ-mb
Ratings
Thermal Resistance, Junction to mouting base
Value
6
Unit
K/W
ELECTRICAL CHARACTERISTICS
TC=25°C unless otherwise noted
Symbol
I
CBO
I
EBO
V
CE(SAT)
V
BE(SAT)
h
FE
Ratings
Collector cut-off current
Test Condition(s)
Min
-
-
-
-
-
-
-
40
20
Typ
-
-
-
-
-
-
-
-
-
Max
5
500
5
0.3
1.2
0.7
1,5
-
-
Unit
µA
µA
V
V
I
E
=0 , V
CB
=40 V
I
E
=0 , V
CB
=40 V ,T
j
= 150°C
Emitter cut-offcurrent
I
C
=0, V
EB
=3 V
Collector-Emitter saturation I
C
=0.5 A, I
B
=50 mA
Voltage
I
C
=2.0 A, I
B
=200 mA
I
C
=0.5 A, I
B
=50 mA
Base-Emitter saturation
Voltage
I
C
=2.0 A, I
B
=200 mA
V
CE
=12 V, I
C
=500m A
DC Current Gain
V
CE
=1 V, I
C
=2 A
COMSET SEMICONDUCTORS
18/10/2012
1|2
NPN BD131

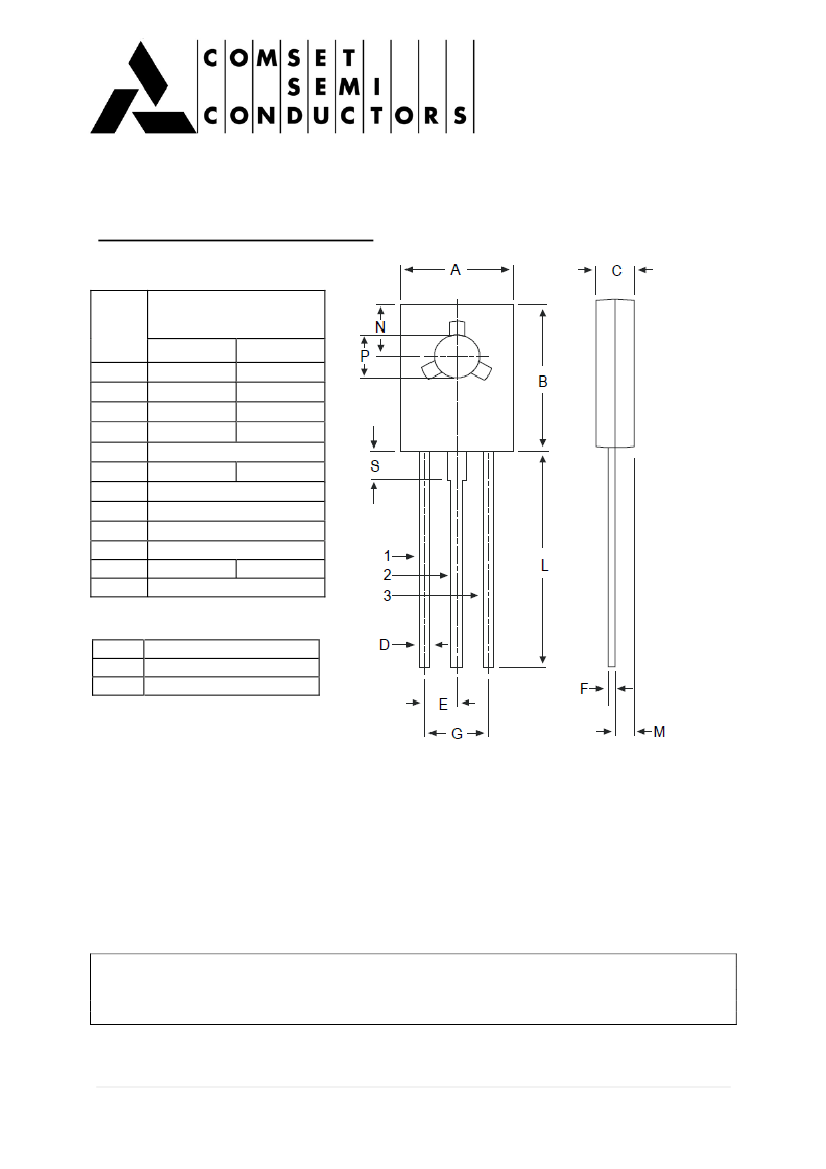

MECHANICAL DATA CASE TO-126
DIMENSIONS
min
7.4
10.5
2.4
0.7
2.25 typ.
0.49
0.75
4.4 typ.
15.7 typ.
1.27 typ.
3.75 typ.
3.0
2.54 typ.
3.2
max
7.8
10.8
2.7
0.9
A
B
C
D
E
F
G
L
M
N
P
S
Pin 1 :
Pin 2 :
Pin 3 :
Emitter
Collector
Base
Revised September 2012
Information furnished is believed to be accurate and reliable. However, Comset Semiconductors assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may results from its use. Data are subject to
change without notice. Comset Semiconductors makes no warranty, representation or guarantee regarding the suitability of its products for any
particular purpose, nor does Comset Semiconductors assume any liability arising out of the application or use of any product and specifically
disclaims any and all liability, including without limitation consequential or incidental damages. Comset Semiconductors’ products are not
authorized for use as critical components in life support devices or systems.
www.comsetsemi.com
18/10/2012
COMSET SEMICONDUCTORS
info@comsetsemi.com
2|2
