BD138L-6-TM3-T

Description
1.5 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-126
CategoryDiscrete semiconductor    The transistor
File Size129KB,3 Pages
ManufacturerUNISONIC TECHNOLOGIES CO.,LTD
Websitehttp://www.unisonic.com.tw/
Environmental Compliance
Download Datasheet Parametric View All

BD138L-6-TM3-T Overview

1.5 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-126

BD138L-6-TM3-T Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerUNISONIC TECHNOLOGIES CO.,LTD
Parts packaging codeTO-251
package instructionIN-LINE, R-PSIP-T3
Contacts3
Reach Compliance Codecompli
ECCN codeEAR99
Maximum collector current (IC)1.5 A
Collector-emitter maximum voltage60 V
ConfigurationSINGLE
Minimum DC current gain (hFE)40
JEDEC-95 codeTO-251
JESD-30 codeR-PSIP-T3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typePNP
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON

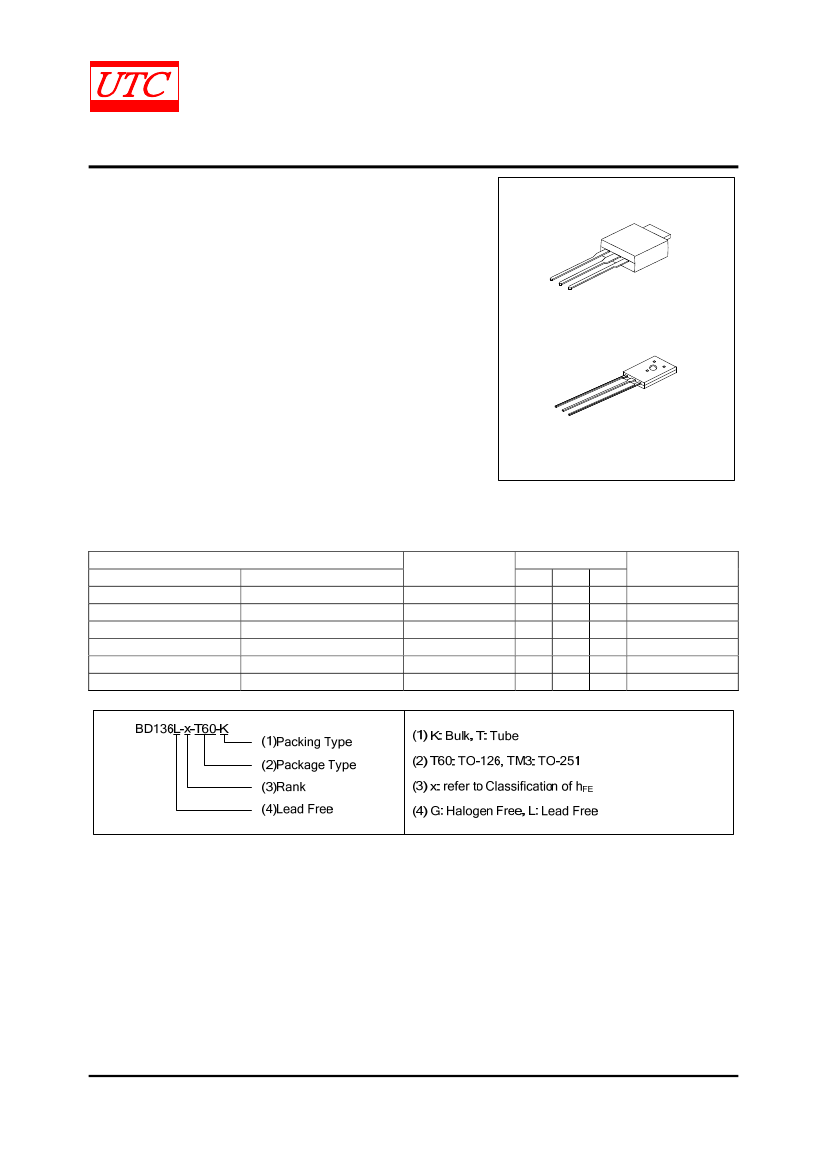

UNISONIC TECHNOLOGIES CO., LTD
BD136-138-140
PNP SILICON TRANSISTOR
DESCRIPTION
The UTC
BD136/BD138/BD140
are silicon epitaxial planer PNP
transistor, designed for use as audio amplifiers and drivers utilizing
complementary or quasi complementary circuits.
The complementary NPN types are the BD135/BD137/ BD139.
PNP EPITAXIAL SILICON TRANSISTOR
1
TO-251
1
TO-126
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
BD136L-x-T60-K
BD136G-x-T60-K
BD138L-x-T60-K
BD138G-x-T60-K
BD140L-x-T60-K
BD140G-x-T60-K
BD136L-x-TM3-T
BD136G-x-TM3-T
BD138L-x-TM3-T
BD138G-x-TM3-T
BD140L-x-TM3-T
BD140G-x-TM3-T
Note: Pin Assignment: E: Emitter C: Collector B: Base
Package
TO-126
TO-126
TO-126
TO-251
TO-251
TO-251
Pin Assignment
1
2
3
E
C
B
E
C
B
E
C
B
B
C
E
B
C
E
B
C
E
Packing
Bulk
Bulk
Bulk
Tube
Tube
Tube
www.unisonic.com.tw
Copyright © 2011 Unisonic Technologies Co., LTD
1 of 3
QW-R204-013.Ca
