SLS-016-R103-55/S: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size257KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

SLS-016-R103-55/S Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

SLS-016-R103-55/S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.362 inch
subject depth	0.561 inch
body length	1.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	SLS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	SHORT LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

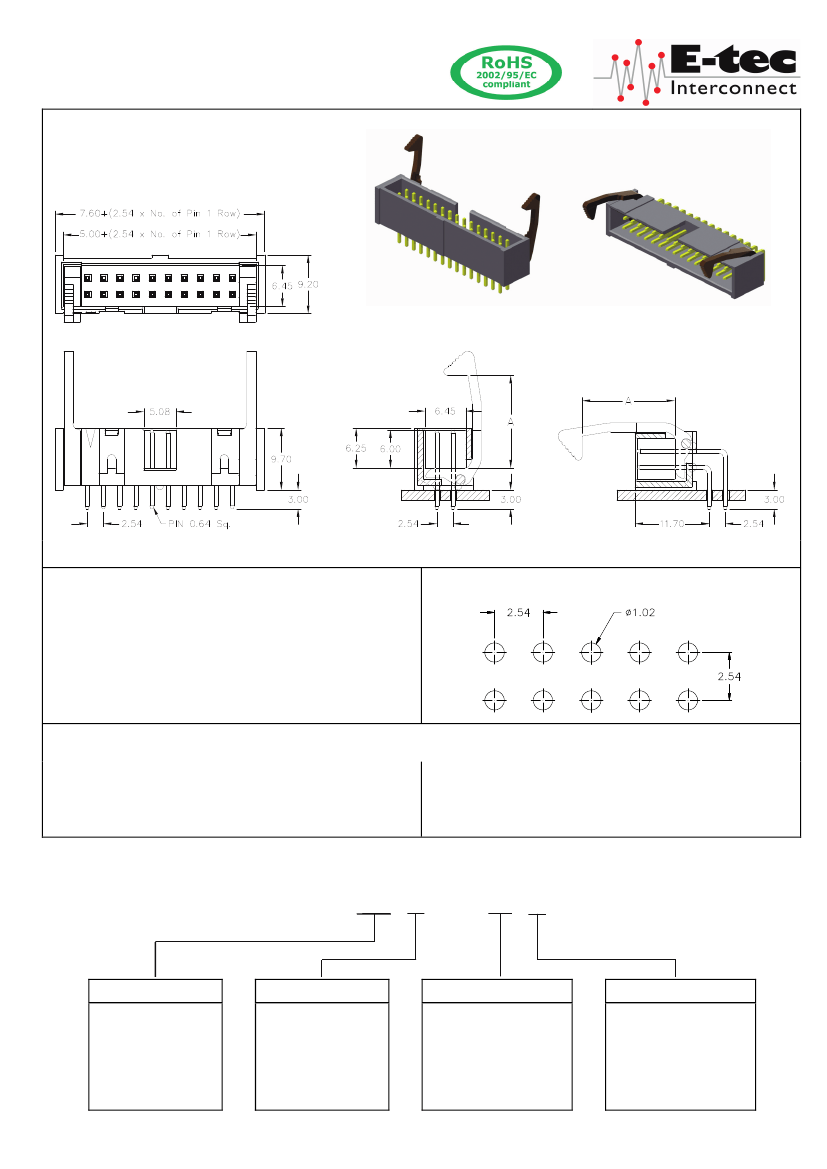

2.54mm pitch

- THT -

Box Header

with ejection latches

- S103

APPLICATION AND FEATURES

PCB

- R103

Hole Layout

Mating devices for female headers

IDC Type

Reliable flat cable to PCB connection

Ejection latches for easy handling

SPECIFICATIONS

Current rating

Insulator resistance

Withstanding voltage

3A

1000 MΩ min.

500 V AC

Operating temperature

Contact material

(RoHS compliant)

Insulator material

(RoHS compliant)

- 40°C to +105°C

Copper alloy

P.B.T. UL 94 V-0

Standard:

black

How to order

SLS - xxx - X 103 –

55

/ X

Nbr of pins

010; 014; 016

020; 024; 026

030; 034; 040

050; 060; 064

68

S

R

Style

55

Plating

= gold

S

L

Latch style

= short latch

DIM “A” = 10.65 mm

=

straight

=

right angle

Other platings on request

= long latch

DIM “A” = 14.55 mm
