1282-5-14-1-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1282-5-14-1-1

1282-5-14-1-1: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1282-5-14-1-1 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

1282-5-14-1-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.15 inch
body length	0.35 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1282
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.1054 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	14

Preview

Download Datasheet

View All

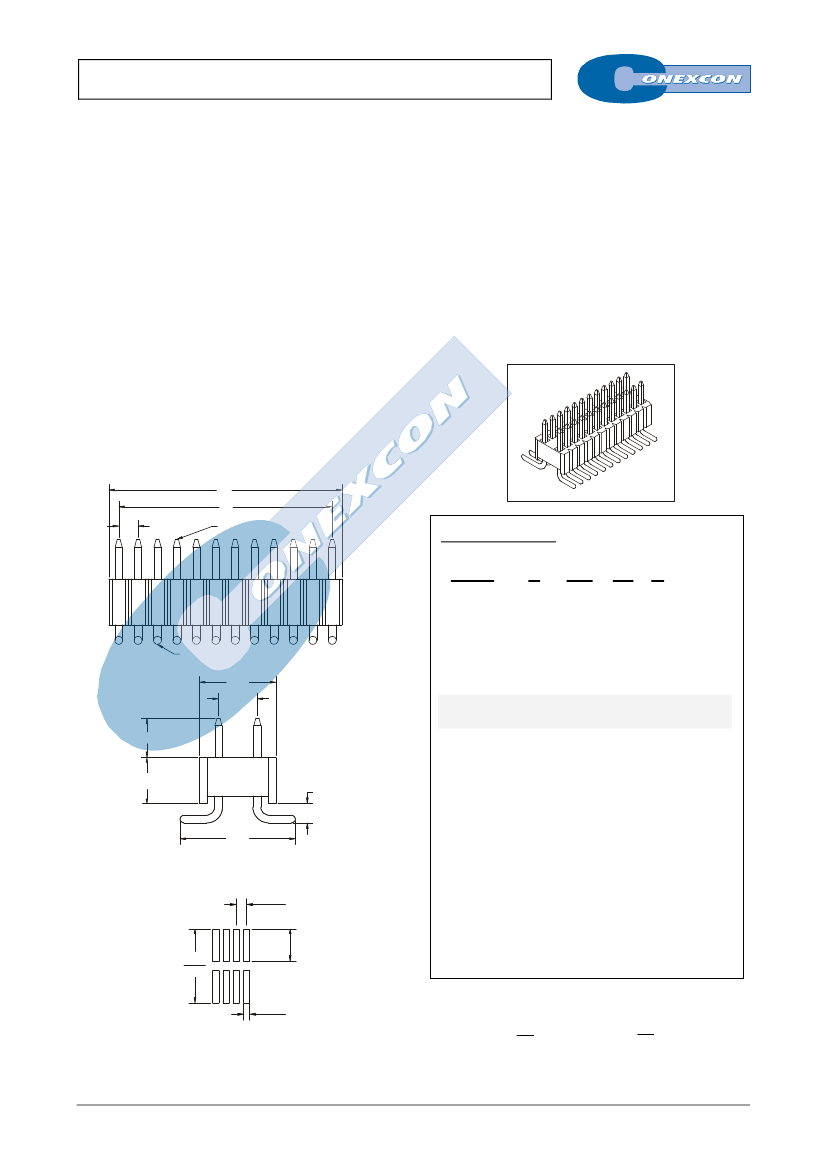

DUAL ROW VERTICAL SMT PIN HEADER

1282 SERIES.

1.27 x 2.54 mm (0.050” x 0.100”) pitch.

General Features

Electrical Features



Available in 4 through 80 circuits

Mates with sockets dual row 1.27 x 2.54 mm pitch 1285,

1286 and 1287 series

0,46 mm. square pin with different plating

Available different pin length.

Contact Sales Office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric Withstanding Voltage: 300 V AC/minute

Insulation Resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Brass

Operating temperature: -40ºC to +105ºC

RoHS Compliant

Mechanical Features

Pin retention force to insulator: > 0,15 Kgf

Durability: 50 cycles

Dimension Information

1.27

0.46

Ordering Information:

1282 -

T-

XX- C- E

1. Connector Series

Ø 0.53 mm.

2. (T) Contact Plating

5.00

2.54



1.27

T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

2.54

3. (XX) Number of circuits



Available in 04 through 80 circuits

4. (C) Pin Lengh

7.54

= 1.

= 2.80mm.

= 2.

= 6.00mm.

RECOMMENDED PCB LAYOUT

1.27

.050

3.98

.157

5. (E) Packing Options

E =

1.Tube

+ Pad

E =

Reel + Pad

9.10

.358

0.76

.030

DIMENSIONS:





1.27















1.27









= Number of circuits

A-XX
