BF115 datasheet, PDF - EEWORLD Datasheet

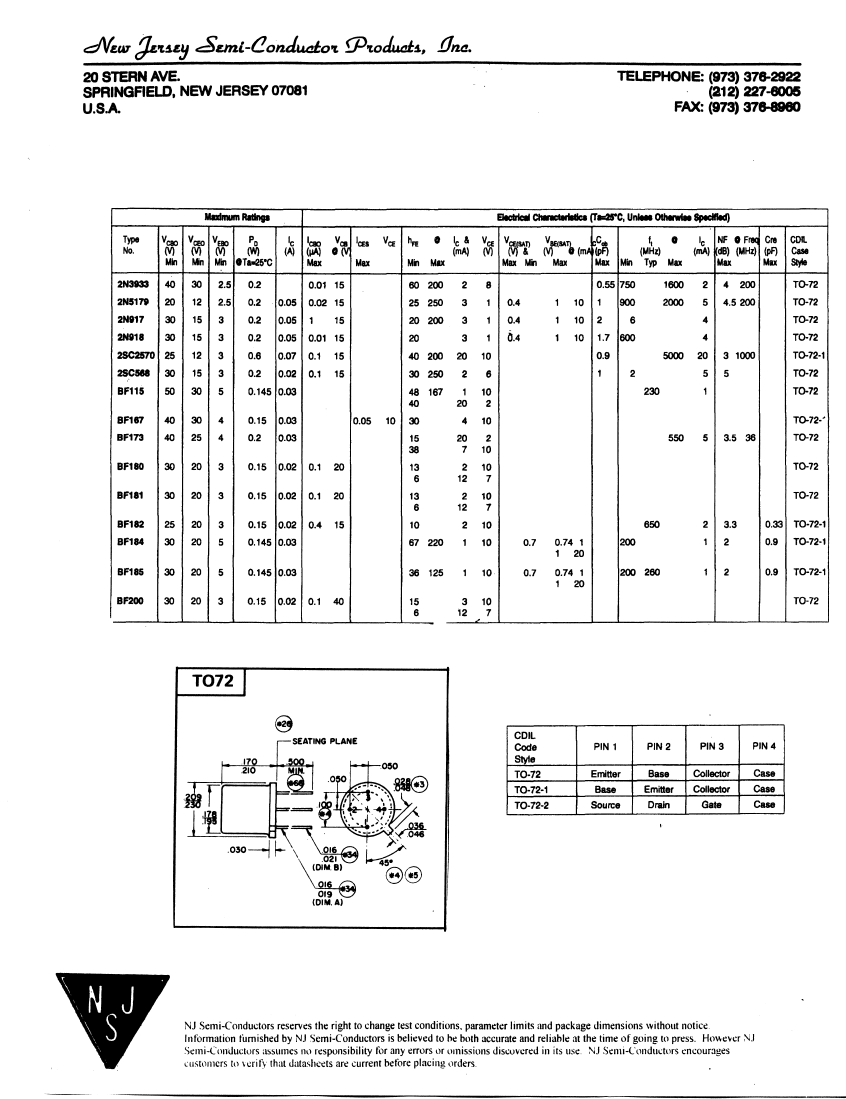

BF115: DescriptionUHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72; Categorysemiconductor Discrete semiconductor; File Size124KB，1 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric Compare View All

BF115 Overview

UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72

Parameter Name	Attribute value
Number of terminals	4
Transistor polarity	NPN
Maximum collector current	0.0500 A
Maximum Collector-Emitter Voltage	15 V
Processing package description	METAL PACKAGE-4
state	CONSULT MFR
packaging shape	round
Package Size	cylindrical
Terminal form	Wire
Terminal location	BOTTOM
Packaging Materials	Metal
structure	single
Number of components	1
transistor applications	amplifier
Transistor component materials	silicon
Maximum ambient power consumption	0.2000 W
Transistor type	RF small signal
highest frequency band	ULTRA high frequency band
Rated crossover frequency	900 MHz
Maximum Collector Base Capacitance	3 pF

	BF115	2N917	2N918	BF180	2N3933	2SC568	2SC588	BF184	BF200
Description	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72	TRANSISTOR \| BJT \| NPN \| 15V V(BR)CEO \| 20MA I(C) \| TO-72	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72
Number of terminals	4	-	-	4	-	-	4	4	4
Terminal form	Wire	-	-	WIRE	-	-	Wire	WIRE	WIRE
Terminal location	BOTTOM	-	-	BOTTOM	-	-	BOTTOM	BOTTOM	BOTTOM
Number of components	1	-	-	1	-	-	1	1	1
Transistor component materials	silicon	-	-	SILICON	-	-	silicon	SILICON	SILICON
Reach Compliance Code	-	unknow	unknow	unknow	unknow	unknow	-	unknow	unknow
