BU2JTD2WNVX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BU2JTD2WNVX

BU2JTD2WNVX: Description2.7 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO4; CategoryPower/power management The power supply circuit; File Size3MB，42 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BU2JTD2WNVX Overview

2.7 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO4

BU2JTD2WNVX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SON
package instruction	HVSON,
Contacts	4
Reach Compliance Code	compli
ECCN code	EAR99
Maximum drop-back voltage 1	0.5 V
Maximum input voltage	5.5 V
Minimum input voltage	1.7 V
JESD-30 code	S-PDSO-N4
length	1 mm
Number of functions	1
Number of terminals	4
Working temperatureTJ-Max	125 °C
Maximum output current 1	0.2 A
Maximum output voltage 1	2.8785 V
Minimum output voltage 1	2.8215 V
Nominal output voltage 1	2.85 V
Package body material	PLASTIC/EPOXY
encapsulated code	HVSON
Package shape	SQUARE
Package form	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	0.6 mm
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	1 mm

Preview

Download Datasheet

View All

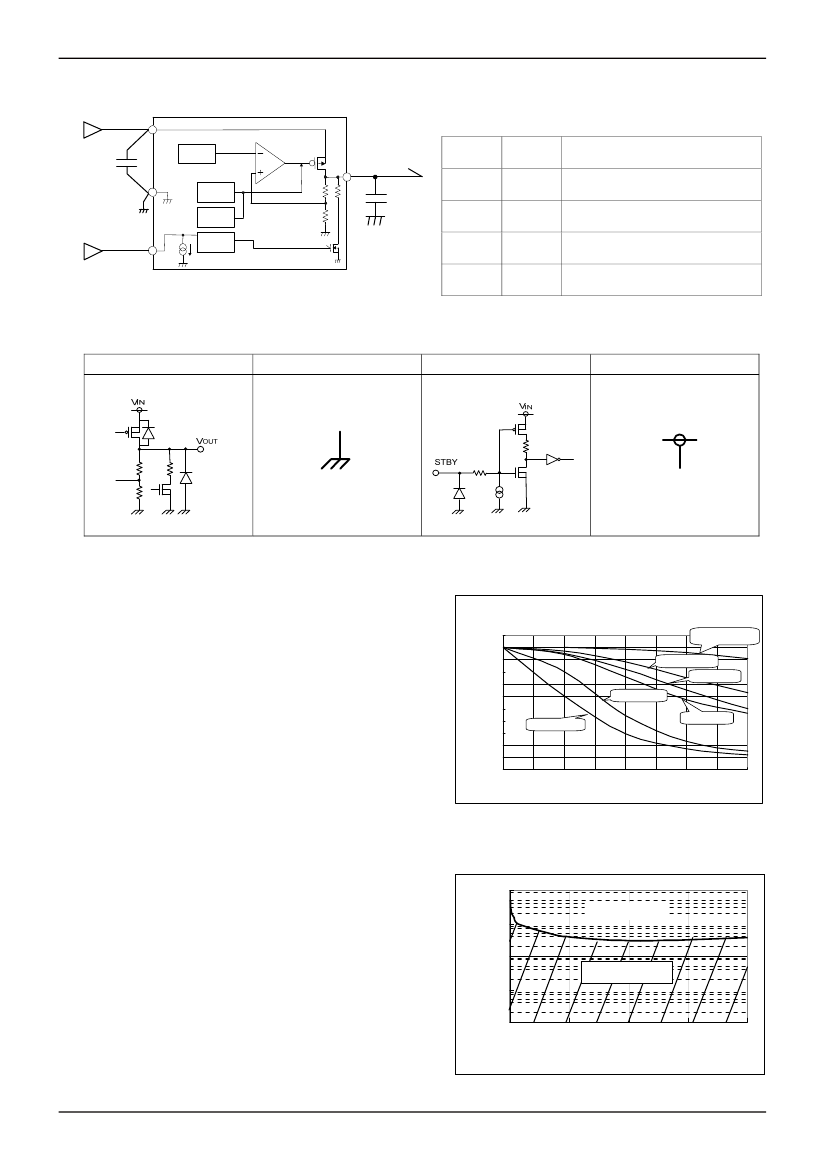

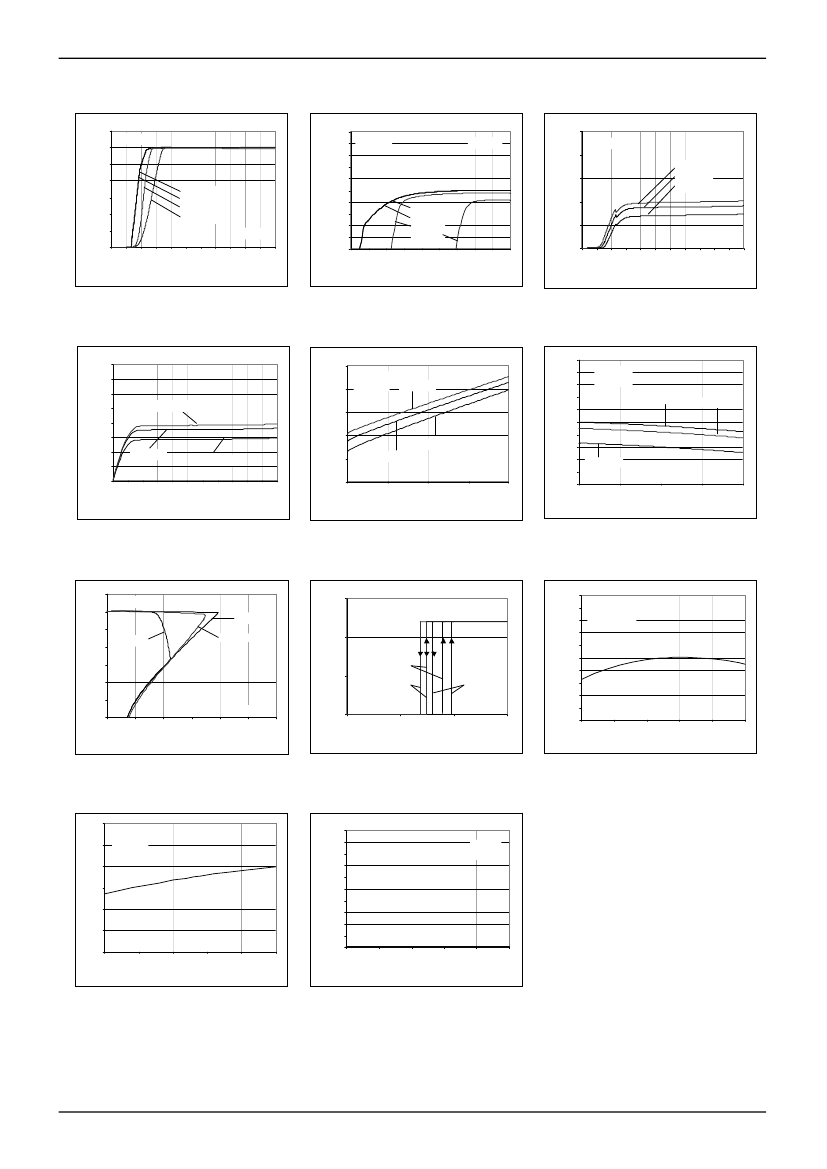

CMOS LDO Regulators for Portable Equipments

1ch 200mA

CMOS LDO Regulators

BU□□TD2WNVX series

No.11020ECT07

●Description

BUTD2WNVX series is high-performance FULL CMOS regulator with 200-mA output, which is mounted on micro

miniature package SSON004X1010 (1.0 mm



1.0 mm



0.6 mm). It has excellent noise characteristics and load

responsiveness characteristics despite its low circuit current consumption of 35µA. It is most appropriate for various

applications such as power supplies for logic IC, RF, and camera modules. Micro miniature SSON004X1010 with built-in

heatsink is adopted for the package, which contributes to the space-saving design of the set.

●Features

1) High-accuracy output voltage of

1%

(25 mV on Vout<2.5V products)

2) High ripple rejection: 70 dB (Typ., 1 kHz,)

3) Compatible with small ceramic capacitor (CIN=Co=0.47 µF)

4) Low current consumption: 35 µA

5) ON/OFF control of output voltage

6) With built-in overcurrent protection circuit and thermal shutdown circuit

7) With built-in output discharge circuit

8) Adopting ultra-small package SSON004X1010

●Applications

Battery-powered portable equipment, etc.

●Line

■200

mA BU□□TD2WNVX Series

Product Name

1.0

○

BU□□TD2WNVX

2.6

○

1.2

○

2.7

○

1.5

○

2.8

○

1.8

○

2.85

○

1.85

○

2.9

○

1.9

○

3.0

○

2.0

○

3.1

○

2.05

○

3.2

○

2.1

○

3.3

○

2.3

○

3.4

○

2.5

○

SSON004X1010

Package

Model name：BU□□TD2WNVX

Symbol

□□

Output voltage

(V)

1.0 V(Typ.)

1.2 V(Typ.)

1.5 V(Typ.)

1.8 V(Typ.)

1.85 V(Typ.)

1.9 V(Typ.)

□□

Contents

Specification of output voltage

Output voltage

(V)

2.0 V(Typ.)

2.05 V(Typ.)

2.1 V(Typ.)

2.3V(Typ.)

2.5 V(Typ.)

2.6 V(Typ.)

□□

Output voltage

(V)

2.7 V(Typ.)

2.8 V(Typ.)

2.85 V(Typ.)

2.9 V(Typ.)

3.0 V(Typ.)

3.1 V(Typ.)

□□

Output voltage

(V)

3.2 V(Typ.)

3.3 V(Typ.)

3.4 V(Typ.)

www.rohm.com

1/41

2011.07 - Rev.C
