BD020-10-B-E-0350-0300-L-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD020-10-B-E-0350-0300-L-D

BD020-10-B-E-0350-0300-L-D: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD020-10-B-E-0350-0300-L-D Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle,

BD020-10-B-E-0350-0300-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.1 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BD020
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

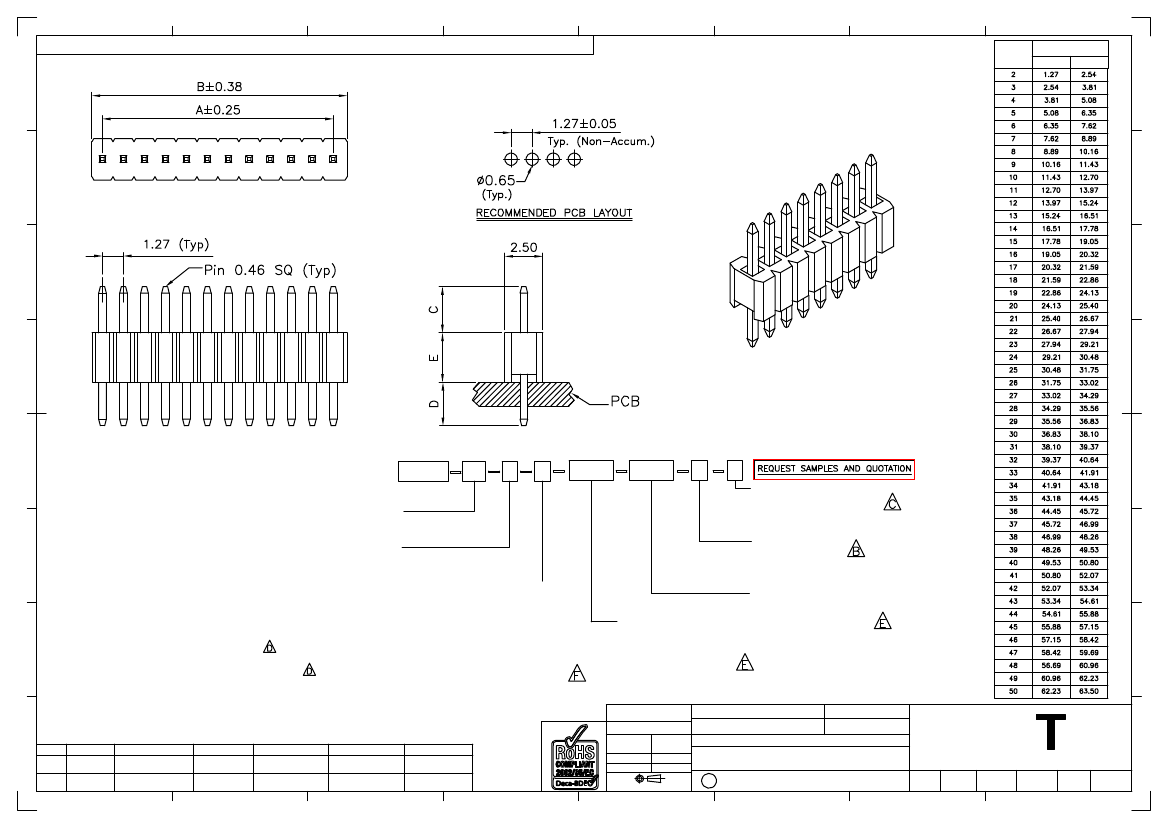

Global Connector Technology Ltd. - BD020: 1.27mm PITCH PIN HEADER, SINGLE ROW, THROUGH HOLE, VERTICAL

CONTACTS

DIMENSIONS

Ordering Grid

BD020

SPECIFICATIONS

规格

XXXX

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP (Standard)

N = Nylon 6T

No. of Contacts

02 to 50

CURRENT RATING

电流额定值：

1 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

Contact Plating

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

A = Gold Flash All Over

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

B = Selective Gold Flash Contact Area/

CONTACT MATERIAL

端子物料：

COPPER ALLOY

Tin On Tail

INSULATOR MATERIAL

绝缘½物料

C = Tin All Over

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

G = 10µ" Gold Contact Area/Tin On Tail

OPTIONS

可选物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

I = 30µ" Gold Contact Area/Tin On Tail

SOLDERING PROCESS

可焊性

Standard = Gold Flash All Over

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

NYLON 6T (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BD069

BD070

Insulator

Height E

J = 1.40mm

G = 1.70mm

E = 2.54mm

F = 3.0mm

Standard = 1.40mm

Dimension C (1/100mm)

(Post Height)

Standard - 3.50mm = 0350

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Tolerances

(Except as noted)

Dimension D (1/100mm)

(Tail Length)

Standard - 3.0mm = 0300

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±2°

.XX°±1°

.XXX°±0.5°

BD020

Description:-

28 DEC 07

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

28/12/07

STANDARD INSULATOR

MATERIAL CHANGED

AMENDMENT TO

PACKING OPTIONS SOLDER TEMP & MATES

WITH INFO. UPDATED STANDARD DIMENSIONS

INSULATOR STANDARD

CHANGED

1.27mm PITCH PIN HEADER, SINGLE ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

27/04/09

20/05/09

27/07/09

08/12/09

04/06/10

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH

E & OE

Sheet No.

1/1
