BZW03D...
Vishay Telefunken
Silicon Z–Diodes and Transient Voltage Suppressors
Features
D
Glass passivated junction
D
Hermetically sealed package
D
Clamping sealed package
Applications
94 9588
Voltage regulators and transient suppression circuits
Absolute Maximum Ratings
T
j
= 25
_
C
Parameter
Power dissipation
Repetitive peak reverse power dissipation
Non repetitive peak surge power dissipation
Junction temperature
Storage temperature range
Test Conditions
l=10mm, T
L
=25
°
C
T
amb
=45
°
C
t
p
=100
m
s, T
j
=25
°
C
Type
Symbol
P
V
P
V
P
ZRM
P
ZSM
T
j
T
stg
Value
6.0
1.85
20
1000
175
–65...+175
Unit
W
W
W
W
°
C
°
C
Maximum Thermal Resistance
T
j
= 25
_
C
Parameter
Test Conditions
Junction ambient l=25mm, T
L
=constant
on PC board with spacing 37.5mm
Symbol
R
thJA
R
thJA
Value
30
70
Unit
K/W
K/W
Electrical Characteristics
T
j
= 25
_
C
Parameter
Forward voltage
Test Conditions
I
F
=1A
Type
Symbol
V
F
Min
Typ
Max
1.2
Unit
V
Document Number 85603
Rev. 2, 01-Apr-99
www.vishay.de
•
FaxBack +1-408-970-5600
1 (5)
BZW03D...
Vishay Telefunken

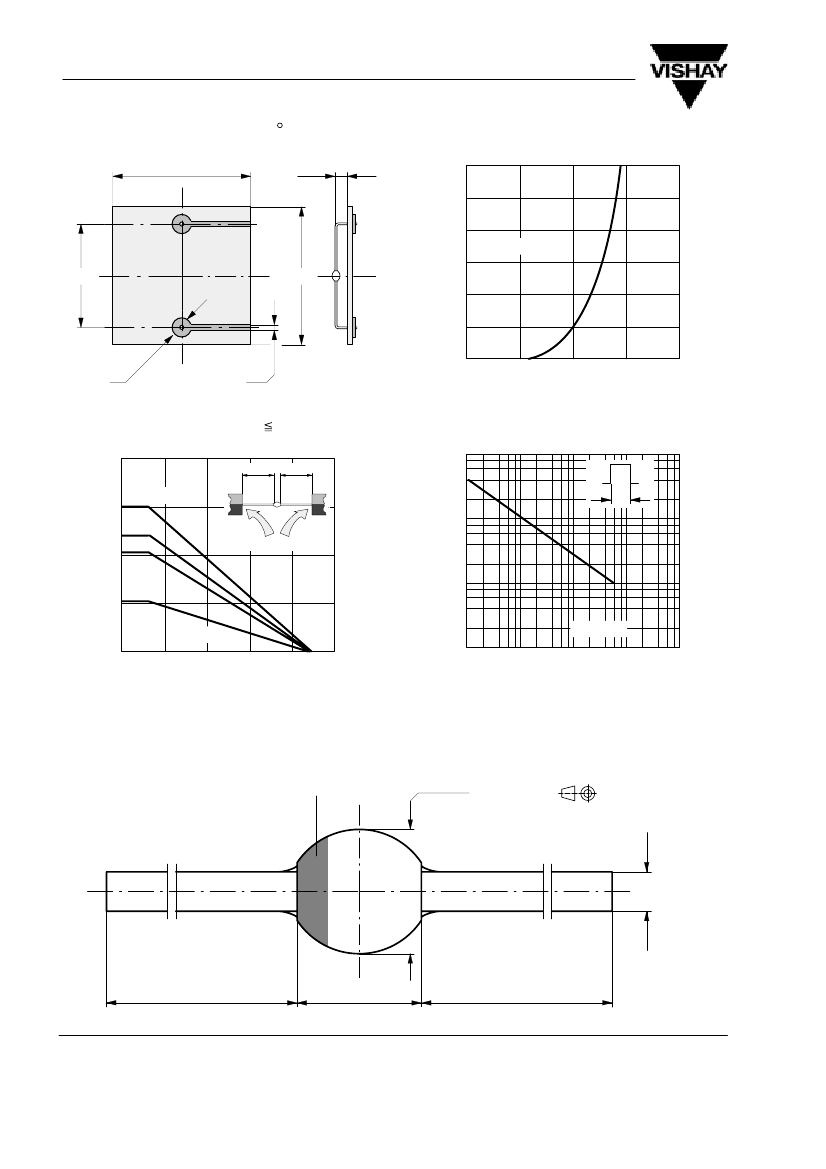

Characteristics
(T
j
= 25
_
C unless otherwise specified)
50
3
I
F
– Forward Current ( A )
6
5
4
T
j
= 25°C
3
2
1
0
7
2
94 9087
95 9609
37.5
50
0
0.5
1.0
1.5
2.0
V
F
– Forward Voltage ( V )
Figure 1. Epoxy glass hard tissue, board
thickness 1.5 mm, R
thJA
70 K/W
x
Figure 3. Forward Current vs. Forward Voltage
10000
P
ZSM
– Non-Repetitive Surge Power
Dissipation ( W )
8
P
tot
– Total Power Dissipation ( W )
l
l=10mm
6
15mm
4
20mm
T
L
=constant
l
t
p
1000
100
2
see Fig.1
0
0
40
80
120
160
200
T
j
= 25°C
10
0.01
0.1
1
10
100
95 9608
T
amb
– Ambient Temperature (
°C
)
95 9610
t
p
– Pulse Length ( ms )
Figure 2. Total Power Dissipation vs.
Ambient Temperature
Figure 4. Non Repetitive Surge Power Dissipation vs.
Pulse Length
Dimensions in mm
Sintered Glass Case
SOD 64
Weight max. 1.0 g
Cathode Identification
∅
4.3 max.
technical drawings
according to DIN
specifications
∅
1.35 max.
26 min.
4.2 max.
26 min.
94 9587
www.vishay.de
•
FaxBack +1-408-970-5600
4 (5)
Document Number 85603
Rev. 2, 01-Apr-99
BZW03D...
Vishay Telefunken
