BZW03-Series
Vishay Semiconductors
Zener Diodes with Surge Current Specification
Features
• Glass passivated junction
• Hermetically sealed package
• Clamping time in picoseconds
• Compliant to RoHS directive 2002/95/EC
and in accordance to WEEE 2002/96/EC
• Halogen-free according to IEC 61249-2-21
definition
949588
Applications
• Voltage regulators and transient suppression
circuits
Mechanical Data
Case:
SOD-64
Weight:
approx. 858 mg
Packaging codes/options:
TAP / 2.5 k Ammopack (52 mm tape), 12.5 k/box
TR / 2.5 k 10 " reel
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Power dissipation
Repetitive peak reverse power
dissipation
Non repetitive peak surge power
dissipation
Junction temperature
Storage temperature range
t
p
= 100
μs,
T
j
= 25 °C
Test condition
l = 10 mm, T
L
= 25 °C
T
amb
= 45 °C
Symbol
P
diss
P
diss
P
ZRM
P
ZSM
T
j
T
stg
Value
6
1.85
20
1000
175
- 65 to + 175
Unit
W
W
W
W
°C
°C
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Junction ambient
Test condition
l = 25 mm, T
L
= constant
On PC board with spacing 37.5 mm
Symbol
R
thJA
R
thJA
Value
30
70
Unit
K/W
K/W
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Forward voltage
Test condition
I
F
= 1 A
Symbol
V
F
Min.
Typ.
Max.
1.2
Unit
V
Document Number 85602
Rev. 1.5, 26-Aug-10
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
1
BZW03-Series
Vishay Semiconductors

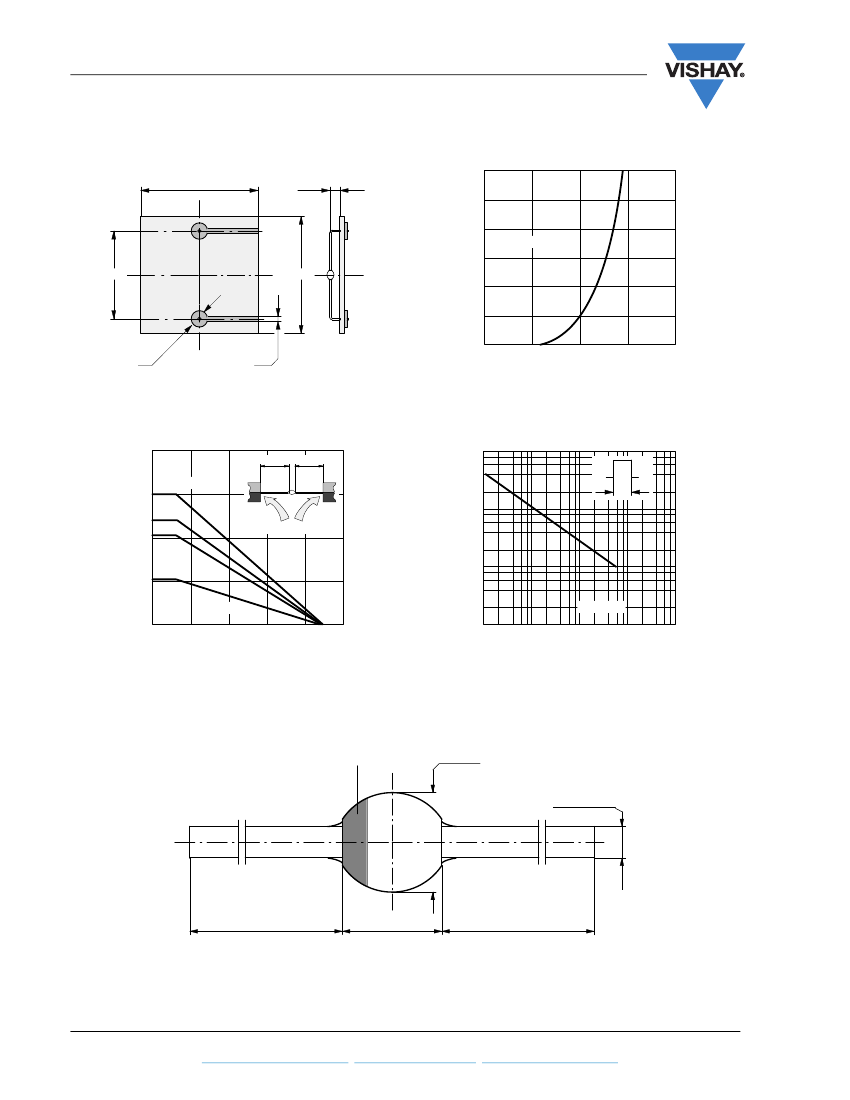

Typical Characteristics
(T
amb
= 25 °C, unless otherwise specified)
6
50
3
I
F
– Forward Current ( A )
5
4
T
j
=25°C
3
2
1
0
37.5
50
7
2
94 9087
0
95 9609
0.5
1.0
1.5
2.0
V
F
– Forward
Voltage
(
V
)
Figure 1. Epoxy Glass Hard Tissue, Board Thickness 1.5 mm,
R
thJA
≤
70 K/W
Figure 3. Forward Current vs. Forward Voltage
8
P
tot
–Total Power Dissipation (
W
)
l
l=10mm
6
15mm
4
20mm
2
see Fig.1
0
0
40
80
120
l
P
ZSM
–
Non-Repetitive
Surge Power
Dissipation (W )
10 000
t
p
1000
T
L
=constant
100
T
j
=25°C
10
0.01
0.1
1
10
100
160
200
95 9610
95 9608
T
amb
– Ambient Temperature ( °C )
t
p
– Pulse Length ( ms )
Figure 2. Total Power Dissipation vs. Ambient Temperature
Figure 4. Non Repetitive Surge Power Dissipation vs.
Pulse Length
Package Dimensions
in millimeters (inches):
SOD-64
Sintered Glass Case
SOD-64
Cathode Identification
4.3 (0.168) max.
1.35 (0.053) max.
26(1.014) min.
4 (0.156) max.
26 (1.014) min.
Document-No.: 6.563-5006.4-4
Rev. 3 - Date: 09.February.2005
94 9587
www.vishay.com
4
For technical questions within your region, please contact one of the following: Document Number 85602
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
Rev. 1.5, 26-Aug-10
