BF036-28-A-0400-0300-0127-N-C datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF036-28-A-0400-0300-0127-N-C

BF036-28-A-0400-0300-0127-N-C: DescriptionBoard Connector, 28 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size168KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF036-28-A-0400-0300-0127-N-C Overview

Board Connector, 28 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BF036-28-A-0400-0300-0127-N-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.079 inch
subject depth	0.177 inch
body length	2.205 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BF036
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	28

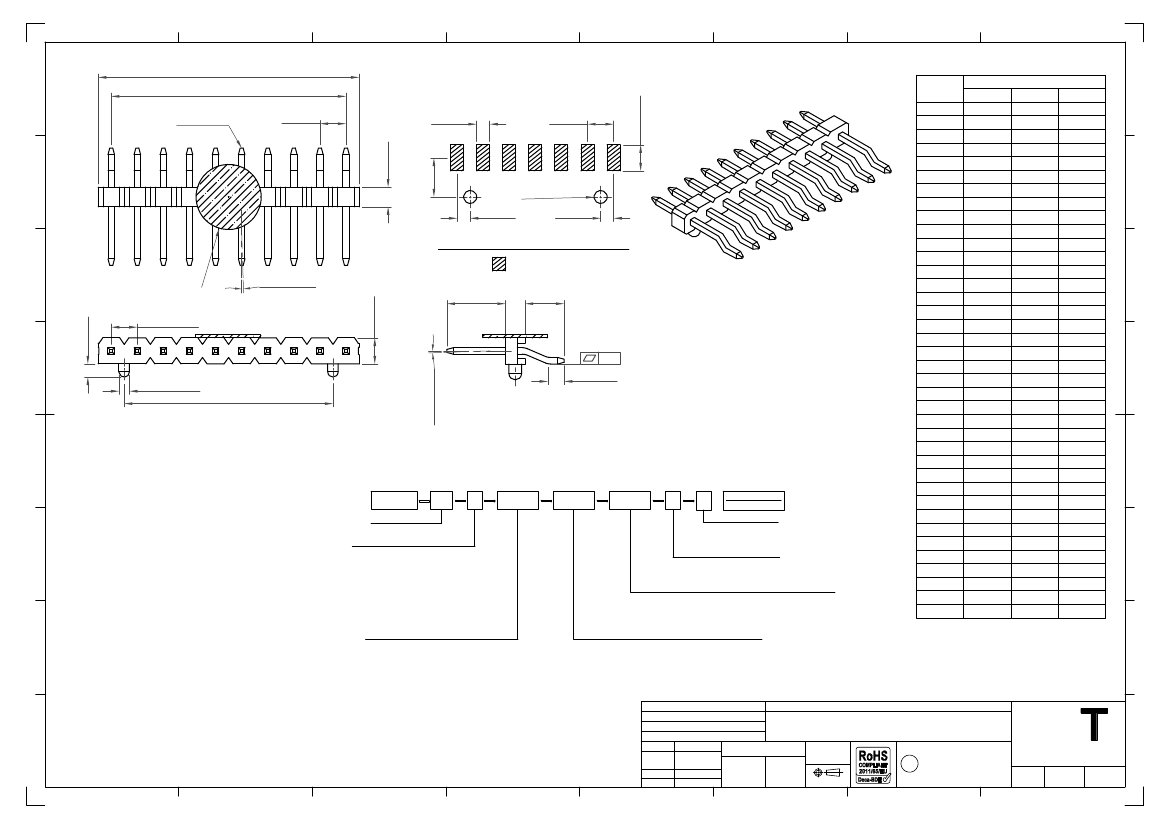

Preview

Download Datasheet

View All

B±0.35

A±0.25

F+1.0

Pin 0.50 sq

No. of

Contacts

Dimensions

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

58.0

60.0

62.0

64.0

66.0

68.0

70.0

72.0

74.0

76.0

78.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

58.0

60.0

62.0

64.0

66.0

68.0

70.0

72.0

74.0

76.0

78.0

80.0

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

58.0

60.0

62.0

64.0

66.0

68.0

70.0

72.0

74.0

76.0

2.00

1.50

1.00

2.00

3.00

2x Ø1.00

1.00

Recommended PCB Layout

Ø 5 .0

Solder Area

2° Max. Sway

1.00

2.00 typ.

2.00

(Either direction

at the top)

D±0.2

E±0.2

(Either direction

at the top)

2° max. Toe

0.15

2x ø0.80

F±0.2

C±0.20

Specifications

规格

Material

物料

Insulator

绝缘½

: LCP, UL94V-0, Black

Standard

标准

: Polyamide, Nylon 6T, UL 94V-0

Options

可选

: Polyester, LCP, UL 94V-0

Contact Terminal

接触端子

: Copper Alloy

Plating

电镀

Underplating

底层电镀

: Nickel all over

Contact Area

接触部分

: Gold Flash or 15µ" Gold

Electrical

电气

Current Rating

电流额定值

: 2A

Contact Resistance

接触电阻值

: 20 mΩ max.

Insulating Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstand Voltage

耐电压

: 500V AC

Mechanical & Environmental

机械

环境

Soldering Process

可焊性

Nylon 6T (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

:230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

LCP (Option

可选物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

:250°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

Ordering Grid

BF036

XXXX

Request Samples

and Quotation

No. of Contacts

03 to 40

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Dimension D

(1/100mm) (Post Length)

0400 = 4.00mm

(Standard)

Or specify custom Post Length

eg 0250 = 2.50mm

Packing Options

C = Tape and Reel with Film

(Standard)

D = Tube

Insulator Material

N = Nylon 6T

(Standard)

L = LCP

Dimension F

(1/100mm) (Pin Curve to End of Pin)

0127 = 1.27mm

(Standard)

Or specify custom 'Pin Curve to End of Pin' length

eg 0170 = 1.70mm (Maximim length)

Dimension E

(1/100mm) (Insulator to End of Pin)

0300 = 3.00mm

(Standard)

Or specify custom 'Insulator to End of Pin' length

eg 0250 = 2.50mm

Operating Temperature

工½温度

Gold Plating: -40°C to +125°C

Tin Plating: -40°C to +105°C

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

BF070

BF085

BF090

Part Number

Product Description

BF036

Drawing Date

19th May 2010

Detail

Revision

Date

30/03/15

AJO

Length

2.00mm Pitch Pin Header

Single Row, SMT, Horizontal with Locating Peg

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 3°

X.X ± 0.25

X.XX ± 0.15 X.XX° ± 2°

X.XXX ± 0.10 X.XXX° ± 1°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

www.gct.co

Not to

Scale

Sheet No.

1/1
