Film Chip Capacitors
PEN DIELECTRIC – CB Series
GENERAL DESCRIPTION
Film chip capacitor using a naked and stacked construction with
metallized PEN (polyethylene naphtalate).
ADVANTAGES
• Use of high temperature dielectric films make these
capacitors suitable for IR or vapor phase reflow processes.
This chip is built without specific encapsulation.
• The intrinsic elasticity of the dielectric film allows an
excellent compatibility of the capacitor with all types of
material for printed circuit boards.
• The self-healing property of film technology results to a
safety open failure mode and better overall reliability.
• Excellent thermal shock resistance.
• Low dissipation factor ESR & ESL.
• No piezoelectric effect.
• Available in tape and reel suitable for automatic placement.
• Non-polar construction.
APPLICATIONS
General purpose function in low voltage applications where
miniaturization and SMD is required. Typical applications
would be:
• Automotive (Airbag, Fuel injection calculator...)
• Telecom (Public switching systems, modems, telephone
set, cordless, mobile)
• Industrial (SMPS, Power convertor module...)

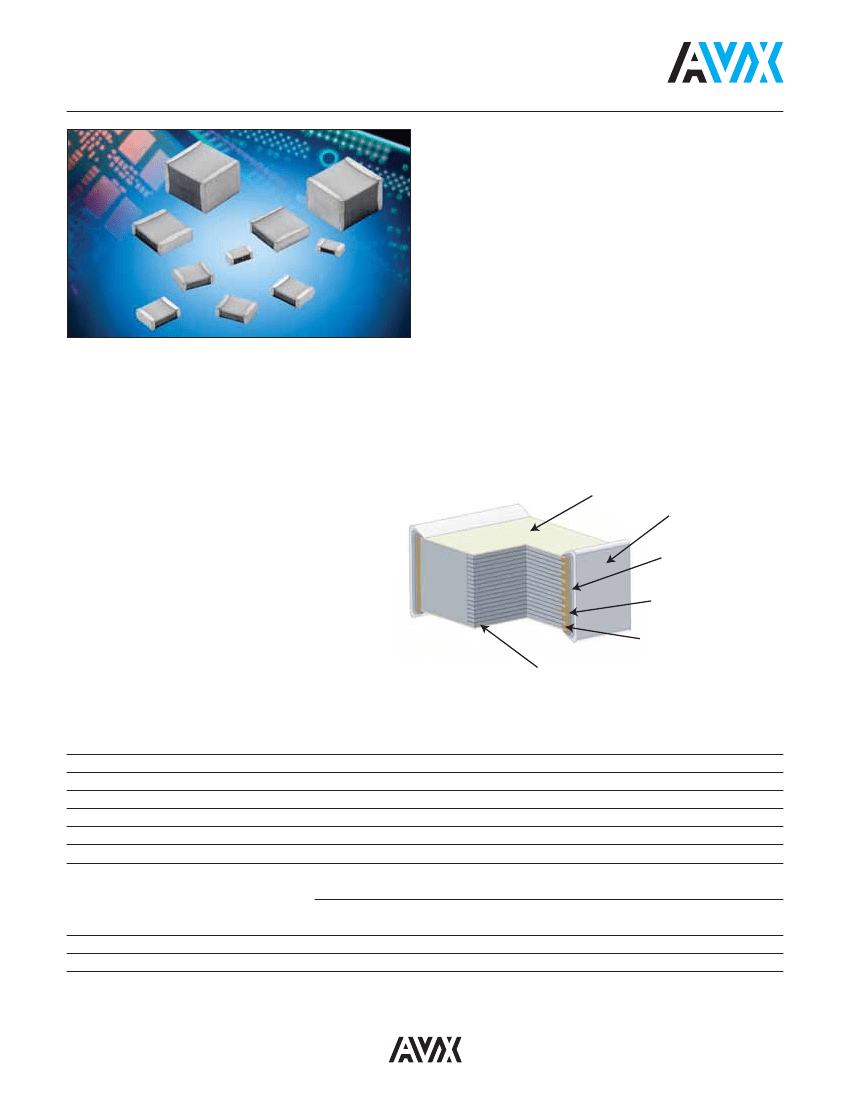

Outer Layer
Termination Plating :
100% matte Sn
Ni Barrier Under
Termination
Silver Epoxy
Resin
Brass
Active Layers : PEN dielectric
PERFORMANCE CHARACTERISTICS
Climatic Category
Capacitance Range
Tolerance on C
R
Nominal Voltages
Test Voltage
Soldering methods
Tangent of Loss Angle at 1kHz (DF)
Insulation resistance minimum : IR
55/125/56
1nF to 4.7μF
±5%, ±10%
25Vdc to 630Vdc
1.4Vr 2 sec. at 25°C
IR or vapor phase reflow (not suitable for wave soldering)
< 100 x 10
-4
for C ≤ 0.33μF IR > 1000 MΩ at 20°C for 1 min. charge at 10Vdc
for VR < 100Vdc and 100Vdc for VR ≥ 100Vdc
for C > 0.33μF IR C > 400 sec. at 20°C for 1 min. charge at 10Vdc
for VR < 100Vdc and 100Vdc for VR ≥ 100Vdc
-55°C to 125°C with voltage derating of 1.25%/°C between 105°C and 125°C
For high frequency A.C. application please check with AVX
Temperature range
A.C. applications
20
Film Chip Capacitors
PEN DIELECTRIC – CB Series

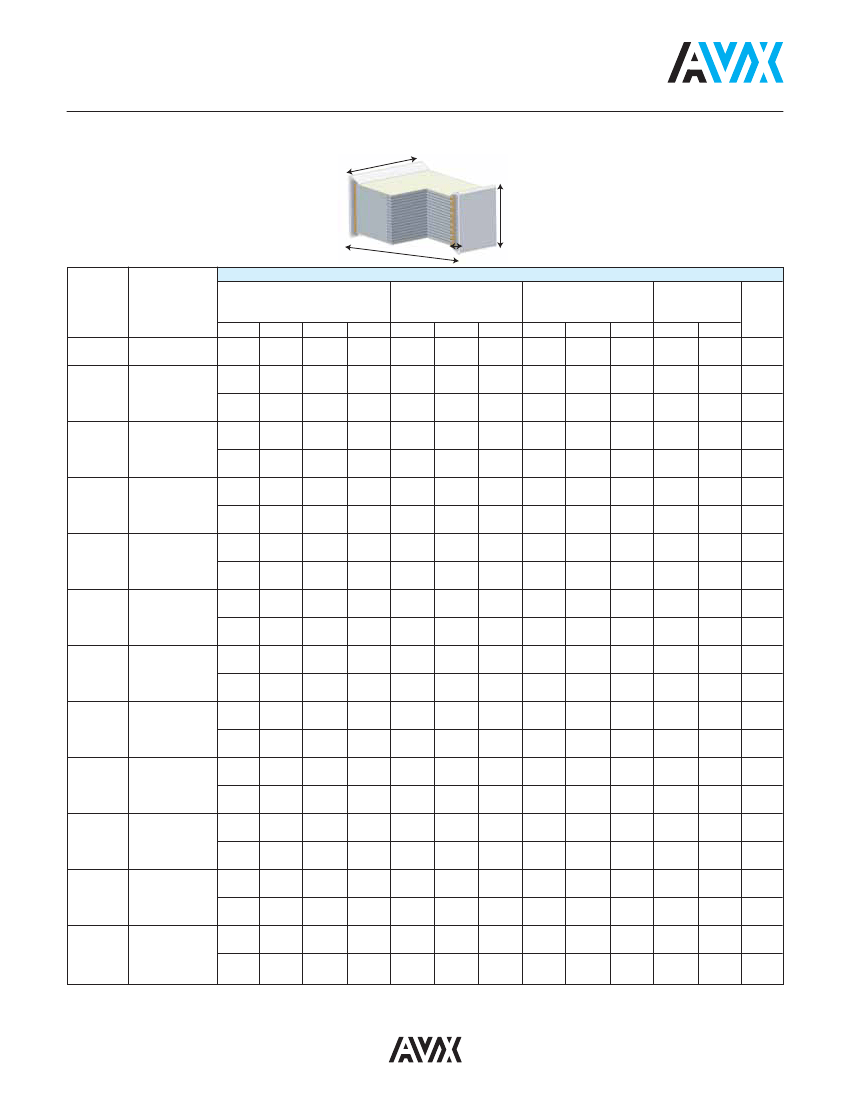

CAPACITANCE VALUES (CR) AND NOMINAL VOLTAGES (VR)
W
H
T
L
millimeters (inches)
Reel
Pkg
Code
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
BA
VOLTAGE Vdc: 25V Vac: 16V
Capacitance
Range
(CR)
0.001μF
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0047
0.0056
0.0068
0.0082
0.010μF
0.012
0.015
0.018
0.022
0.027
0.033
0.047
0.056
0.068
0.082
0.100μF
Ordering
Code
CB017C0102+ --
CB017C0122+ --
CB017C0152+ --
CB017C0182+ --
CB017C0222+ --
CB017C0272+ --
CB017C0332+ --
CB017C0472+ --
CB017C0562+ --
CB017C0682+ --
CB017C0822+ --
CB017C0103+ --
CB017C0123+ --
CB017C0153+ --
CB017C0183+ --
CB017C0223+ --
CB027C0273+ --
CB027C0333+ --
CB027C0473+ --
CB027C0563+ --
CB027C0683+ --
CB027C0823+ --
CB027C0104+ --
L
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
3.30
(0.130)
Chip Dimensions
*Tolerances
(page 6)
W
H max
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
1.60
1.15
(0.063) (0.045)
2.50
1.80
(0.098) (0.071)
2.50
1.80
(0.098) (0.071)
2.50
1.80
(0.098) (0.071)
2.50
1.80
(0.098) (0.071)
2.50
1.80
(0.098) (0.071)
2.50
2.20
(0.098) (0.087)
2.50
2.30
(0.098) (0.091)
Tape Dimensions
T
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
0.50
(0.020)
W
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
8.00
(0.315)
P1
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
4.00
(0.158)
K0
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.20
(0.047)
1.90
(0.075)
1.90
(0.075)
1.90
(0.075)
1.90
(0.075)
1.90
(0.075)
2.33
(0.092)
2.33
(0.092)
Reel Dimensions
A
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
(7.087)
180
( 7.087)
180
( 7.087)
180
( 7.087)
180
( 7.087)
180
( 7.087)
180
( 7.087)
180
( 7.087)
W1
W2
max
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
8.40
14.4
(0.331) (0.567)
Packaging Unit
Bulk
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
Reel
3900
3900
3900
3900
3900
3900
3900
3900
3900
3900
3900
3900
3900
3900
3900
3900
2500
2500
2500
2500
2500
2000
2000
For other Values: upon request
Replace the + by the tolerance code:
J = 5% or K = 10%
Replace the -- by the packaging suffix: -- = bulk
BA = tape & reel
