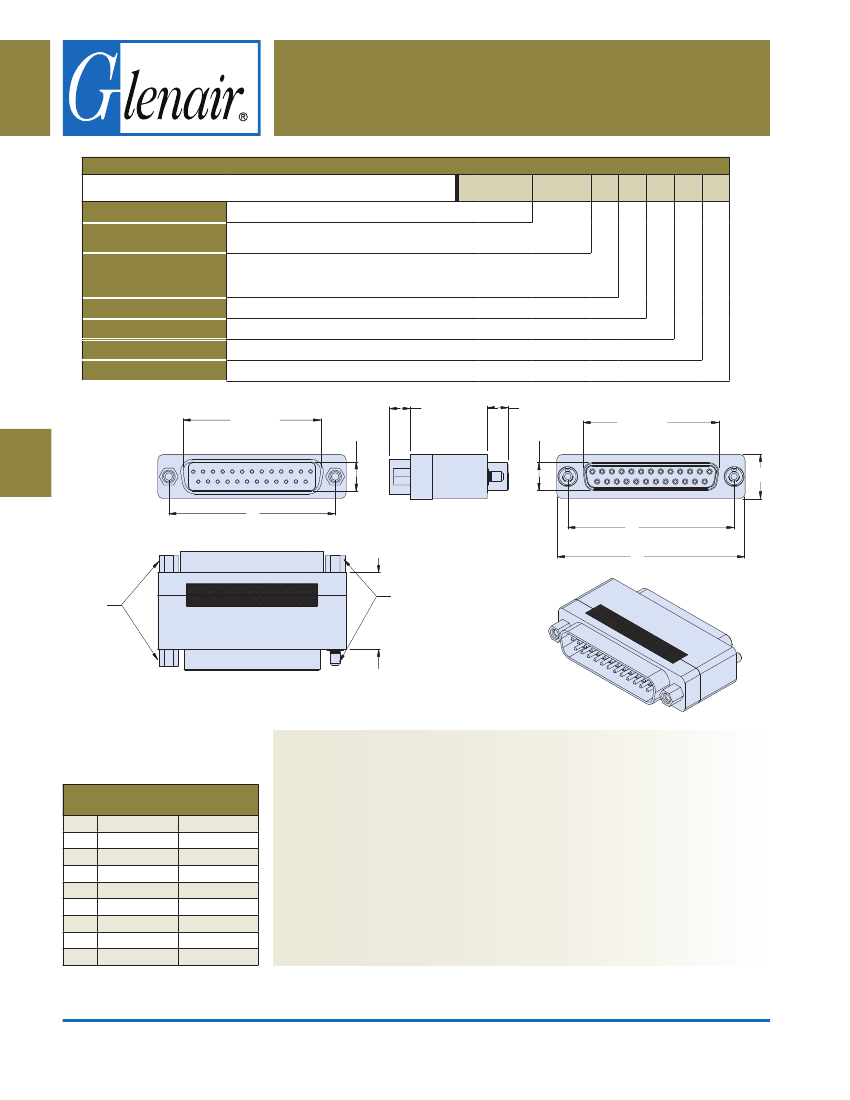

D-Subminiature
MIL-DTL-24308 Type
Sample Part Number
Series
Shell Size/
Insert Arrangement
Shell Material/Finish
Filter Type
Filter Class
EMI Spring
Hardware Option
240-051
See Table I
A, B, C, D, E, F, G, J
(See Table I)
F Pin
G Pin
240-051
D-Subminiature Filter Adapter
How To Order Filter D-Subminiature Sav-Con® Connector Savers
240-051
-5H78
GS
P
G
G
B
Aluminum Shell
ME
- Electroless Nickel
JF
- Yellow Cadmium
MT
- Nickel-PTFE
Z2
- Gold
E
- Chem Film
C
- C Filter
P
- Pi Filter (See Table I)
Brass Shell
GS
- Gold
G
- EMI Spring (Plug/Pin Only)
N
- No Spring
B
- No Hardware
P
- Combination Jackpost/Jackscrew
P1
-Fixed Jackposts, both sides
.236 (6.0)
Pin
.229 (5.8)
.248 (6.3)
Socket
.238 (6.0)
D Socket
B Socket
E
C
C
A
Hardware
Option P
E
Hardware
Option P1
.880 (22.4)
.840 (21.3)
Notes
Table I: Capacitor Array Code
Capacitance Range
Class Pi - Circuit (pF) C - Circuit (pF)
A
38,000 - 56,000 19,000 - 28,000
B
32,000 - 45,000 16,000 - 22,500
C
D
E
F
G
J
18,000 - 33,000
8,000 - 12,000
3,300 - 5,000
800 - 1,300
400 - 600
70 - 120
9,000 - 16,500
4,000 - 6,000
1,650 - 2,500
400 - 650
200 - 300
35 - 60
1. Assembly to be identified with Glenair’s name, part number, and date code
space permitting
2. Dimensions B and D taken from inside of shell for Pin/Plug and outside for Socket/
Receptacle.
3. Electrical Performance:
Dielectric Withstanding Voltage: 500 VDC
Insulation Resistance: 5,000 megohms @ 200 VDC
Current Rating Standard Density: 7.5 Amps max.
Current Rating High Density: 5 Amps max.
Materials/Finishes:
Insulators - High Grade Rigid Dielectric/N.A.
Contacts - Copper Alloy/Gold Plated
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-10
