PHTS33G1-R: DescriptionBoard Connector, 33 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PHTS33G1-R Overview

Board Connector, 33 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

PHTS33G1-R Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.295 inch
subject depth	0.102 inch
body length	1.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	PHTS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	33

Preview

Download Datasheet

View All

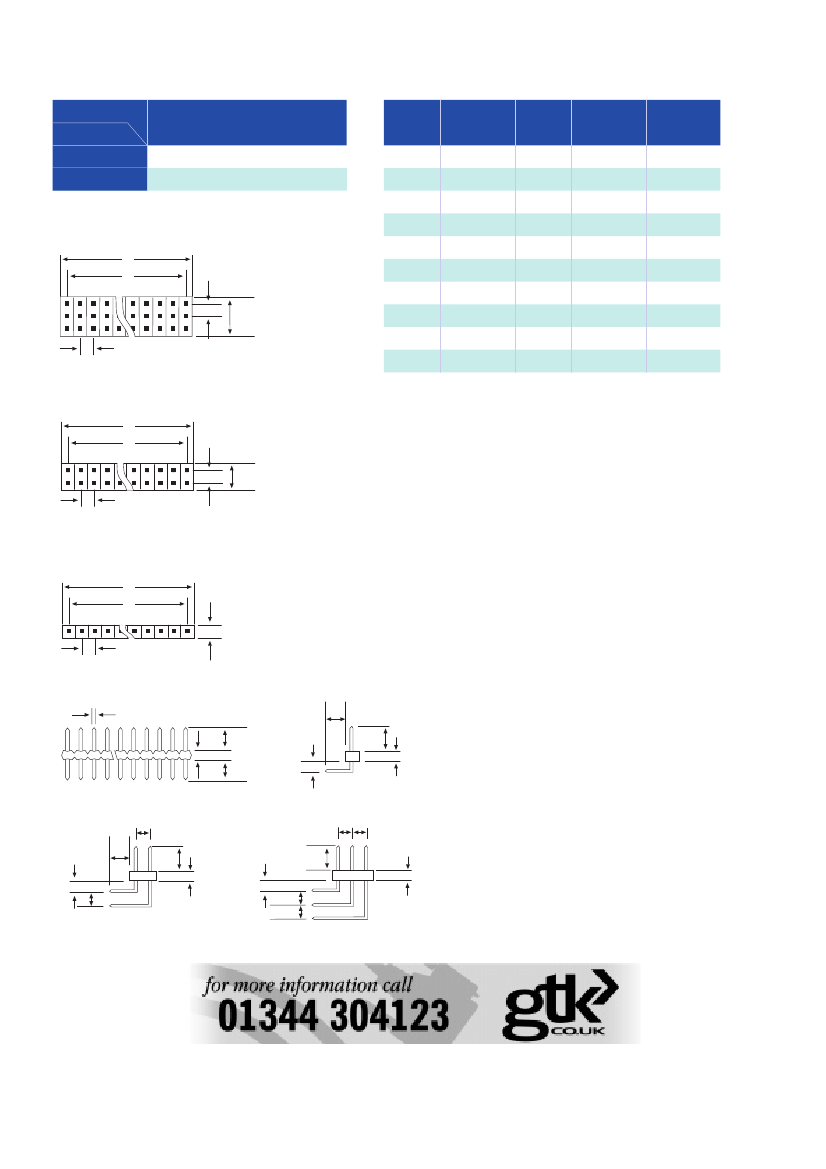

Pin Headers

Pin Headers - 2.54mm PCB

PCB Connectors

Position

Dimension

A

B

2 thru 40

4 thru 80

2.54mm x Position No.

2.54mm x (Position No. -1)

No.

Rows

Single

Double

Single

Orientation

Straight

Right Angle

Straight

Right Angle

Straight

Plating

Part

Number

PHSS**T1

PHDS**T1

PHSR**T1

PHDR**T1

PHTS**T1

PHSS**G1

PHDS**G1

PHSR**G1

PHDR**G1

PHTS**G1

No. Pins

Available

1 - 40

4 - 80

1 - 40

4 - 80

6 - 120

1 - 40

4 - 80

1 - 40

4 - 80

6 - 120

Tin

Gold

Triple Row Header

A

B

2.54

7.5

Double

Triple

Single

Double

Single

Double

2.54

Double Row Header

A

B

2.54

5.0

Triple

Single Row Header

A

B

2.50

2.54

0.64

2.6 6.1

±

0.2

3.1

±

0.2

1.5

2.54 2.54

6.1

2.6

2.54

1.5

2.54

6.1

2.6

4.1

6.1

2.6

2.54

4.1

1.5
