303119ZU-3R01-F-G-T datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 303119ZU-3R01-F-G-T

303119ZU-3R01-F-G-T: DescriptionFixed Resistor, Metal Foil, 0.5W, 3.01ohm, 1% +/-Tol, -.2,.2ppm/Cel, 2516; CategoryPassive components The resistor; File Size357KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

303119ZU-3R01-F-G-T Overview

Fixed Resistor, Metal Foil, 0.5W, 3.01ohm, 1% +/-Tol, -.2,.2ppm/Cel, 2516

303119ZU-3R01-F-G-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
Manufacturer's serial number	303119Z
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	1.02 mm
Package length	6.35 mm
Package form	SMT
Package width	4.06 mm
method of packing	TR
Rated power dissipation(P)	0.5 W
resistance	3.01 Ω
Resistor type	FIXED RESISTOR
series	303119Z
size code	2516
technology	METAL FOIL
Temperature Coefficient	-.2,.2 ppm/°C
Tolerance	1%

Preview

Download Datasheet

View All

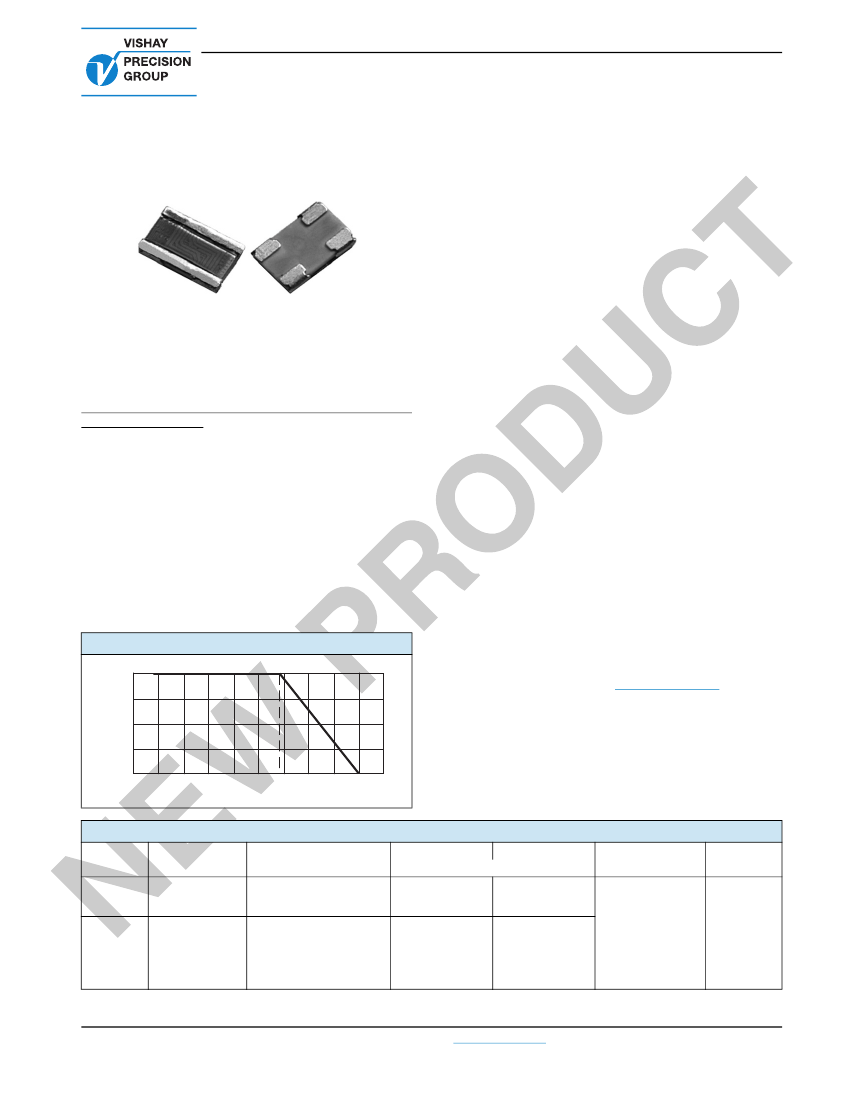

303119Z, 303119

Vishay Foil Resistors

Models # 303119Z and 303119 (Current Sensing Fixed Foil Resistor Chips

VCS1625Z/VCS1625 Configuration) Screen/Test Flow in Compliance with

EEE-INST-002, (Tables 2A and 3A, Film/Foil, Level 1) and MIL-PRF-55342

FEATURES



Temperature coefficient of resistance (TCR):

± 0.05 ppm/°C typical (0 °C to + 60 °C)

± 0.2 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C ref.)

(see table 1)



Resistance range: 0.01



to 10



INTRODUCTION

The Z-foil technology provides a significant reduction of

the resistive component’s sensitivity to ambient temperature

variations (TCR) and applied power changes (PCR).

Designers can now guarantee a high degree of stability

and accuracy in fixed-resistor applications using solutions

based on Vishay‘s revolutionary Z-foil technology.

0.05 ppm/°C absolute TCR removes errors due to

temperature gradients.

Models 303119Z and 303119 are surface mount chip

resistors designed with 4 pads for Kelvin connection.

Utilizing Vishay’s Bulk Metal

Z-foil as the resistance

element, 303119Z provides performance capabilities far

greater than other resistor technologies can supply in a

product of comparable size.

These small devices dissipate heat almost entirely through

the pads so surface mount users are encouraged to be

generous with the board’s pads and traces. Gold

terminations are available as well.

Our application engineering department is available to

advise and to make recommendations.



Vishay Foil resistors are not restricted to standard values,

specific “as required” values can be supplied at no extra

cost or delivery (e.g. 1.234



vs. 1

)



Tolerance: to ± 0.5 %



Power coefficient “R due to self heating”: 5 ppm at rated

power



Load life stability: 0.05 % at 70 °C, 2000 h at rated power



Electrostatic discharge (ESD) up to 25 000 V



Short time overload < 0.02 %



Power rating: 0.5 W at + 70 °C (figure 1)



Non inductive, non capacitive design



Rise time: 1 ns effectively no ringing



Current rating: 5 A maximum



Current noise: < - 40 dB



Voltage coefficient: < 0.1 ppm/V



Non inductive: < 0.08 µH



Non hot spot design



For prototypes units, append a “U” to the model number

(example: 303119ZU). These units have all of the table 2A

(page 3) 100 % tests performed, with no destructive

qualification testing required (table 3A, page 3). For more

information, please contact

foil@vishaypg.com



For oriented performances please contact us

FIGURE 1 - POWER DERATING CURVE

Percent of Rated Power

- 55 °C

100

- 75

+ 70 °C

TERMINATIONS



Two options are available:

- tin/lead plated

- 50

- 25

+ 25

+ 50

+ 75 + 100 + 125 + 150 + 175

Ambient Temperature (°C)

- gold plated

TABLE 1 - SPECIFICATIONS

MODEL

NUMBER

303119Z

RESISTANCE

RANGE

> 2.0



to 10



> 0.5



to 2.0



0.3



to 0.5



> 2.0



to 10



> 0.5



to 2.0



> 0.1



to 0.5



> 0.05



to 0.1



> 0.03



to 0.05



> 0.01



to 0.03



TIGHTEST RESISTANCE

TOLERANCE

± 0.5 %

± 1.0 %

± 2.0 %

± 0.5 %

± 1.0 %

± 2.0 %

TYPICAL TCR

MAXIMUM TCR

(- 55 °C to + 125 °C, + 25 °C ref.)

± 0.2 ppm/°C

± 3 ppm/°C

± 5 ppm/°C

± 10 ppm/°C

± 15 ppm/°C

± 20 ppm/°C

± 30 ppm/°C

± 50 ppm/°C

0.5 W on FR4 PCB

POWER RATING

at + 70 °C

(1)

MAXIMUM

CURRENT

(1)

303119

± 2.0 ppm/°C

Note

(1)

Whichever is lower

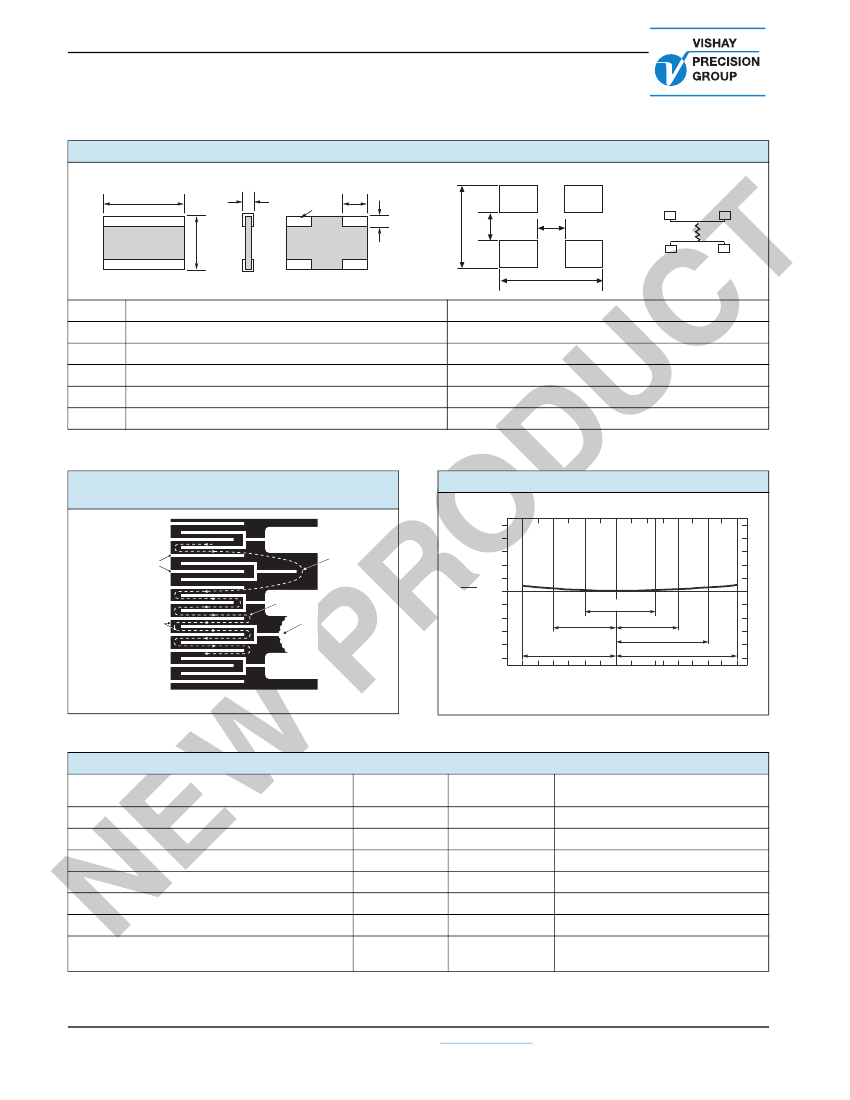

Document Number: 63167

Revision: 29-Mar-10

For any questions, contact:

foil@vishaypg.com

www.foilresistors.com
