350CFX6R8MCE10X16: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350V, 6.8uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size152KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

350CFX6R8MCE10X16 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350V, 6.8uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

350CFX6R8MCE10X16 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	6.8 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.278 mA
Manufacturer's serial number	CFX
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	220 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

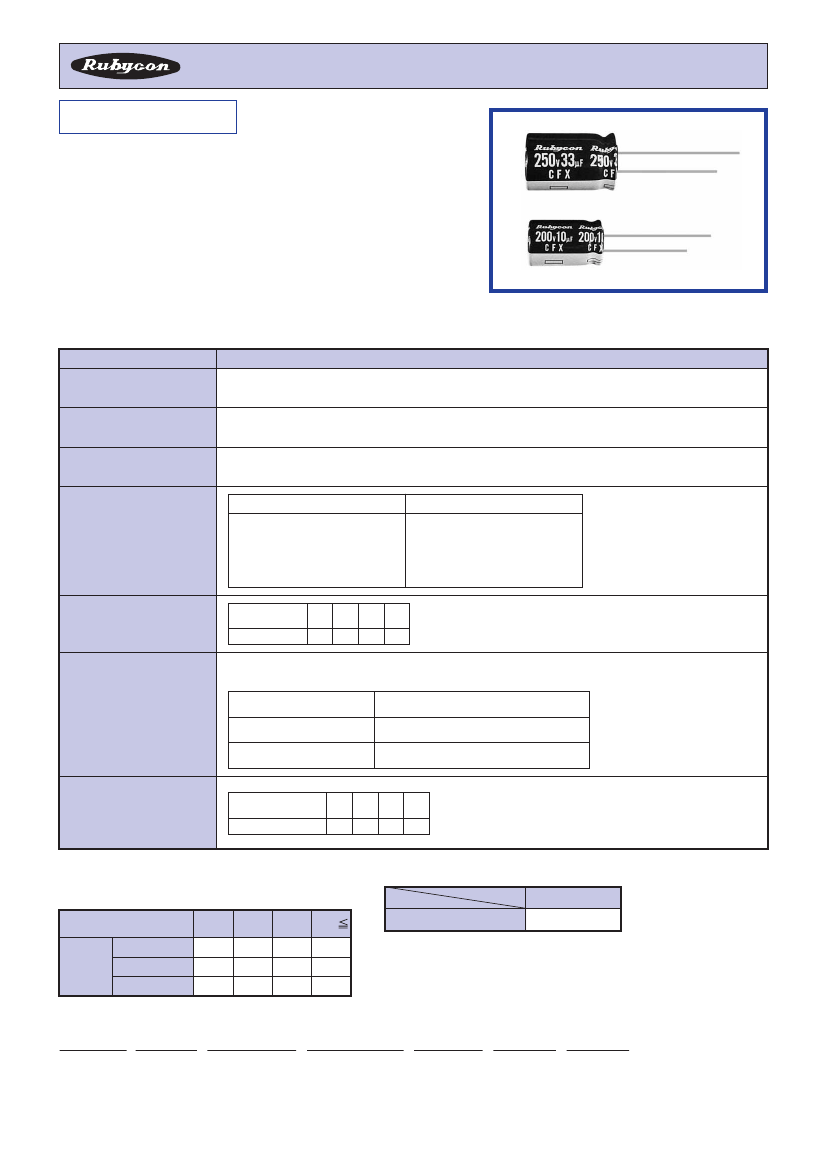

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

CFX

SERIES

Load Life : 105℃ 5000 hours.

◆FEATURES

・

High Ripple Current.

・

Electronic Ballast, Power Supply.

For

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−25∼＋105℃

200∼400V.DC

±20％

（20℃，

120Hz）

CV≦1000

CV＞1000

I＝0.04CV+100μA

( 1 minute)

I＝0.02CV+25μA

( 5 minute)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝0.1CV+40μA

( 1 minute)

I＝0.03CV+15μA

( 5 minute)

I＝(μA)

Leakage Current

C＝(μF)

Rated Capacitance

V＝(V)

Rated Voltage

(tanδ)

Dissipation Factor(MAX)

120Hz）

Rated Voltage 200 250 350 400

（20℃，

tanδ

0.15 0.15 0.20 0.20

After applying rated voltage with rated ripple current for 5000 hrs at 105℃,

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±20％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

200 250 350 400

3

6

（120Hz）

Z

（−25℃）（20℃） 3

/Z

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

Frequency

◆OPTION

Code

PET Sleeve

（Hz）

120

0.2

0.3

0.5

1k

0.4

0.6

0.8

10k 100k

0.8

0.9

1.0

EFC

2.2∼4.7μF

Coeﬃcient

6.8∼10μF

22∼100μF

◆PART NUMBER

□□□

Rated Voltage

CFX

Series

□□□□□

Rated Capacitance

M

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size
