ST1310EGAS-32.0000(T) datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ST1310EGAS-32.0000(T)

ST1310EGAS-32.0000(T): DescriptionVCXO, Clock, 32MHz Min, 125MHz Max, 32MHz Nom,; CategoryPassive components oscillator; File Size112KB，3 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

ST1310EGAS-32.0000(T) Overview

VCXO, Clock, 32MHz Min, 125MHz Max, 32MHz Nom,

ST1310EGAS-32.0000(T) Parametric

Parameter Name	Attribute value
Maker	Diodes
package instruction	DIP8/14,.3
Reach Compliance Code	compli
ECCN code	EAR99
Installation features	THROUGH HOLE MOUNT
Number of terminals	8
Maximum operating frequency	125 MHz
Minimum operating frequency	32 MHz
Nominal operating frequency	32 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Encapsulate equivalent code	DIP8/14,.3
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	35 mA
Nominal supply voltage	3.3 V
surface mount	NO
technology	HYBRID
Base Number Matches	1

Preview

Download Datasheet

View All

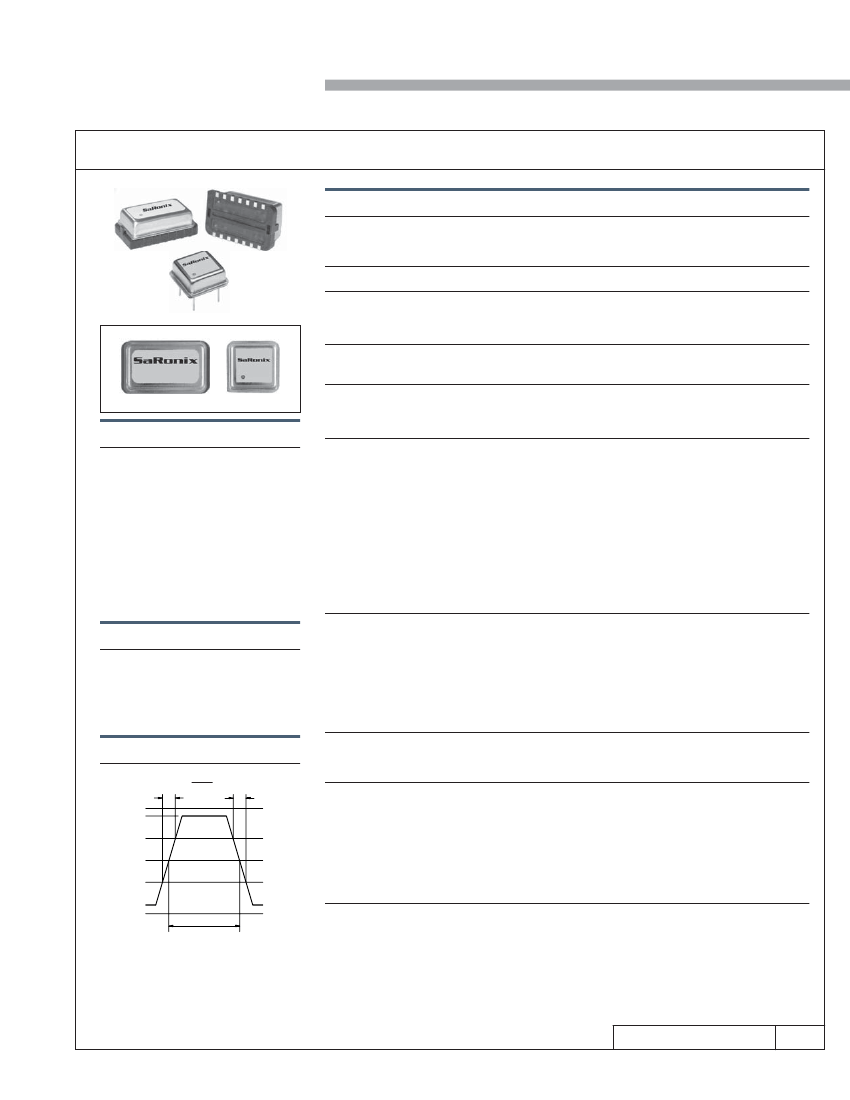

SaRonix

Voltage Controlled Crystal Oscillator

Technical Data

Frequency Range:

Frequency Stability:

3.3 & 5V, LVCMOS/LVTTL

Sx1310 / Sx1319 / Sx1510 / Sx1519 Series

32 MHz to 125 MHz

±25 or ±50 ppm over all conditions: operating temperature,

voltage change, load change, calibration tolerance, with V

= 2.5V @ 5V, VC = 1.65V @ 3.3V

@ 40°C: ±10 ppm max for 5 years or ±12 ppm max for 10 years

Aging:

Temperature Range:

Operating:

Storage:

Supply Voltage:

Recommended Operating:

ACTUAL SIZE

0 to +70°C or -40 to +85°C

-55 to +125°C

5 V ±5% or 3.3V ±10%

Description

A voltage controlled crystal oscillator

with a wide range of performance op-

tions to 125 MHz. The devices are pack-

aged in either standard 14-pin or 8-pin

DIP compatible all metal, resistance

welded packages for commercial or in-

dustrial temperature range applications.

True SMD DIL14 versions for IR reflow

are available, select option "S" in part

number builder. See separate data sheet

for SMD package dimensions.

Applications & Features

•

Phase-locked loops encountered in

Telecom, LAN and Wireless data, and

in video processing applications

•

LVCMOS, LVTTL compatible

Tri-state option available

Output Waveform

CMOS

1 Level

80%V

50%V

20%V

0 Level

GND

SYMMETRY

Supply Current:

32 to 70 MHz:

70+ to 125 MHz:

Output Drive:

Symmetry:

50mA max, 35mA max @ 3.3V

65mA max, 35mA max @ 3.3V

Rise & Fall Times:

Logic 0:

Logic 1:

Load:

Jitter:

Pull Characteristics:

Input Impedance:

Frequency Response (-3dB):

Pullability:

Control Voltage:

Transfer Function:

Linearity:

Center Control Voltage:

Phase noise:

3.3V: 45/55% max @ 50% V

for 0 to 70°C,

3.3V: 40/60% max @ 50% V

for -40 to +85°C

5.0V: 45/55% max @ 50% V

DD or

40/60% max @ 1.4V TTL level

4ns max: 20% to 80% V

1.5ns max: 0.5V to 2.5V @ 5V TTL only

0.5V max @ 5V or 20% V

max @ 3.3V

2.5V min @ 5V or 80% V

min @ 3.3V

5V: 5TTL or 50pF, 32 to 50 MHz

5V: 5TTL or 30pF 50+ to 125 MHz

3.3V: 30pF up to 80 MHz, 95Ω AC up to 125 MHz

20ps max RMS period jitter

50KΩ min

50 kHz min

±25, ±50, ±75, ±100 ppm APR*

0.5 to 4.5 V @ 5V or 0.3 to 3.0V @ 3.3V

Frequency increases when Control Voltage increases

5% or 10% max

2.5V @ 5V, 1.65V @ 3.3V

-95 dbc typ / Hz @ 100Hz

-110 dbc typ / Hz @ 1kHz

-100 dbc typ / Hz @ 10kHz

Mechanical:

Shock:

Solderability:

Terminal Strength:

Vibration:

Solvent Resistance:

Resistance to Soldering Heat:

MIL-STD-883, Method 2002, Condition B

MIL-STD-883, Method 2003

MIL-STD-202, Method 211, Conditions B2

MIL-STD-883, Method 2007, Condition A

MIL-STD-202, Method 215

MIL-STD-202, Method 210, Condition A, B or C

( I or J for Gull Wing )

Environmental:

Gross Leak Test:

Fine Leak Test:

Thermal Shock:

Moisture Resistance:

MIL-STD-883,

Method

1014, Condition C

1014, Condition A2

1011, Condition A

1004

APR = (VCXO Pull relative to specified Output Frequency)

–

(VCXO Frequency Stability)

NOTE: APR is inclusive of Aging

DS-162

REV E

SaRonix

141 Jefferson Drive • Menlo Park, CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
