BRS-02-RAHPD-58-A datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BRS-02-RAHPD-58-A

Preview

BRS-02-RAHPD-58-A: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size127KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BRS-02-RAHPD-58-A Overview

Board Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

BRS-02-RAHPD-58-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.157 inch
subject depth	0.177 inch
body length	2.283 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	BRS
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	58

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Insulator material:

Insulator resistance:

Withstanding:

Operating temperature:

Processing temperature:

3 amps

Phosphor bronze

20 milliohm max.

High temperature thermoplastic, UL94V-0

5,000 megohms min.

500VAC for 1 min.

-40°C to +105°C

230°C for 30 seconds max.

C

D

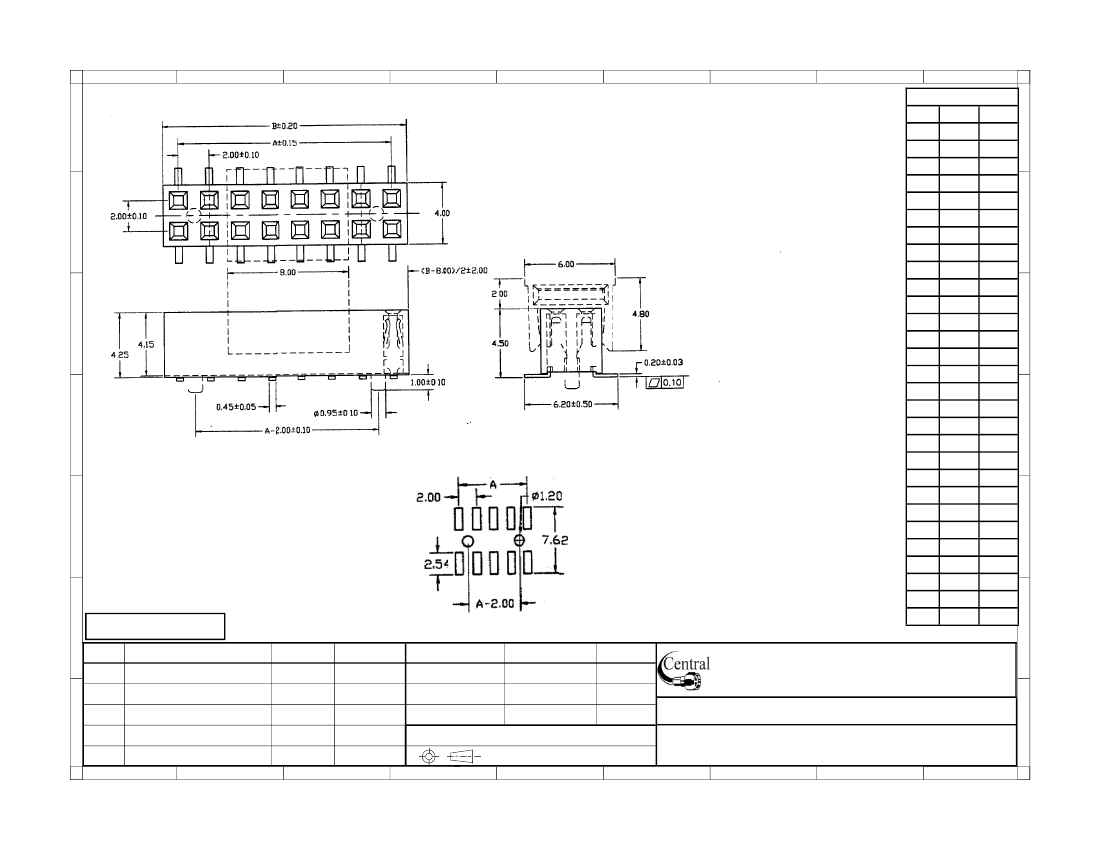

Recommended PC Board Layout

(PCB tolerance: ±0.05)

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Dimensions

Pos.

A

B

4

2.00 4.00

6

4.00 6.00

8

6.00 8.00

10

8.00 10.00

12 10.00 12.00

14 12.00 14.00

16 14.00 16.00

18 16.00 18.00

20 18.00 20.00

22 20.00 22.00

24 22.00 24.00

26 24.00 26.00

28 26.00 28.00

30 28.00 30.00

32 30.00 32.00

34 32.00 34.00

36 34.00 36.00

38 36.00 38.00

40 38.00 40.00

42 40.00 42.00

44 42.00 44.00

46 44.00 46.00

48 46.00 48.00

50 48.00 50.00

52 50.00 52.00

54 52.00 54.00

56 54.00 56.00

58 56.00 58.00

60 58.00 60.00

A

B

C

D

E

F

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

BRS-02-RAHPD-XX-A

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Receptacle strip, 2mm pitch, board mount socket
