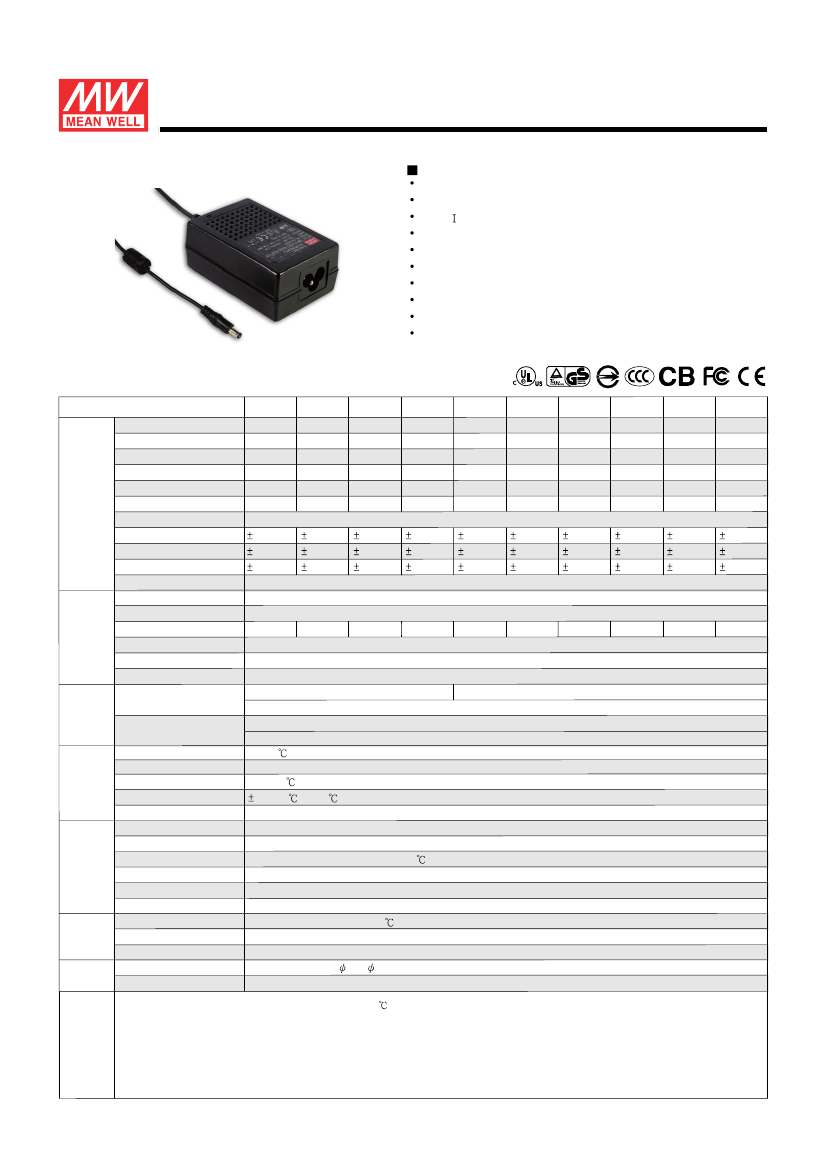

9~18W AC-DC Single Output Desktop
Features :
Universal AC input / Full range
3 pole AC inlet IEC320-C6
Class power ( with earth pin)
Full output 3~48V safety approval
ES18C
series
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
RCC control circuit and regulated
LED indicator for power on
Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE
1 year warranty
SPECIFICATION
ORDER NO.
SAFETY MODEL NO.
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER (max.)
OUTPUT
ES18C03
Note.2
3.3V
TUV
Rheinland
Product Safety
geprUfre
Sicherheit
ES18C03-P1J ES18C05-P1J ES18C07-P1J ES18C09-P1J ES18C12-P1J ES18C15-P1J ES18C18-P1J ES18C24-P1J ES18C28-P1J ES18C48-P1J
ES18C05
5V
3.0A
15W
50mVp-p
5.0%
1.0%
5.0%
ES18C07
7.5V
2.0A
0.3 ~ 2.0A
15W
80mVp-p
5.0%
1.0%
5.0%
ES18C09
9V
2.0A
0.2 ~2.0A
18W
80mVp-p
5.0%
1.0%
5.0%
ES18C12
12V
1.50A
18W
80mVp-p
3.0%
1.0%
3.0%
ES18C15
15V
1.20A
18W
100mVp-p
3.0%
1.0%
3.0%
ES18C18
18V
1.0A
18W
150mVp-p
3.0%
1.0%
3.0%
ES18C24
24V
0.75A
18W
180mVp-p
2.0%
1.0%
2.0%
ES18C28
28V
0.64A
18W
240mVp-p
2.0%
1.0%
2.0%
ES18C48
48V
0.375A
18W
240mVp-p
2.0%
1.0%
2.0%
2.72A
9W
0.3 ~ 2.72A 0.3 ~ 3.0A
0.15 ~ 1.50A 0.1 ~ 1.20A 0.1 ~ 1.0A
0.1 ~ 0.75A 0.06 ~ 0.64A 0.05 ~ 0.375A
RIPPLE & NOISE (max.)
Note.3
50mVp-p
Fixed
VOLTAGE ADJ. RANGE
VOLTAGE TOLERANCE
Note.4
5.0%
LINE REGULATION
LOAD REGULATION
Note.5
Note.6
1.0%
5.0%
SETUP, RISE, HOLD UP TIME
200ms, 50ms, 16ms at full load
90 ~ 264VAC 135 ~ 370VDC
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT (max.)
LEAKAGE CURRENT(max.)
OVERLOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
47 ~ 63Hz
55%
70%
72%
72%
74%
77%
78%
80%
81%
82%
0.5A / 100VAC
40A / 230VAC
0.75mA / 240VAC
130 ~ 350% rated output power
110 ~ 200% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
105 ~ 135% rated output voltage
Protection type : Clamp by zener diode, output short
0 ~ +50 (Refer to output load derating curve)
20% ~ 90% RH non-condensing
-20 ~ +85 , 10 ~ 95% RH
0.03% / (0 ~ 50 )
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943 Approved
I/P-O/P:3KVAC , I/P-FG:1.5KVAC
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25 / 70% RH
SAFETY &
ISOLATION RESISTANCE
EMC
EMI CONDUCTION & RADIATION
Compliance to EN55022 class B, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254 class B
(Note. 7)
HARMONIC CURRENT
Compliance to EN61000-3-2,3, GB17625.1
EMS IMMUNITY
MTBF
DIMENSION
PACKING
PLUG
CABLE
Compliance to EN61000-4-2,3,4,5,6,8,11, Light industry level, criteria A
500Khrs min. MIL-HDBK-217F(25 )

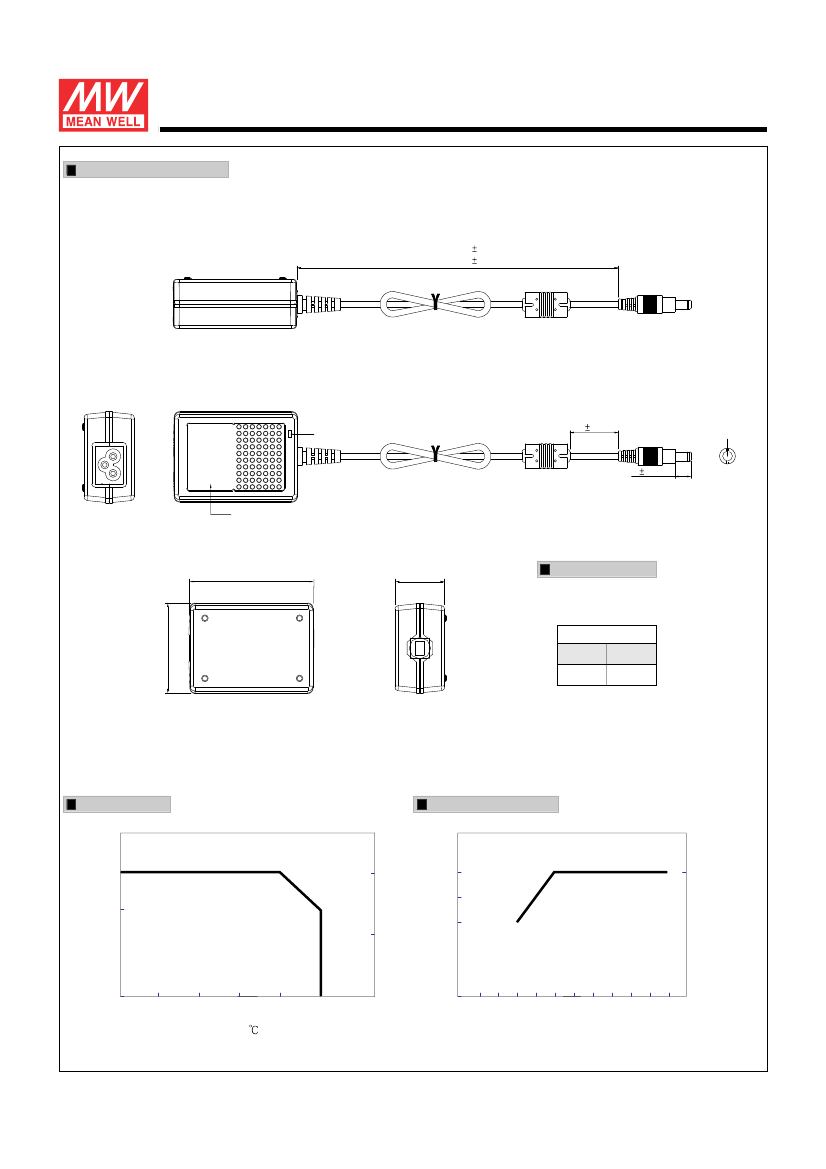

79*54*33mm (L*W*H)
220g ; 60pcs / 13.5kg / CARTON
Standard type P1J: 2.1 * 5.5 * 11mm, tuning fork type, center positive for stock ; Other type available by customer requested
Standard type UL1185 6ft (with ferrite core) for stock ; Other type available by customer requested
OTHERS
CONNECTOR
NOTE
1.All parameters are specified at 230VAC input, rated load, 25 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 20% to 100% rated load
7.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
File Name:ES18C-SPEC 2007-03-01
