SHEET 1 OF 1
3.18
[.125 in]
15.75
[.620 in]
1.85
[.073 in]
1
4.70
[.185 in]
2
3
11.43
[.450 in]
8.13
[.320 in]

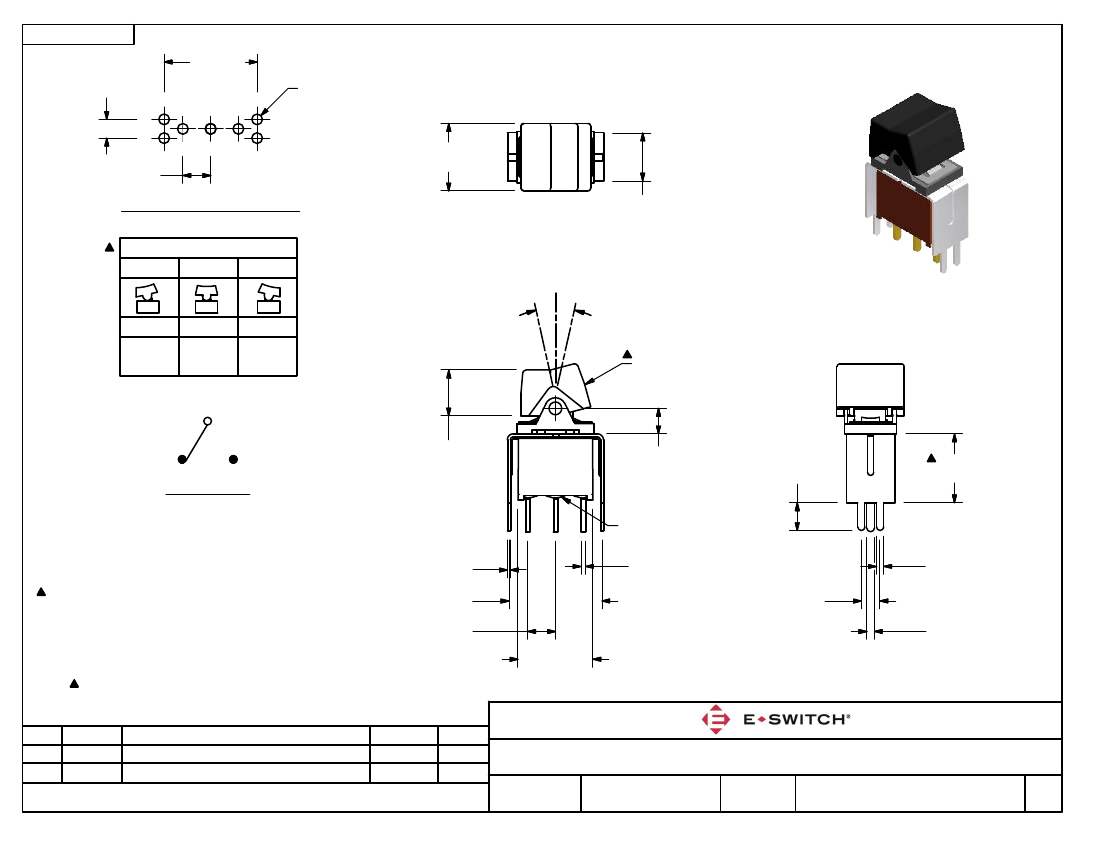

RECOMMENDED P.C. MOUNTING
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
POS. 2
POS. 1
POS. 3
ON
2-3
NONE
N/A
ON
2-1
25
ACTUATOR COLOR:
BLACK
2
7.77
[.306 in]
1
3
4.32
[.170 in]
4.70
[.185 in]
11.68
[.460 in]
CIRCUIT: SPDT
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X= 0.4
X.XX= 0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: SILVER
5. RATING: 5A @120VAC or 28VDC
2A @250VAC
6. ELECTRIC LIFE: 30,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30 C to 85 C
10.
DENOTES CRITICAL PARAMETER.
11. 2011/65/EU (ROHS) COMPLIANT
B
A
REV
22681
12834
PCR NO
UPDATED LAYOUT AND TERMINALS
RELEASED
DESCRIPTION
EPOXY SEAL
1
.51
[.020 in]
15.75
[.620 in]
4.70
[.185 in]
12.70
[.500 in]
2
3
.76
[.030 in]
3.18
[.125 in]
1.27
[.050 in]
3
1.22
[.048 in]
1/25/17
2/25/03
DATE
MJR
CJB
BY
SCALE
DATE
DR
DWG
REV
TITLE
300AWSP1J5BLKVS2QE
3:2
2/25/2003
CJB
T301050
B
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
