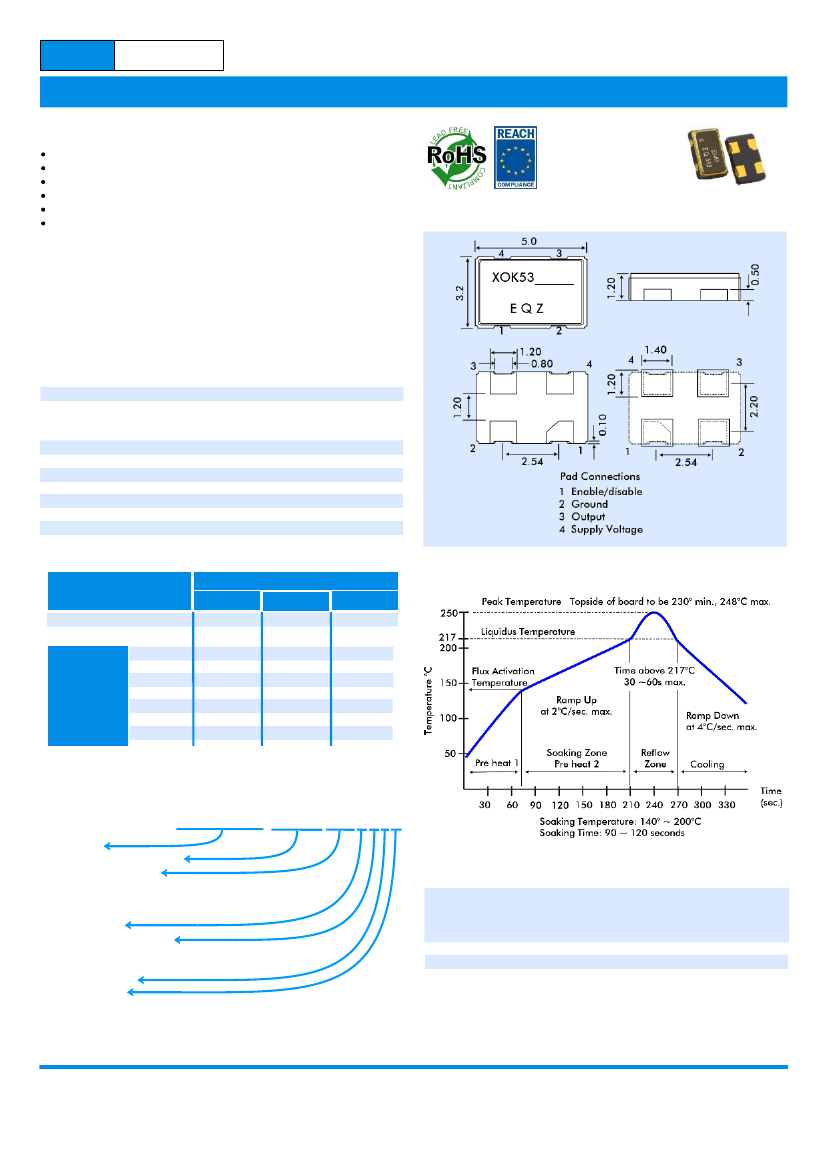

EURO
QUARTZ
5 x 3.2mm SMD Low Power Oscillator
FEATURES
Micro-miniature 5.0 x 3.2mm package
Frequency Range 370kHz to 50MHz
Low supply current <1.7mA at 1.8V supply
Supply voltage range, 1.8, 2.5V or 3.3 Volts
Tristate function to conserve power
Stable and clean CMOS output
DESCRIPTION
XOK53 oscillators are designed for battery operated portable and/or
hand-held consumer electronic devices where small size and low
supply current consumption is essential. A XOK53 at 27MHz and 1.8
Volts supply consumes less than 1.7mA in operating mode and less
than 2 µA in disabled mode. XOK53 phase noise is -130dBc/Hz at
10kHz offset. The oscillator is available with supply voltage 1.8, 2.5 or
3.3 Volts.
SPECIFICATION
Frequency Range:
Frequency Stability
Commercial:
Industrial:
Output Logic:
Rise/Fall Time:
Current Consumption:
Symmetry:
Start-up Time:
Load:
Voltage Sensitivity:
Period Jitter (RMS)
1370.0kHz to 50.0MHz
±25ppm to ±100ppm -10° to +70°C
±25ppm to ±100ppm -40° to +85°C
HCMOS
4ns typical (10% to 90%Vdd)
12mA typical (+3.0V)
45% minimum, 55% maximum
10ms typical (Vdd reaches 1.62V)
15pF
±0.8ppm typical (10%Vdd variation)
2.1ps typical with capacitive
decoupling between Vdd and Gnd.
XOK53 Series Oscillators
370kHz to 50.0MHz
OUTLINE & DIMENSIONS
SOLDER TEMPERATURE PROFILE
Supply Voltage
Dependant Parameters
Output Voltage HIGH ‘1’:
Output Voltage LOW ‘0’:
16.000MHz
20.945MHz
Current
25.000MHz
Consumption
27.000MHz
mA typical
30.000MHz
38.000MHz
50.000MHz
Supply Voltage (±10%)
+1.8V
+2.5V
+3.3V
+1.40Vmin. +2.0Vmin. +2.4Vmin.
+0.2Vmax. +0.3Vmax. +0.4Vmax.
1.05mA
1.34mA
1.54mA
1.69mA
1.93mA
2.27mA
2.60mA
1.51mA
1.86mA
2.17mA
2.35mA
2.74mA
3.26mA
3.90mA
2.12mA
2.58mA
3.00mA
3.25mA
3.77mA
4.48mA
4.95mA
Tristate (Pad 1 grounded): 2µA typical 4uA max. (oscillator is off)
PART NUMBERING
Example:
27.000MHz XOK53050UCTC
NOTES
Pad 1 Options:
Pad 1 connected to ground, output disabled
No connection/Logic HIGH, output enabled
Disable time 10ms typical
Enable time 10ms typical
±5ppm per year max.
2000V max., human body model
12mm tape, 8mm pitch. 1000 pieces/reel
Frequency
Series Designation XOK53
Temperature Stability
100 = ±100ppm
050 = ±50ppm
025 = ±25ppm
Output CMOS
Operating Temp. Range
C = Commercial (-10°~70°C)
I = Industrial (-40°~+85°C)
Tristate Function
Supply Voltage
A = 3.3 Volts
B = 2.5 Volts
C = 1.8 Volts
Ageing:
ESD Protection:
Packaging:
PHASE NOISE
Offset
dBc/Hz
100Hz
-80
1kHz
-110
10kHz
-130
100kHz
-138
1MHz
-145
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
