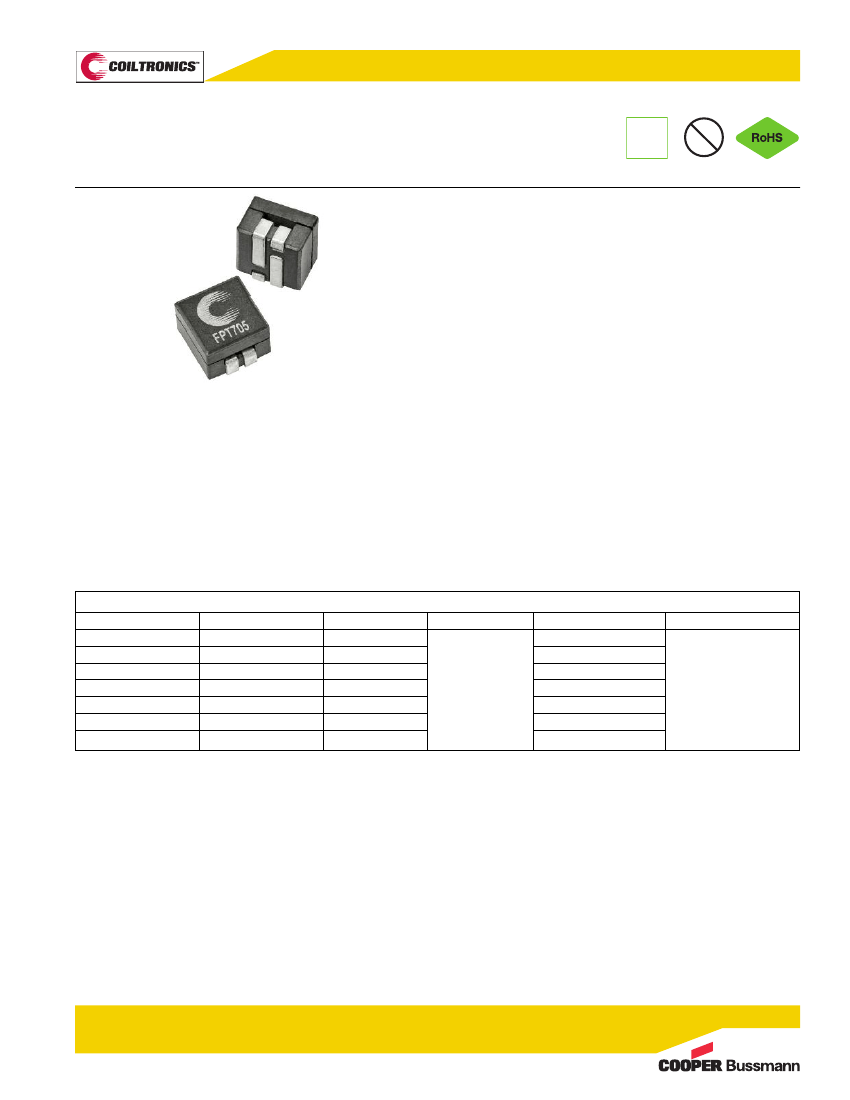

Dual Conductor, High Current Power Inductors

Flat-Pac™ FPT705 Series

Applications

FREE

HALOGEN

• Designed specifically for use with Picor

Cool-Power

ZVS-Buck Regulator Family (Picor part number Series

PI33xx and PI34xx)

Environmental Data

• Storage temperature range: -40°C to +125°C

• Operating temperature range: -40°C to +125°C

(ambient + self-temperature rise)

• Solder reflow temperature: J-STD-020D compliant

Description

• Halogen free, lead free, RoHS compliant

• 125°C maximum total operating temperature

• 8.0 x 7.1 x 5.35mm maximum surface mount package

• Ferrite core material

• Dual conductor, two-turn construction

• Inductance range from 150nH to 300nH

Packaging

• Supplied in tape-and reel packaging, 1400 parts per

13” diameter reel

Product Specifications

Part Number

FPT705-150-R

FPT705-170-R

FPT705-190-R

FPT705-200-R

FPT705-230-R

FPT705-270-R

FPT705-300-R

OCL

±10% (nH)

150

170

190

200

230

270

300

FLL

min. (nH)

135

153

171

180

207

243

270

rms

(Amps)

sat

@ 25°C (Amps)

DCR

(mΩ) @ 20°C

0.65 ± 0.15

1. Open Circuit Inductance (OCL) test parameters: 100kHz, 0.1V

rms

0.0Adc @ 25°C (Pins 1-3, short 2-4).

2. Full Load Inductance (FLL) test parameters: 100kHz, 0.1V

rms

sat

1 @ 25°C (Pins 1-3, short 2-4).

3. I

rms

: DC current for an approximate temperature rise of 40°C without core loss.

Derating is necessary for AC currents. PCB layout, trace thickness and width,

air-flow, and proximity of other heat-generating components will affect the

temperature rise. It is recommended that the temperature of the part not exceed

125°C under worst case operating conditions verified in the end application.

4. I

sat

1: Peak current for approximately 2% rolloff at +25℃.

5. DCR Tested from Pins (1-2) and (3-4) @ 20°C.

6. Part Number Definition: FPT705-xxx-R

FPT705 = Product code and size

xxx= Inductance value in nH

“-R” Suffix = RoHS compliant

0812

BU-SB12618

Page 1 of 6

Data Sheet: 4451
