D01-9802001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D01-9802001

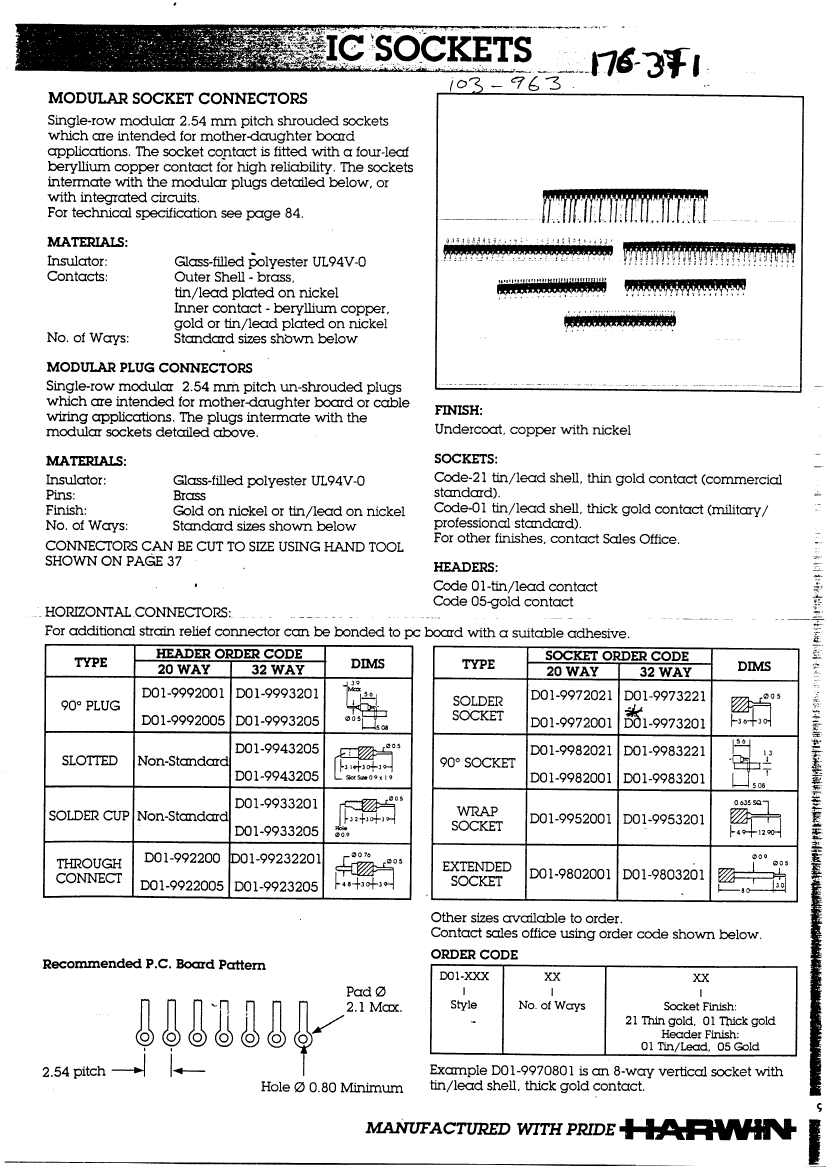

D01-9802001: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

D01-9802001 Overview

Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket

D01-9802001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
subject depth	0.315 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	300 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	1000000000000 Ω
MIL compliance	NO
Manufacturer's serial number	D01
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Evacuation force-minimum value	.278 N

Preview

Download Datasheet

View All

D01-9802001 Related Products

	D01-9802001	D01-9993205	D01-9983201	D01-9983221	D01-9992001	D01-9993201
Description	Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket	Board Connector, 32 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 32 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 32 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 32 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	GOLD	GOLD	GOLD (6)	SN	TIN
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D01	D01	D01-998	D01-998	D01-9	D01-9
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	20	32	32	32	20	32
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible
Maker	-	Harwin	Harwin	Harwin	Harwin	Harwin
Contact completed and terminated	-	GOLD	TIN	TIN	TIN OVER NICKEL	TIN
JESD-609 code	-	e4	e3	e3	-	e3
