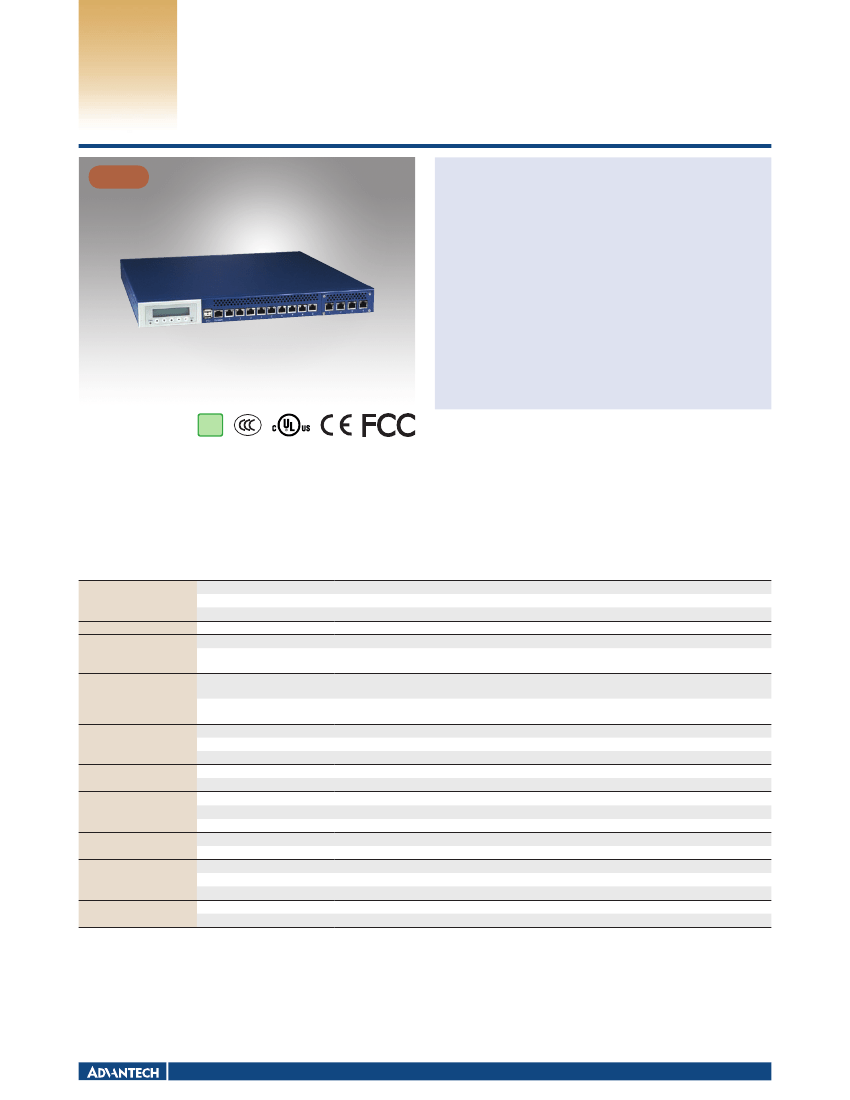

FWA-4208

NEW

1U Rack-mount Network Application Platform

based on Intel

Xeon

X3400 Processor or

Intel

Core™ i5/i3 Processor

Features



Supports Intel

Xeon

X3400 Processor or Intel

Core™ i5/i3 Processor



Supports 4 x DDR3 ECC/REG 1066/1333 DIMMs, up to 32 GB or 4 x

DDR3 ECC Un-buffered 1066/1333 DIMMs, up to 16 GB



9 x 10/100/1000 Mbps LAN ports



Supports 1 x 3.5" SATA HDD



Supports 2 x PCIe Full-height/Half-length add-on cards



Supports 1 x Express LAN module (Option)

RoHS

COMPLIANT

2002/95/EC

Introduction

The FWA-4208 is an optimized industry standard 1U platform that supports new generation Intel

Xeon

X3400 processor and DDR3-1333 MHz memory up to 32 GB capacity. The

FWA-4208 provides unprecedented performance, connectivity and throughput without compromising on system thermal design. By leveraging PCIe Gen.2 technology, the platform

maximizes the I/O throughput by taking full advantage of the Intel

Xeon

X3400 processor capability. Multiple Gigabit Ethernet controllers to provide bi-directional 2 Gb/s peak

bandwidth at wire speed for each port and the PCIe interface connect to Intel

3420 PCH directly. The system supports up to 9 x Gigabit Ethernet ports, 1 x PCIe x 4 NIC module, up

to 2 x PCIe Gen.2 x 8 expansion slots, and 1 x 3.5 inch internal SATA HDD. It is FCC, CE, UL, CCC, and RoHS compliant.

Specifications

Processor

Chipset

Memory

CPU

Max. Speed

L2 Cache

PCH

Technology

Capacity

Expansion Slot

Riser Card

Gigabit Port

LAN Bypass

Express Module

SATA

Compact Flash

USB

Serial

LCD Module

Watt

Input

Temperature

Humidity

Dimension (W x H x D)

Weight

Intel

Xeon

X3400 processor/ Intel

Core™ i5/i3 processor

2.93 GHz/3.06 GHz

4MB/8MB

Intel

3420 PCH

DDR3 1333/1066 MHz ECC/REG or ECC Un-buffered memory

Supports up to 32 GB DDR3 ECC Registered memory (RDIMM)

Supports up to 16 GB DDR3 ECC Un-buffered memory (UDIMM)

2 x PCIe Gen2 x 4 internal Gold fingers for NIC module

1 x PCIe Gen2 x 8 Expansion slot

2 x PCIe Gen2 x 8 slots by 2 x PCIe Gen2 x 4 Lanes

Supports full-height/half-length cards and external access

9 x Intel 82574L 10/100/1000 Mbps Ethernet

Up to 4 segments on Gigabit Ethernet ports

Supports 1 x 4 ports GbE module by RJ45/SFP interface

1 x 3.5" SATA Hard Disk Drive internal

1 x CF Socket

2 x USB2.0 connectors

1 x Console port by RJ-45 connector

250W

AC 100 ~ 240 V @ 50 ~ 60 Hz, full range

Operating

Non-Operating

0 ~ 40° C (32 ~ 104° F)

-20 ~ 75° C (-4 ~ 167° F)

5 ~ 85% @ 40° C (104° F)

5 ~ 95%

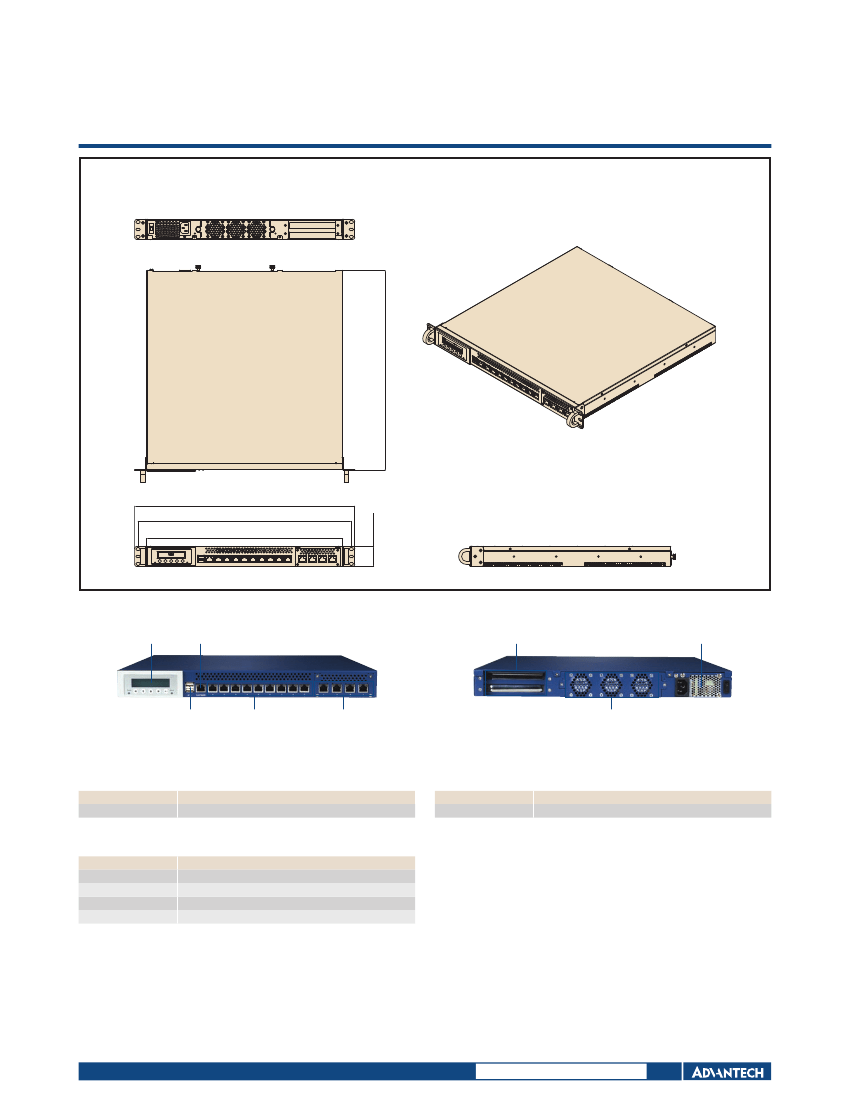

440 x 44 x 482mm(17" x 1.7" x 19")

10Kg (lb)

PCI-Express

Ethernet

Storage

Peripheral

Power

Environment

Physical
