HLMP-1321: DescriptionT-1 SINGLE COLOR LED, HIGH EFFICIENCY RED, 3 mm; CategoryLED optoelectronic/LED photoelectric; File Size183KB，9 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HLMP-1321 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HLMP-1321	-	-	View	Buy Now

HLMP-1321 Overview

T-1 SINGLE COLOR LED, HIGH EFFICIENCY RED, 3 mm

HLMP-1321 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVAGO
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	16 weeks
color	HIGH EFFICIENCY RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	3 V
JESD-609 code	e3
Lens type	TINTED NONDIFFUSED
Nominal luminous intensity	30.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.445 mm
method of packing	BULK
peak wavelength	635 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Matte Tin (Sn)
Terminal pitch	2.54 mm
perspective	45 deg

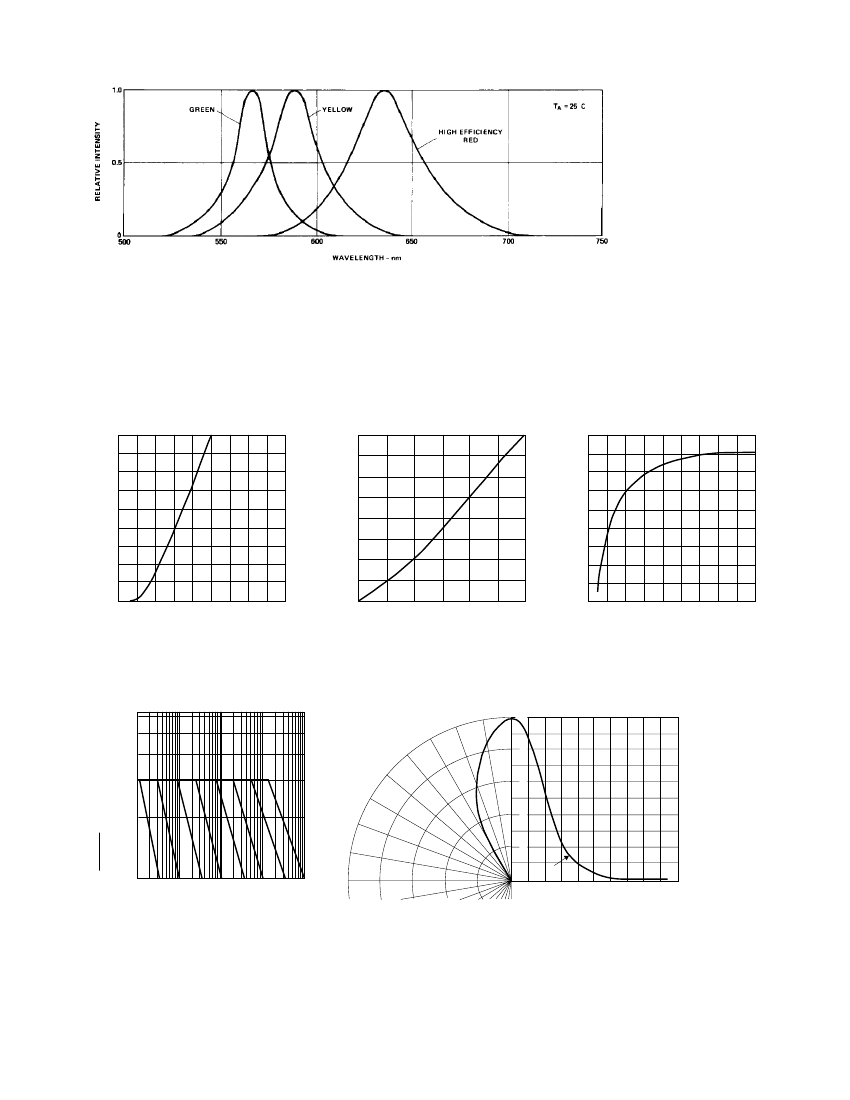

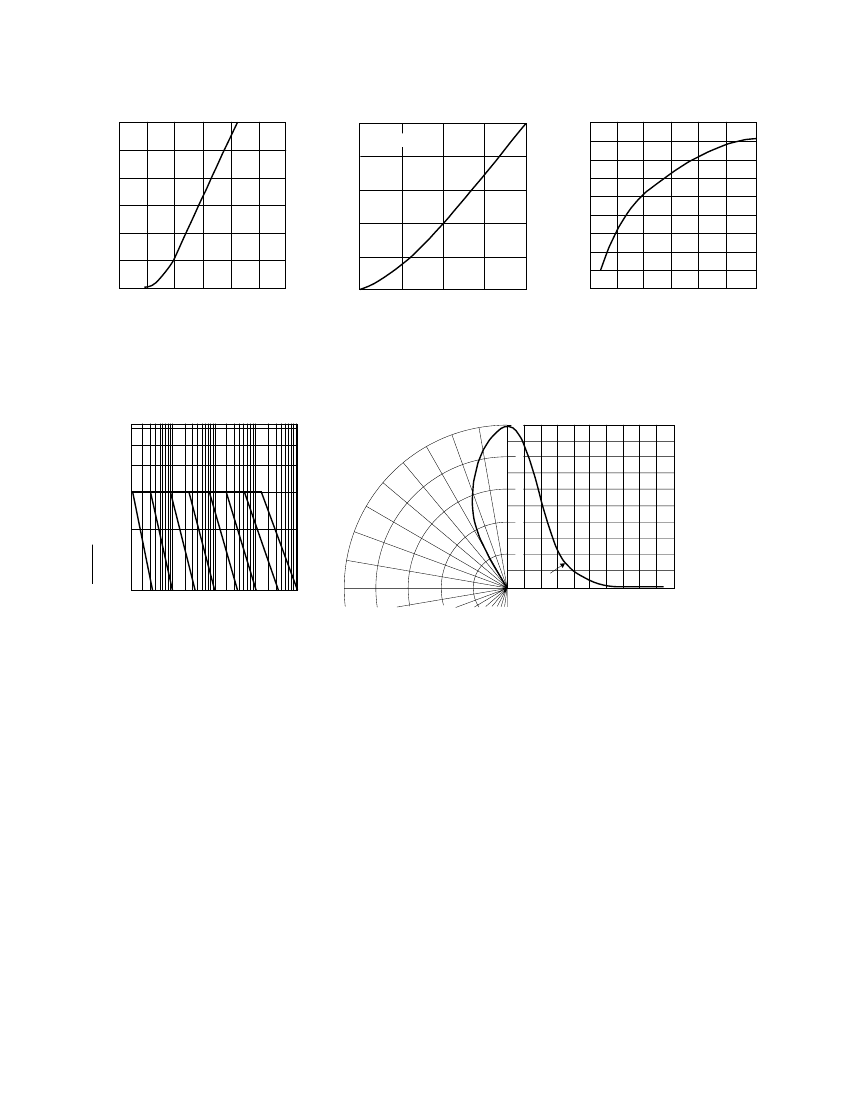

Preview

Download Datasheet

View All

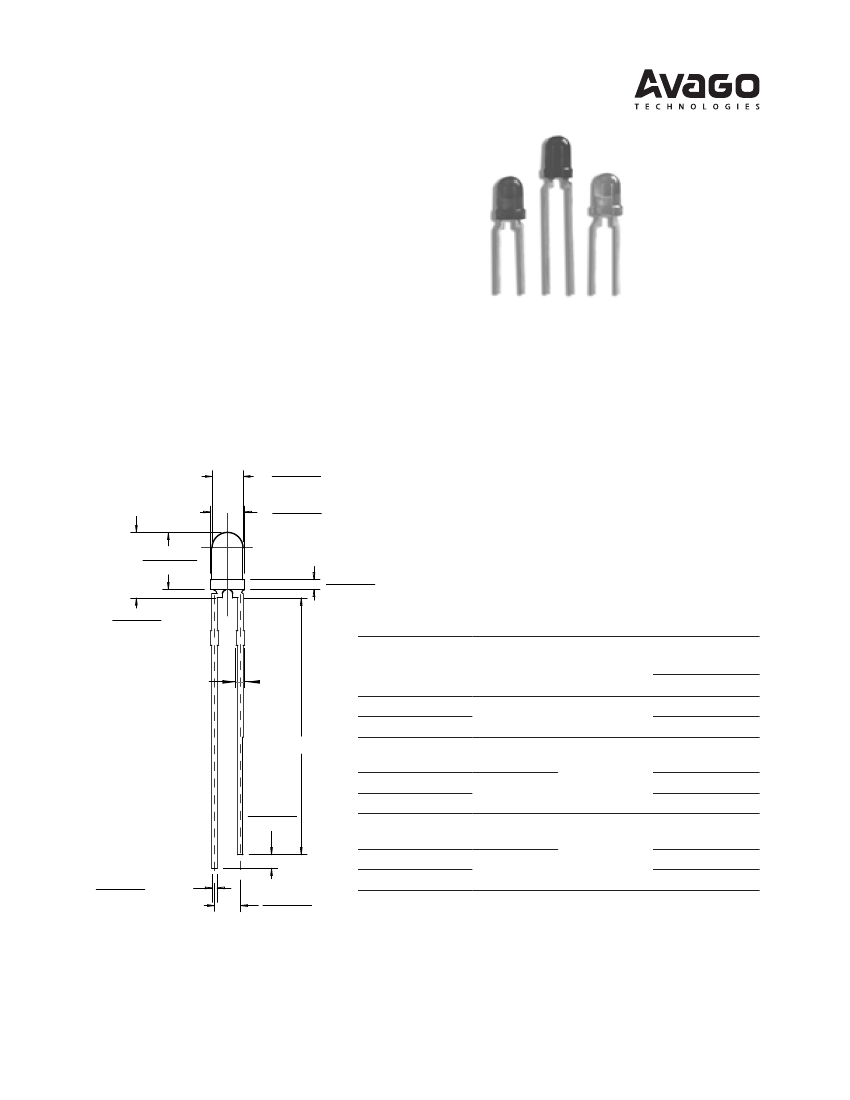

HLMP-132x Series, HLMP-142x Series,

HLMP-152x Series

T-1 (3 mm) High Intensity LED Lamps

Data Sheet

Description

This family of T-1 lamps is specially designed for applica-

tions requiring higher on-axis intensity than is achiev-

able with a standard lamp. The light generated is focused

to a narrow beam to achieve this effect.

Features

•

High intensity

•

Choice of 3 bright colors

High Efficiency Red

Yellow

High Performance Green

•

Popular T-1 diameter package

•

Selected minimum intensities

•

Narrow viewing angle

•

General purpose leads

•

Reliable and rugged

•

Available on tape and reel

•

For more information, please refer to Tape and Reel

Option data sheet

Package Dimensions

3.17 (.125)

2.67 (.105)

3.43 (.135)

2.92 (.115)

4.70 (.185)

4.19 (.165)

1.14 (.045)

0.51 (.020)

6.35 (.250)

5.58 (.220)

Selection Guide

Package

Description

Tinted,

Non-diffused

Microtinted,

Non-diffused

Tinted,

Non-diffused

Microtinted,

Non-diffused

Tinted,

Non-diffused

Luminous Intensity

Iv (mcd) @ 10 mA

Color

High Efficiency

Red

0.65 (0.026) max.

Part Number

HLMP-1321

HLMP-1321-G00xx

24.1(.95) min.

Min.

8.6

9.2

Max.

–

HLMP-1420

HLMP-1421

Yellow

9.2

6.7

1.52 (.060)

1.02 (.040)

HLMP-1421-F00xx

HLMP-1520

HLMP-1521

Green

6.7

(0.022) 0.55 SQ. TYP.

(0.016) 0.40

HLMP-1521-E00xx

2.79 (.110)

2.29 (.090)

Notes:

1. All dimensions are in millimeters (inches).

2. An epoxy meniscus may extend about 1 mm (0.40") down the leads.

3. For PCB hole recommendations, see the Precautions section.

HLMP-1321 Related Products

	HLMP-1321	HLMP-1321-G00	HLMP-1420	HLMP-1421	HLMP-1421-F00	HLMP-1520	HLMP-1521	HLMP-1521-E00
Description	T-1 SINGLE COLOR LED, HIGH EFFICIENCY RED, 3 mm	T-1 SINGLE COLOR LED, HIGH EFFICIENCY RED, 3 mm	T-1 (3 mm) High Intensity LED Lamps	T-1 SINGLE COLOR LED, YELLOW, 3 mm	T-1 SINGLE COLOR LED, HIGH EFFICIENCY RED, 3 mm	T-1 SINGLE COLOR LED, HIGH EFFICIENCY RED, 3 mm	T-1 SINGLE COLOR LED, HIGH EFFICIENCY GREEN, 3 mm	T-1 SINGLE COLOR LED, HIGH EFFICIENCY RED, 3 mm
color	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	YELLOW	YELLOW	HIGH EFFICIENCY RED	HIGH PERFORMANCE GREEN	HIGH PERFORMANCE GREEN	HIGH EFFICIENCY RED
Lens type	TINTED NONDIFFUSED	TINTED NONDIFFUSED	MICROTINTED NONDIFFUSED	TINTED NONDIFFUSED	TINTED NONDIFFUSED	MICROTINTED NONDIFFUSED	TINTED NONDIFFUSED	TINTED NONDIFFUSED
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 Cel	100 °C	100 °C	100 Cel	100 °C	100 °C	100 Cel
Minimum operating temperature	-55 °C	-55 Cel	-55 °C	-55 °C	-55 Cel	-20 °C	-20 °C	-55 Cel
peak wavelength	635 nm	635	583 nm	583 nm	635	565 nm	565 nm	635
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Is it lead-free?	Lead free	-	Lead free	Lead free	-	Lead free	Lead free	-
Is it Rohs certified?	conform to	-	conform to	conform to	-	conform to	conform to	-
package instruction	PLASTIC PACKAGE-2	-	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	-	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	-
Reach Compliance Code	compli	-	compli	compli	-	compliant	compli	-
ECCN code	EAR99	-	EAR99	EAR99	-	EAR99	EAR99	-
color@wavelength	Red	-	Yellow	Yellow	-	Green	Gree	-
Configuration	SINGLE	-	SINGLE	SINGLE	-	SINGLE	SINGLE	-
Maximum forward current	0.03 A	-	0.02 A	0.02 A	-	0.03 A	0.03 A	-
Maximum forward voltage	3 V	-	3 V	3 V	-	3 V	3 V	-
JESD-609 code	e3	-	e3	e3	-	e3	e3	-
Nominal luminous intensity	30.0 mcd	-	15.0 mcd	15.0 mcd	-	22.0 mcd	22.0 mcd	-
Optoelectronic device types	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	-
total height	4.445 mm	-	4.445 mm	4.445 mm	-	4.445 mm	4.445 mm	-
method of packing	BULK	-	BULK	BULK	-	BULK	BULK	-
surface mount	NO	-	NO	NO	-	NO	NO	-
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	-
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	-
perspective	45 deg	-	45 deg	45 deg	-	45 deg	45 deg	-
