SN54LS686N datasheet, PDF - EEWORLD Datasheet

SN54LS686N: DescriptionLS SERIES, 8-BIT IDENTITY COMPARATOR, INVERTED OUTPUT, PDIP20; Categorysemiconductor logic; File Size290KB，7 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

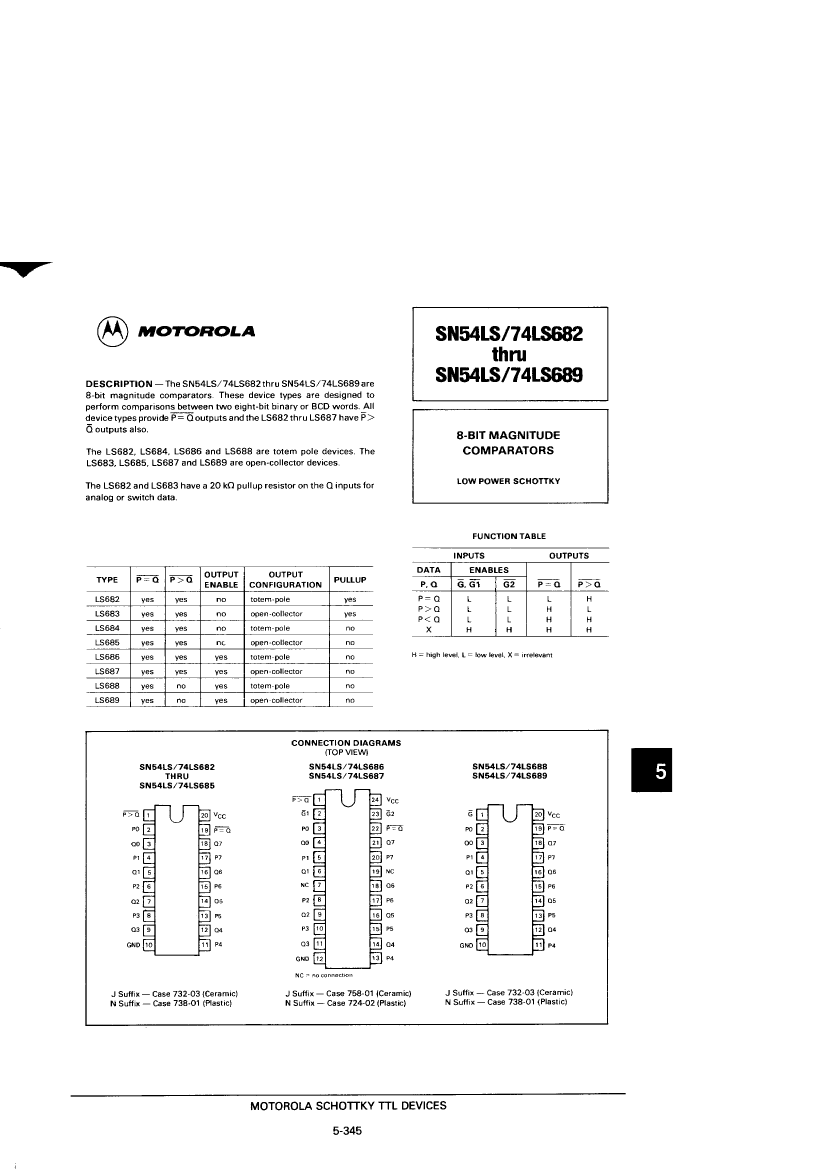

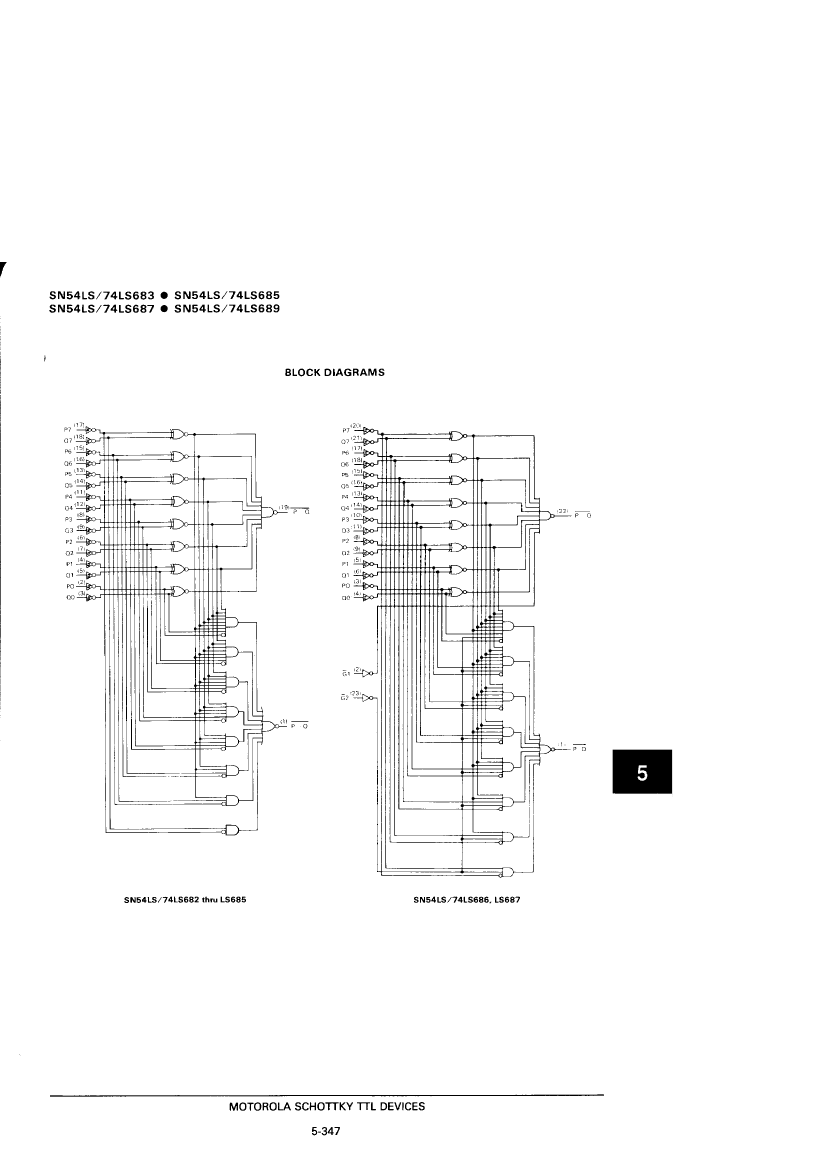

SN54LS686N Overview

LS SERIES, 8-BIT IDENTITY COMPARATOR, INVERTED OUTPUT, PDIP20

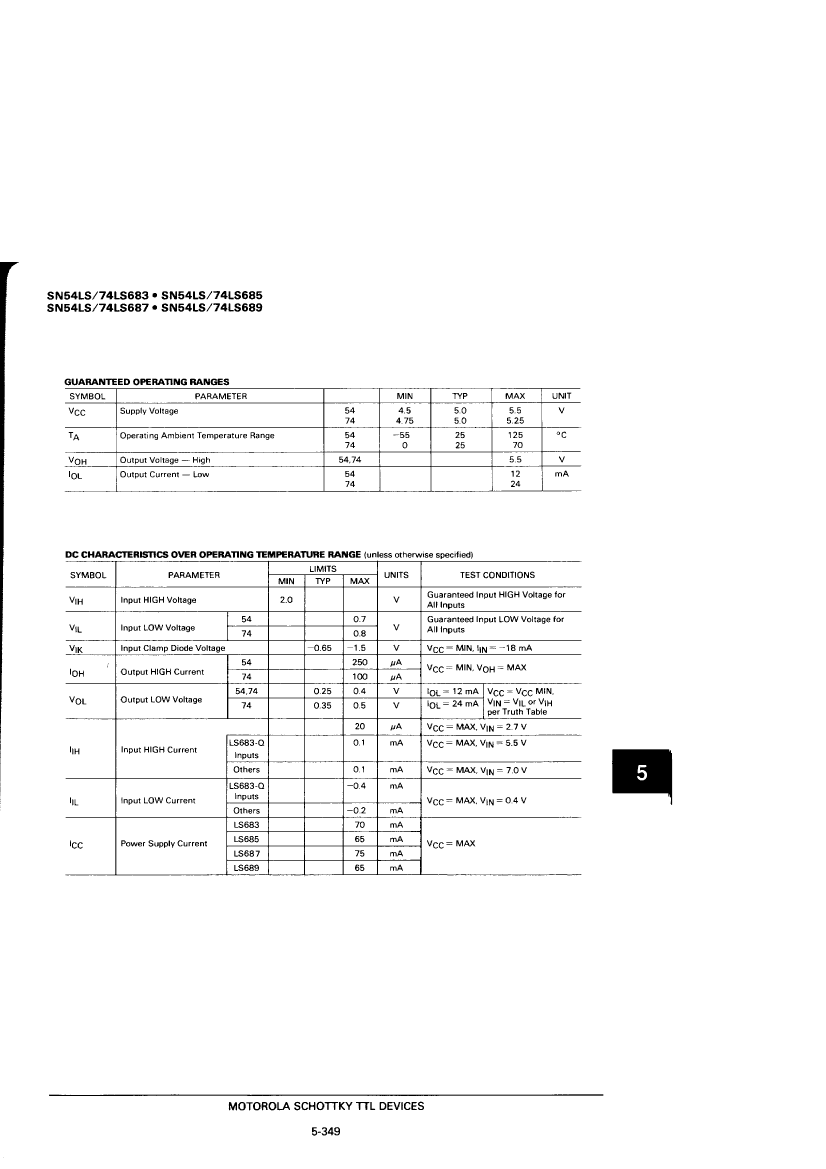

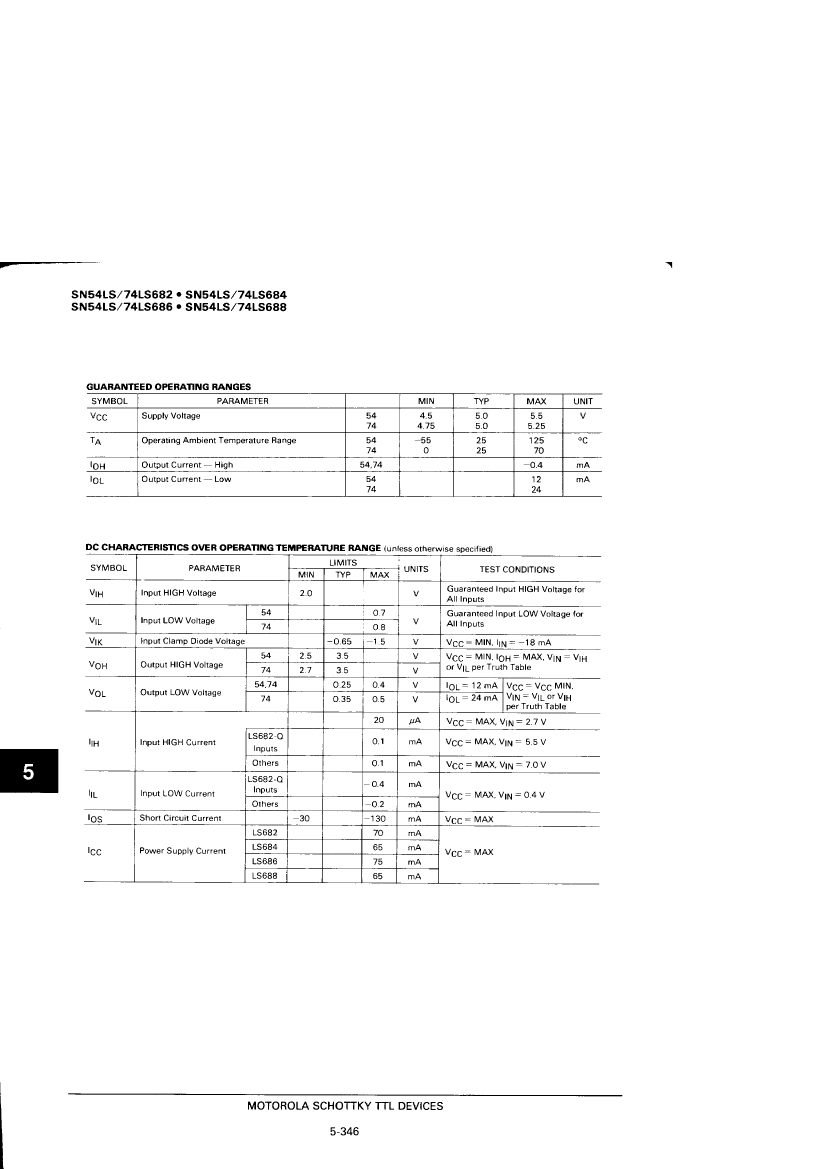

Parameter Name	Attribute value
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Maximum supply/operating voltage	5.25 V
Minimum supply/operating voltage	4.75 V
Rated supply voltage	5 V
Processing package description	PLASTIC, DIP-20
state	ACTIVE
Craftsmanship	TTL
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	COMMERCIAL
series	LS
Logic IC type	IDENTITY COMPARATOR
Number of digits	8
Output polarity	INVERTED
propagation delay TPD	23 ns
