510-97-324-18-000003 datasheet, PDF

510-97-324-18-000003: DescriptionIC Socket, PGA324, 324 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder; CategoryThe connector socket; File Size1001KB，8 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

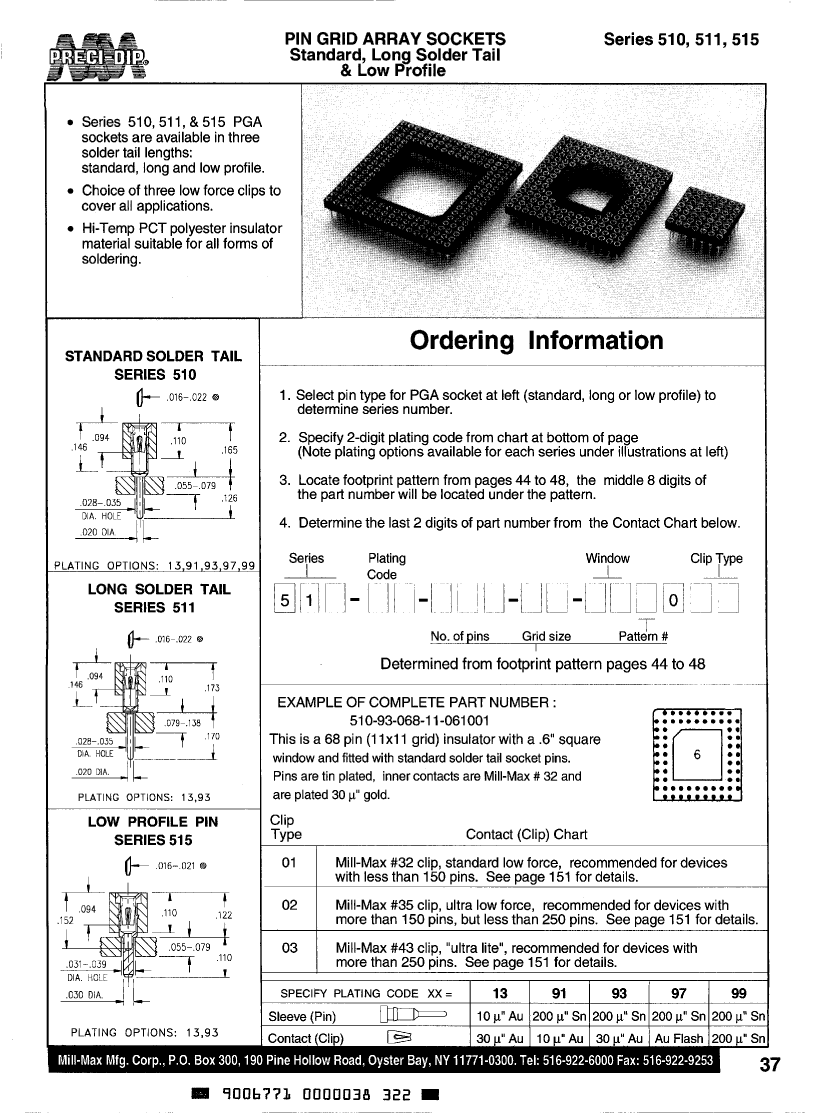

510-97-324-18-000003 Overview

IC Socket, PGA324, 324 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	1.8 inch
subject depth	0.165 inch
body length	1.8 inch
Contact structure	18X18

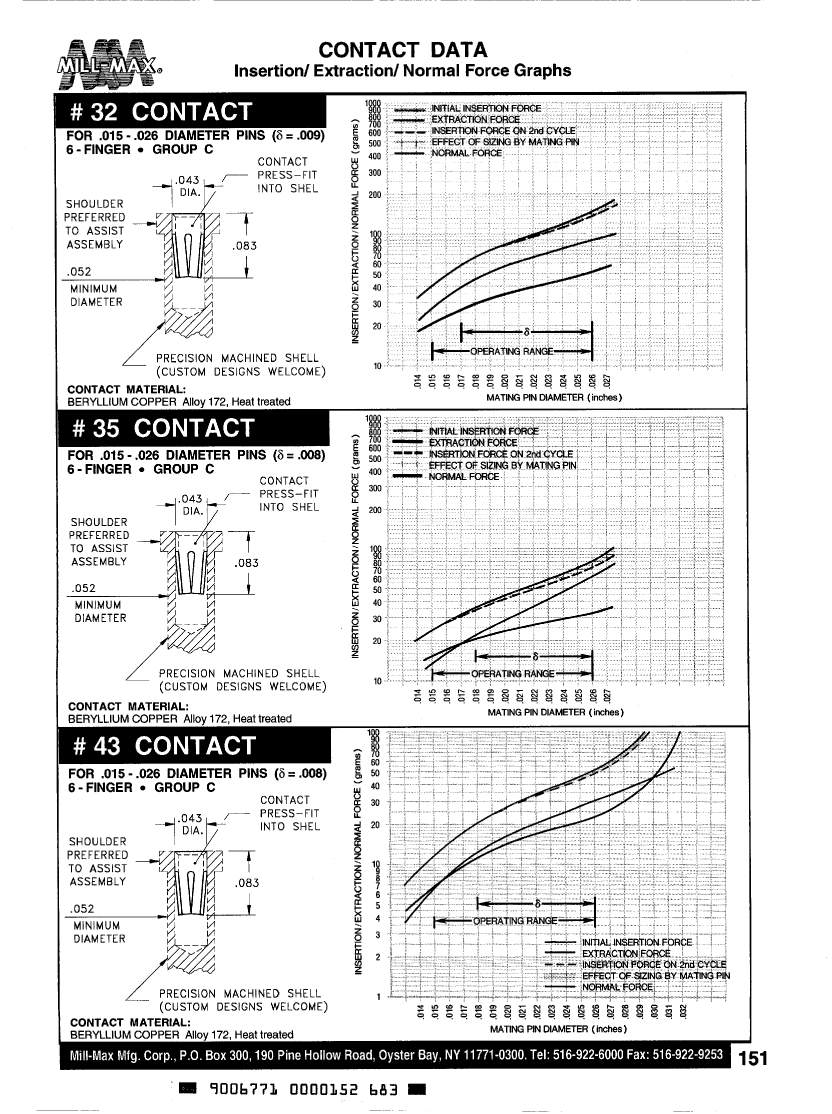

Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PGA324
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED THERMOPLASTIC
Insulation resistance	10000000000 Ω
Manufacturer's serial number	510
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	324
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

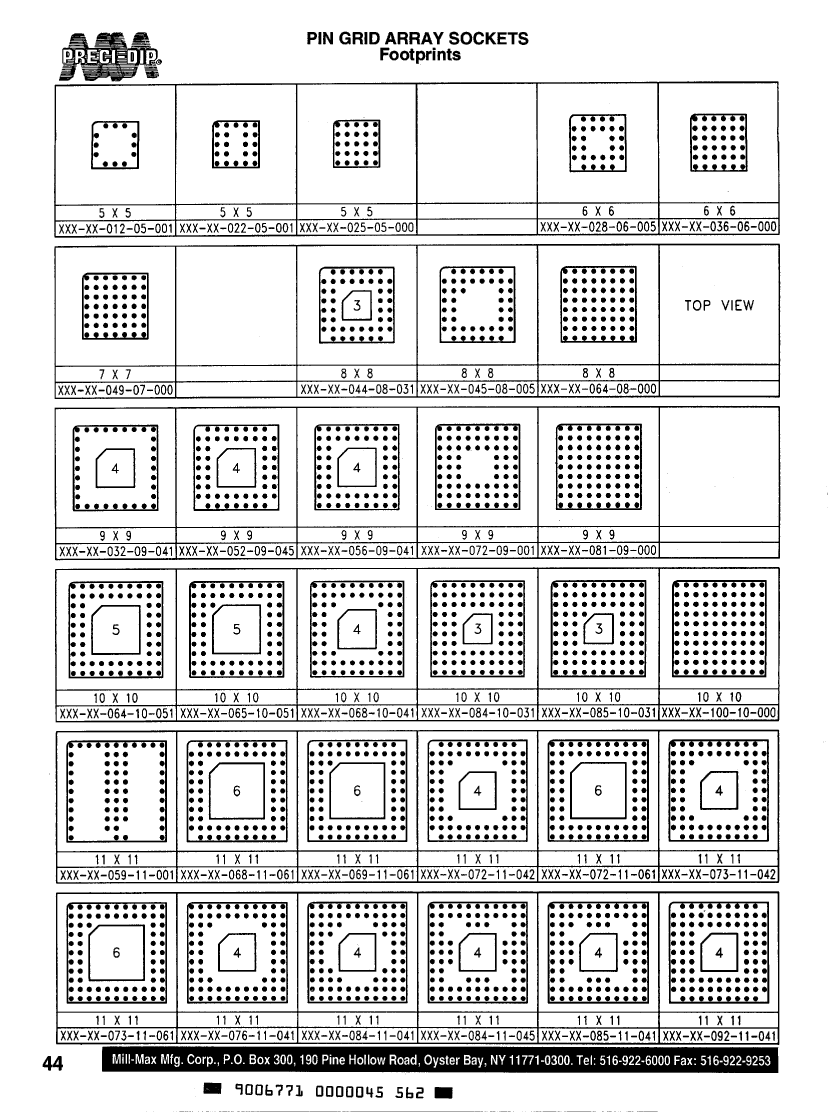

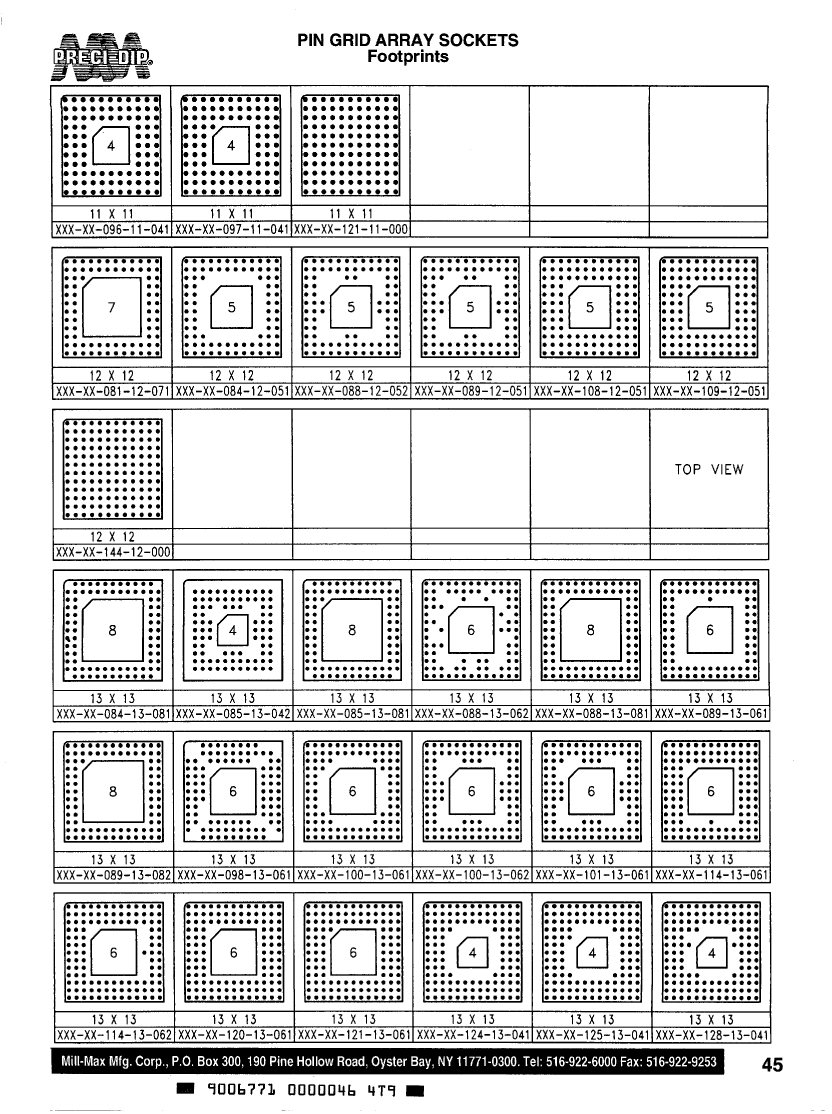

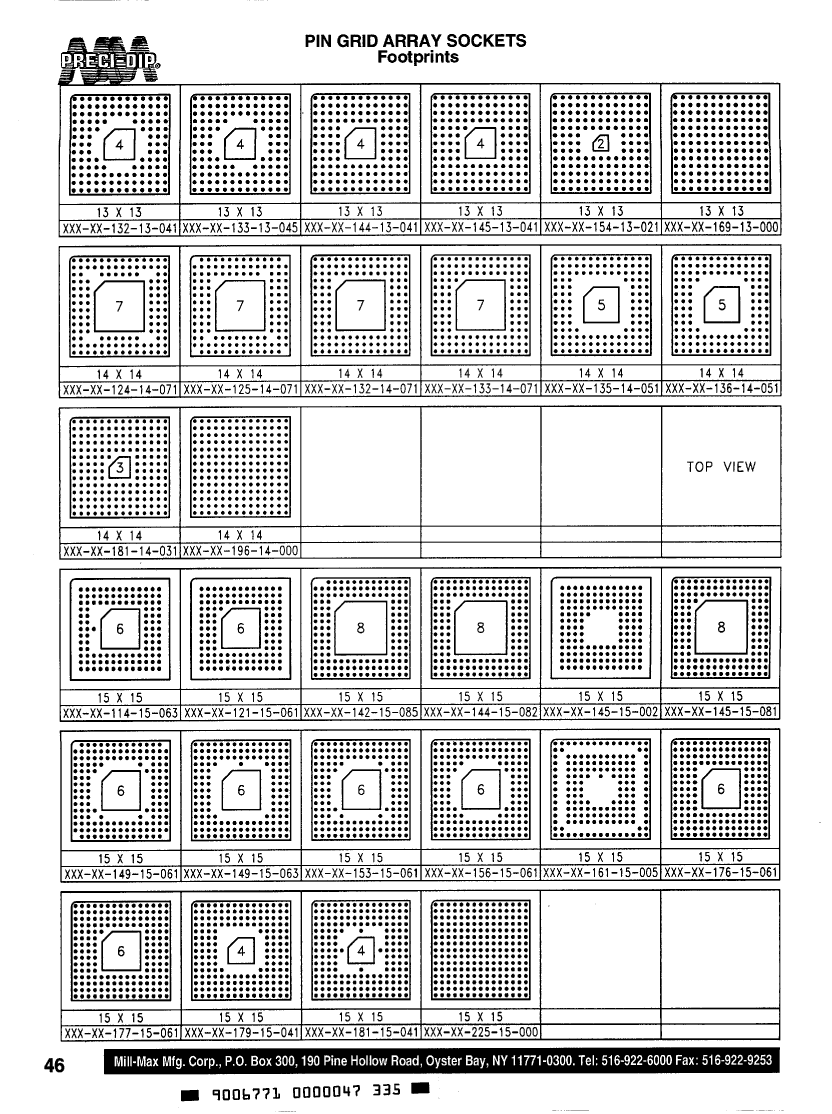

PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
