Single Digit High Brightness LED Numeric Display
LAP-601 B / L Series
SIM-013STW1
Datasheet
LAP-601 B / L series are the numberical display units featuring ROHM’s in-house 4-element(AlGaInP)
high-brightness LED dies.Their luminous intensity is top class in the industry
while degradation is considerably slow, which helps to keep illumination vividness almost unchanged
and the image of sets high over a long period of time.
lFeatures
1) 14.6mm for letter height, single-line LED numerical displays.
2) About 10 times more luminous intensity than the conventional products
by use of 4-element LED dies. (in case of orange color)
3) The same luminous intensity as the conventional products at their 1/10 of current,
which contributes lots to energy-saving of sets.
4) Light-leakage from segments probable with the small display packages is very rare.
5) Both anode common type and cathode common type are available in lineup for each color.

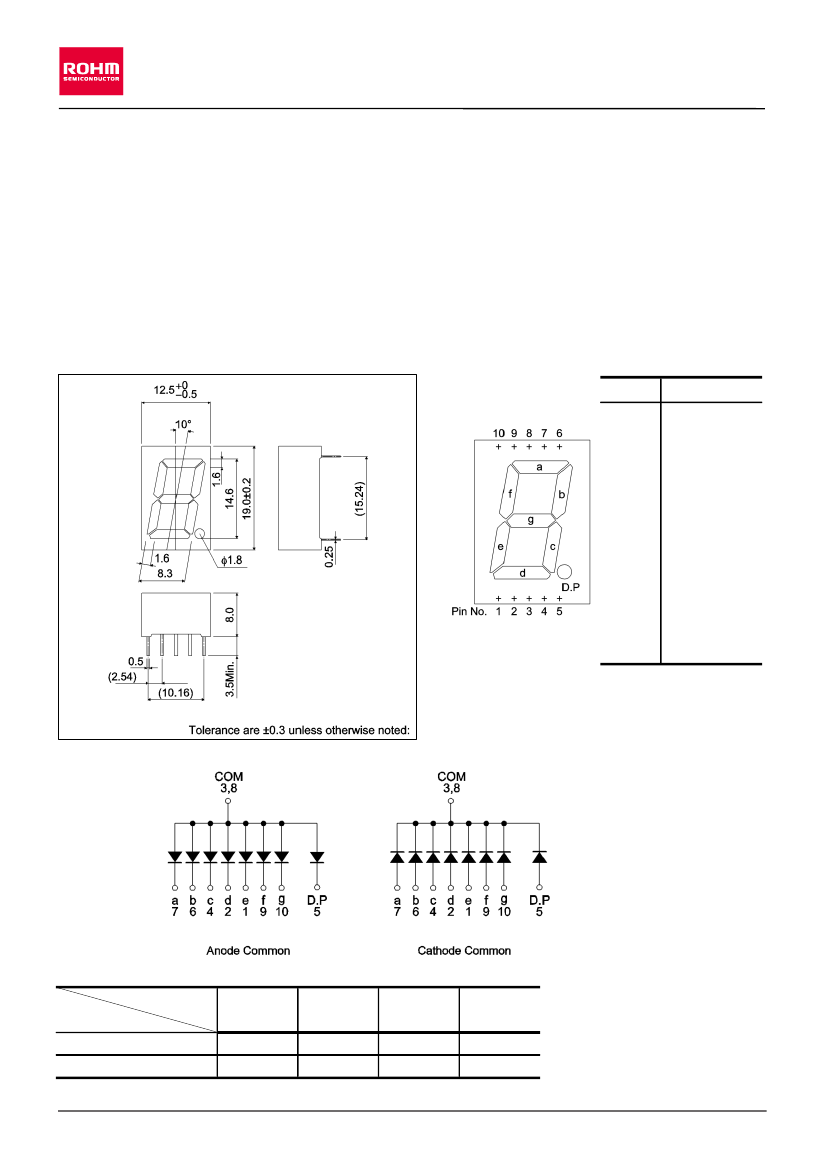

lDimensions
(Unit : mm)
lPin
assignments
Pin No.
1
2
3
4
5
6
7
8
9
10
Function
Segment "e"
Segment "d"
Common
Segment "c"
D.P
Segment "b"
Segment "a"
Common
Segment "b"
Segment "g"
lInternal
circuit schematic
lSelection
guide
Emitting color
Red
Orange
Yellow
Green
Common
LAP-601VB
LAP-601DB
LAP-601YB
LAP-601MB
Anode
LAP-601VL
LAP-601DL
LAP-601YL
LAP-601ML
Cathode

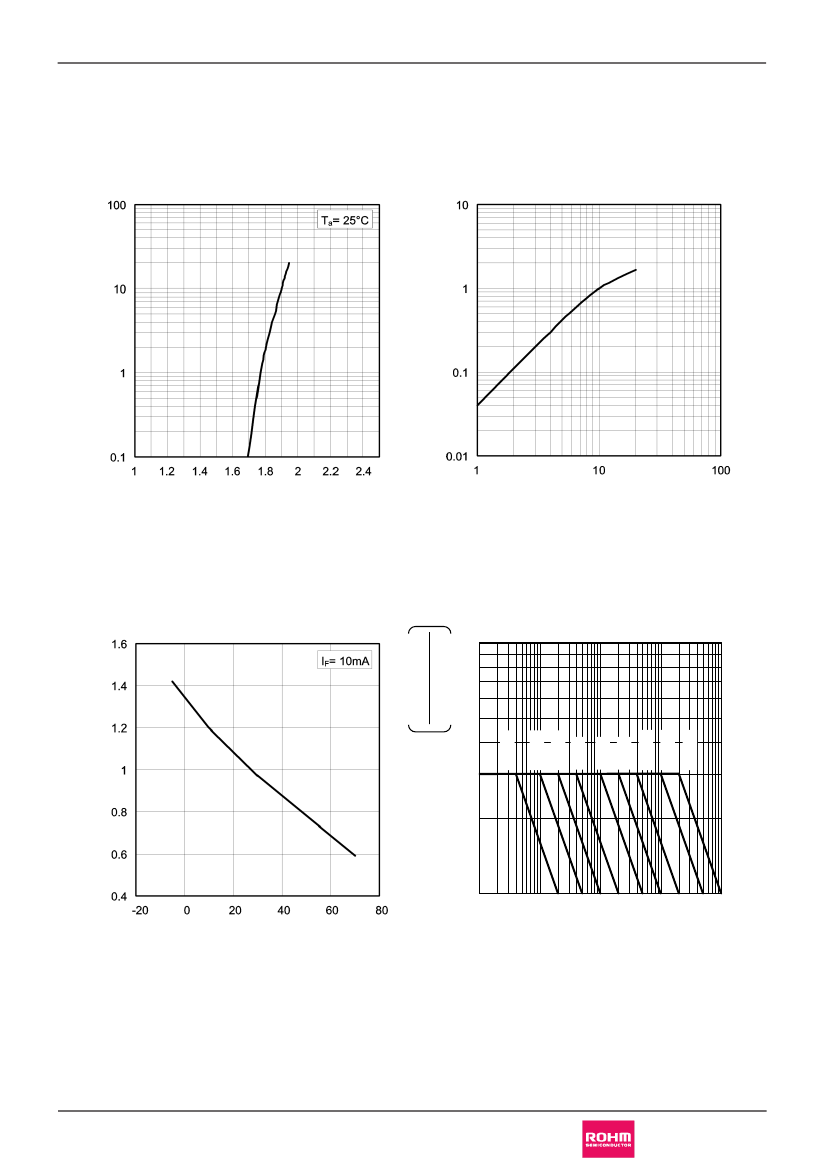

www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
1/4
2017.03 - Rev.B
