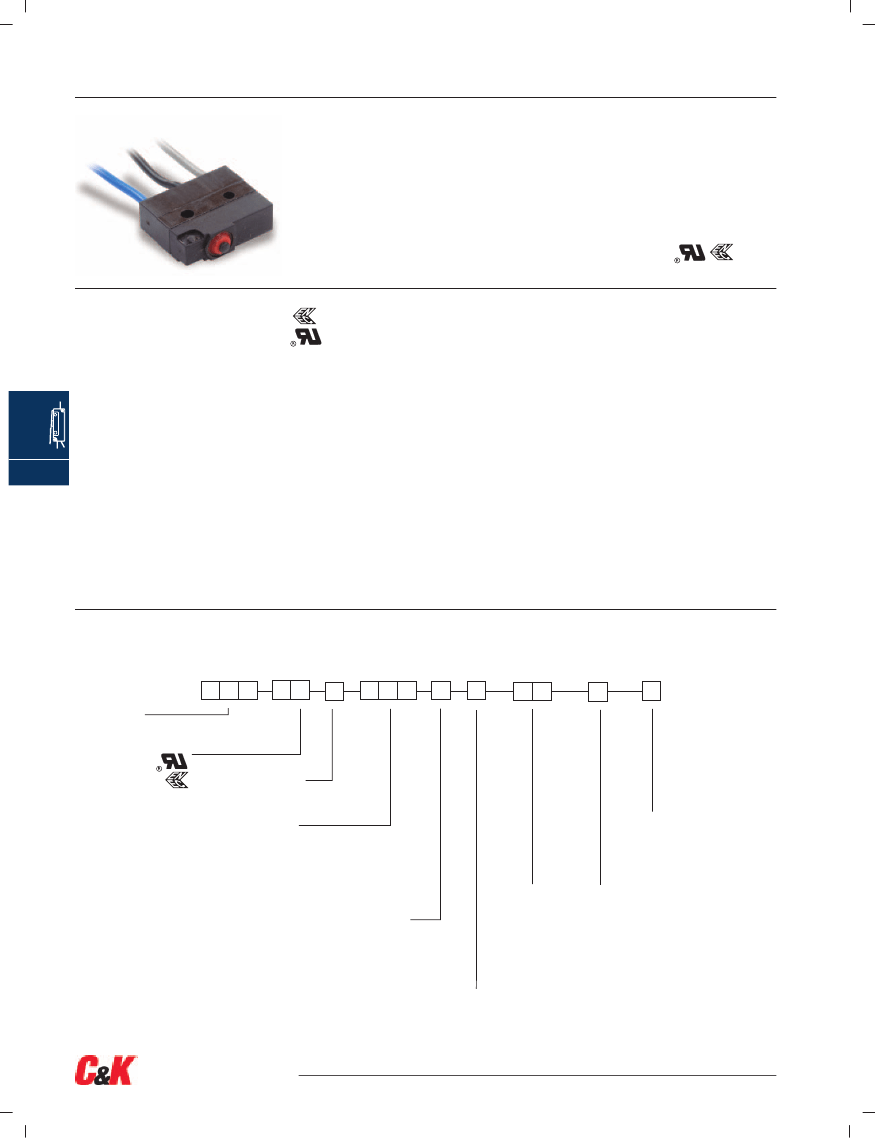

LCS Series
Subminiature Sealed Snap-acting Switches
Features/Benefits
•
Compact design
•
Long life and high electrical capacity
•
Quick connect, solder terminals,
PC terminals, wire leads
•
Wide variety of actuator styles
•
RoHS compatible, RoHS compliant
•
IP67
Specifications
CONTACT RATING: 6 AMP, 250 V AC and
5 AMP, 125/250 V AC
0.1 AMP, 125/250 V AC
ELECTRICAL LIFE: 10,000 cycles
INSULATION RESISTANCE: 100 M ohm min.
DIELECTRIC STRENGTH: 1,000 VAC
OPERATING TEMPERATURE:
0ºC to +120ºC (without wire)
0ºC to +85ºC (with UL1007 wire)
0ºC to +105ºC (with UL1015 wire)
0ºC to +105ºC (with UL1430 wire)
0ºC to +80ºC (with UL1061 wire)
0ºC to +120ºC (with UL1330 wire)
OPERATING FORCE: (see ACTUATOR’S option sections).
MOUNTING: 2-56 screws, torque 2.3 in/lbs max.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service center.
14
Typical Applications
•
Motorized equipment
•
Sump pump
•
Thermostatic controls
•
Computers
•
Air conditioners
14
Models Available
Materials
SWITCH HOUSING: Thermoplastic polyester or high temperature
thermoplastic (PTS) (UL 94V-0).
ACTUATOR BUTTON: Thermoplastic polyester.
SPRING: Copper alloy.
PIVOT: Copper alloy.
MOVABLE CONTACTS: Silver nickel
STATIONARY CONTACTS: Silver nickel on copper alloy.
TERMINALS: Copper alloy.
ACTUATOR LEVEL: Stainless steel.
J
Snap-acting
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages J-27 thru J-29. For additional options not shown in catalog, consult Customer Service Center.
L
Series
LCS
Contact Rating
05
5 AMP, 125/250 V AC
6 AMP, 250 V AC
01
0.1 AMP, 125/250 V AC
C
S
14
Operating Force
1
150 grams
2
203 grams

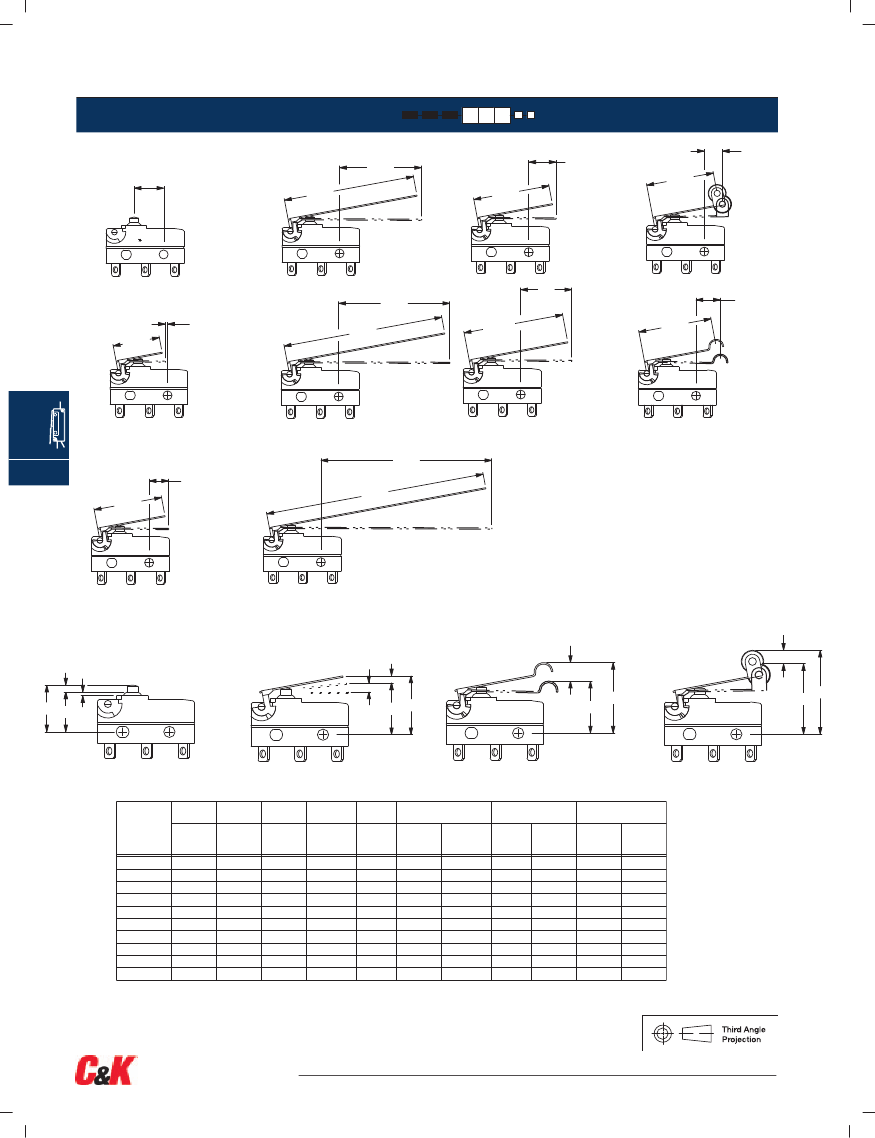

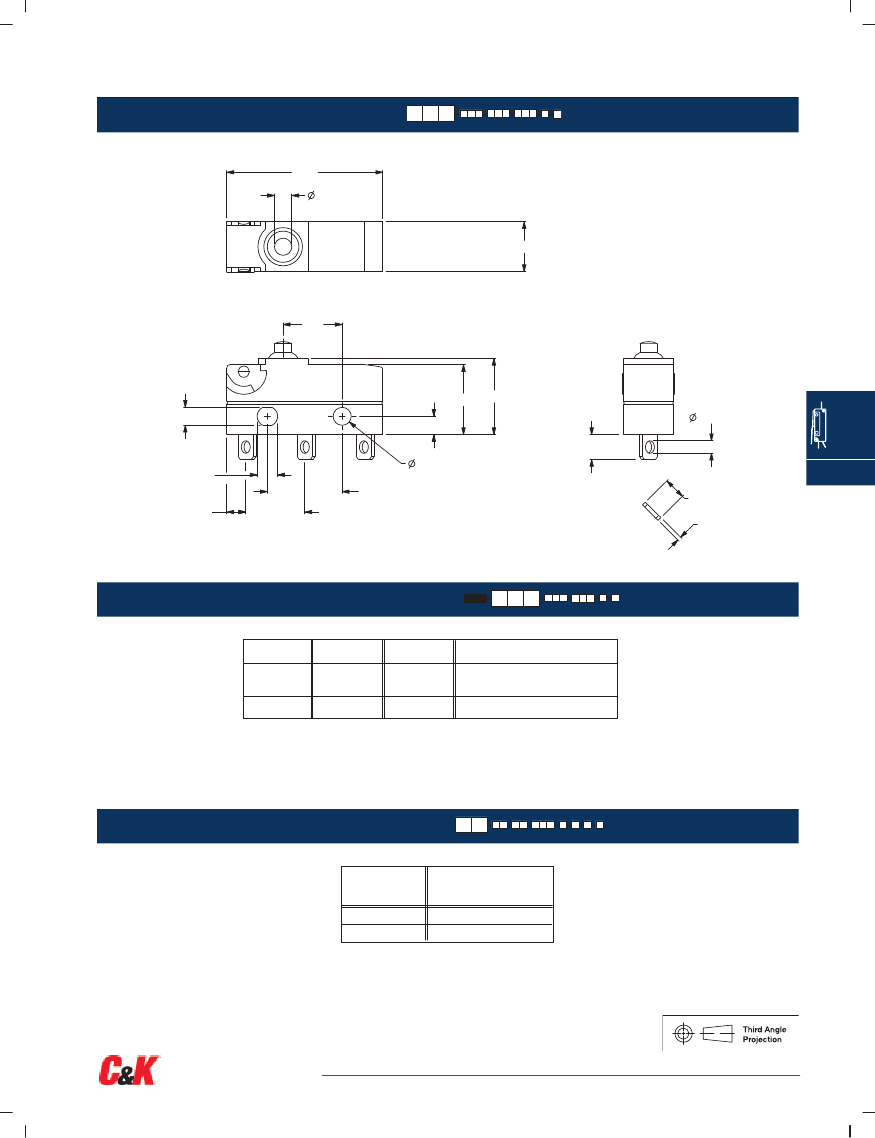

Actuator
P00
Pin plunger
T00
11.9 mm short lever
T05
17.4 mm short lever
T07
19.4 mm short lever
T13
25.5 mm lever
T19
33.3 mm lever
T28
40.7 mm lever
T43
55.9 mm lever
S26
18.6 mm simulated lever
A05
17.2 mm lever roller
Circuitry
C
SPDT
W
SPST N.C.
Y
SPST N.O.
Wire Type AWG
20
20 AWG
22
22 AWG
24
24 AWG
26
26 AWG
28
28 AWG
30
30 AWG
Wire UL #
(when required)
A
UL1007
B
UL1015
C
UL1430
D
UL1061
E
UL1330
Terminations
S
Solder
Q
0.110 Quick Connect
P
PC Thru Hole
W
Wire leads potted
Z
Wire leads non-potted
Wire Side (when required)
A
Wire out the bottom
B
Wire out the right side
C
Wire out the left side
D
None
Dimensions are shown: mm
Specifications and dimensions subject to change
J–26
www.ck-components.com
LCS Series
Subminiature Sealed Snap-acting Switches

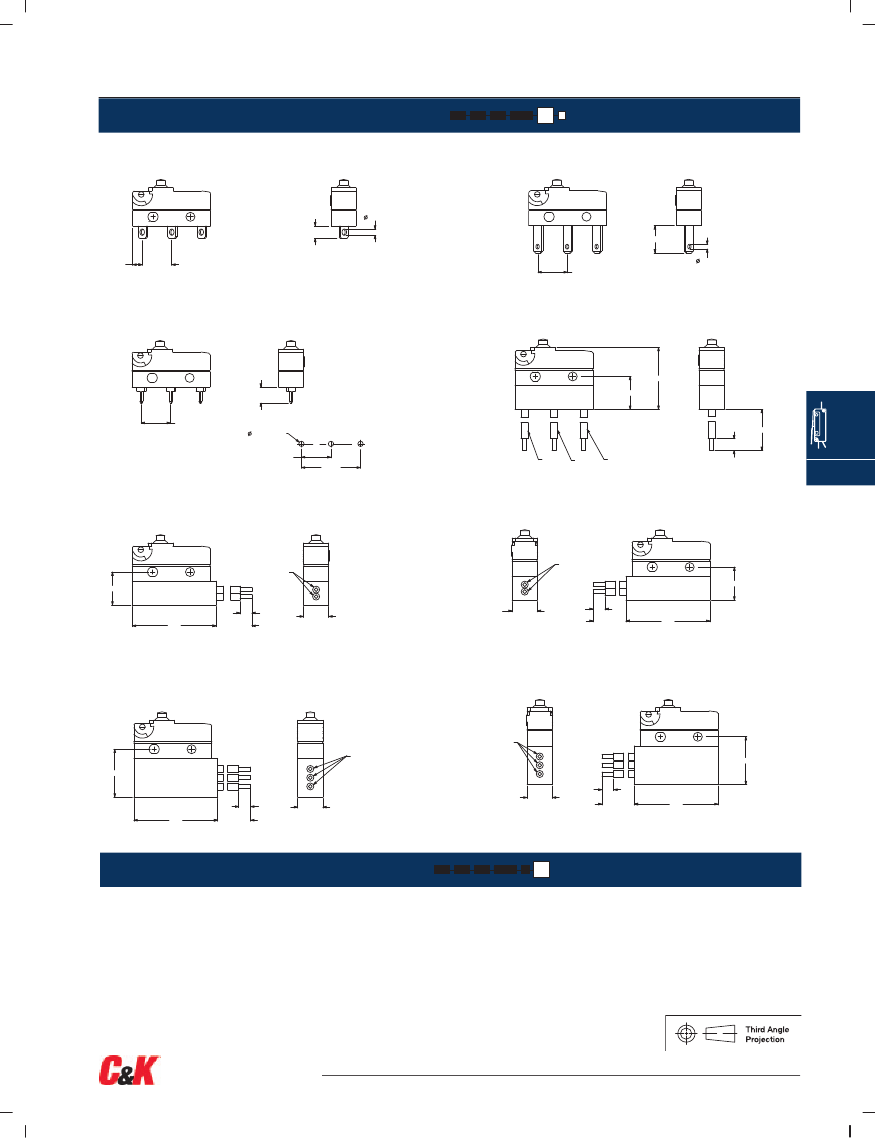

TERMINATIONS
S
SOLDER
Q
QUICK CONNECT 2.8mm / 0.110”
1.6 TYP
3.2 TYP
6.95
1.2 TYP
7.5 ± 0.1 TYP
2.4
7.5 ± 0.2 TYP
P
PC THRU HOLE
Z or W
“A” WIRE ORIENTATION
15.95
4.00 TYP
7.5 ± 0.2 TYP
3X 1.35 /1.5
3±1
7.5 ± 0.1 TYP
15±0.1
C: BLACK
NO: BLUE NC: GRAY
RECOMENDED
MOUNTING PATTERN
8.5
304.8
± 6.4
J
Snap-acting
Z or W
“B” WIRE ORIENTATION
“Y” OR “W” CIRCUITRY
Z or W
“C” WIRE ORIENTATION
“Y” OR “W” CIRCUITRY
BLACK COM
BLUE NO
8.5
3±1
21.3
12±0.1
6.4
BLACK COM
BLUE NO
8.5
3±1
12± 0.1
21.3
6.4
Z or W
“B” WIRE ORIENTATION
“C” CIRCUITRY
Z or W
“C” WIRE ORIENTATION
“C” CIRCUITRY
12.3
BLACK COM
GRAY NC
BLUE NO
BLACK COM
GRAY NC
BLUE NO
12.3
3±1
6.4
3±1
21.3
12±0.1
6.4
12 ± .1
21.3
CIRCUITRY
C
W
Y
SPDT (Single Pole, Double Throw)
SPST N.C. (Single Pole, Single Throw, Normally Closed)
SPST N.O. (Single Pole, Single Throw, Normally Open)
Dimensions are shown: mm
Specifications and dimensions subject to change
J–29
www.ck-components.com
